Product Information

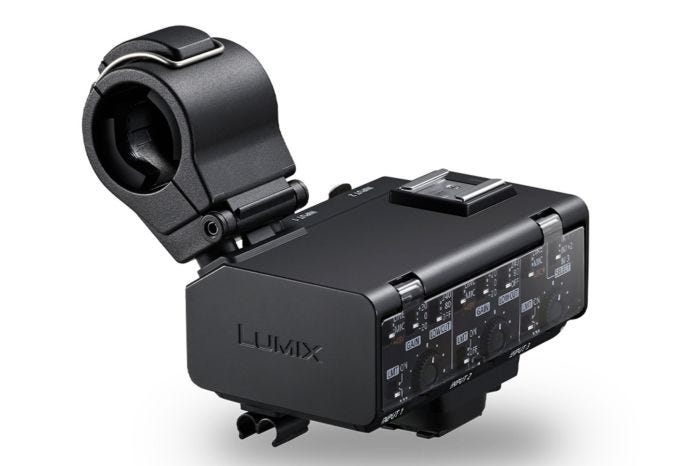

Panasonic DMW-XLR2E Microphone Adaptor
Enhance your audio recording capabilities with the XLR Microphone Adaptor DMW-XLR2, designed for 4-channel and high-resolution sound recording with 32-bit float capability.
Perfectly compatible with the LUMIX GH7, this adaptor features physical switches and dials for easy control, a Φ3.5 stereo mini jack, and a built-in microphone holder, making it an essential tool for professional-grade audio recording.
XLR microphone adaptor for high-resolution audio recording, 4-channel audio recording* and 32-bit float recording*. Compatible with the LUMIX GH7 (DC-GH7) and the LUMIX GH6 (DC-GH6)**.
32-bit Float Recording*
The camera delivers 32-bit float recording, improving the quality and efficiency of the entire workflow. With its wide dynamic range, the 32-bit float format records more information, from quiet to loud sounds. As a result, there is no need for tedious sound level adjustments during audio recording. Video and music can be managed in a single file, making post-production much more efficient.
*LUMIX GH6 does not support float recording and 4-channel audio recording with just a microphone connected to this unit.
**Please update the firmware to version 3.0.
- Cable Holder
- Microphone Holder
- Pouch
| INPUT1 / INPUT2 | |
|---|---|
| Input Terminal | XLR 3-pin (female) |
| Standard Input Level | LINE: 0 dBu MIC, +48V: -40 dBu (0 dBu=0.775 Vrms) |
| Standard Recording Level | -12 dBFS (at the standard input) |
| Frequency Characteristic | 20Hz to 40kHz, +1/-1 dB (during Fs=96kHz, during LINE) |
| Phantom Power Source | 48V |
| INPUT3 | |
| Input Terminal | 3.5mm stereo mini jack |
| Standard Input Level | LINE: -10 dBV MIC, MIC (plug-in power): -40 dBV (0 dBV=1 Vrms) |
| Plug-in Power | 2.5V |
| Sampling Frequency Bit Length / Number of Recording Channels | |
| Linear Recording | 48kHz/24-bit/2ch, 96kHz/24-bit/2ch (Select one of INPUT1, INPUT1+2, or INPUT3) 48kHz/24-bit/4ch |
| Float Recording | 48kHz/32-bit/2ch, 96kHz/32-bit/2ch (Select one of INPUT1, INPUT1+2, or INPUT3) 48kHz/32-bit/4ch |
