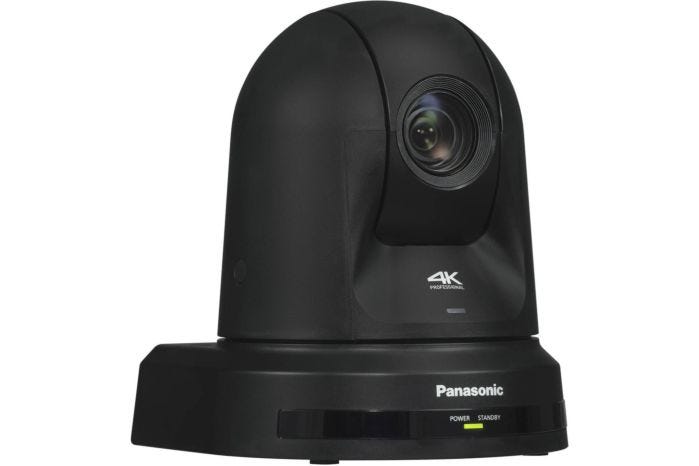

Panasonic UE30 4K30 HDMI PTZ Camera with 20x Optical Zoom
Availability:In stock
Cat No.
83576
SKU
AW-UE30
Product Information
Panasonic UE30 4K30 HDMI PTZ Camera with 20x Optical Zoom
The AW-UE30 4K PTZ supports both HDMI and IP which makes it an ideal option for using within existing HD or 4K workflows thanks to its simultaneous video output feature. It also features a wide-angle lens with a 74.1° field of view and a 20x optical zoom, enabling a wide area to be shot from a limited installation space, in addition to maintaining high image quality at high zoom ratios. This allows shooting in large indoor spaces.
The UE30 features a compact design to easily blend in with its surroundings and to operate quietly for flexible usage in any video shooting location or condition. It is easy to install and to operate to ensure the capture of stable images, so even people unfamiliar with video shooting or camera operation can use this PTZ camera. It is possible to link it to online conference software or online applications, so online video streaming is easy to initiate. It also features PoE+ support for camera power, control, and video transmission over a single cable. Optical Image Stabilisation (OIS) has been added to the camera to ensure smooth pan-tilt movement even in busier environments or when placed onto a robotic system for example.
The camera’s built-in auto-tracking function allows capturing a moving presenter and speaker. The camera follows the speaker without the need for an operator, allowing for realistic video shooting at any time.
The AW-UE30 is compatible with Panasonic’s entire ecosystem of solutions. This includes usage with remote camera controllers, the Media Production Suite software platform, and its optional Auto-Tracking software for presentations, lectures, or similar.
When using the free-to-download PTZ Virtual USB driver software and a LAN connection, it is possible to obtain video and audio from the UE30 in the same way you would when using an USB camera.
There is a wide variety of IP transmission protocols available. Out of the box, Secure Reliable Transport (SRT) is supported to maintain stability while transmitting high-quality video, even in unstable network environments. SRT allows video distribution over public internet in a secure and reliable way, as it offers encryption and as lost packets are automatically detected and resent.
RTMP/RTMPS* provides direct streaming to live broadcasting services such as YouTube Live and Facebook Live from the camera directly. (RTMP: Real-Time Messaging Protocol, RTMPS: Real-Time Messaging Protocol Secure.)
- 1/2.5-type 4K MOS sensor, 74.1° field of view and 20x Optical Zoom
- Built-in Auto Tracking Function
- Direct Drive System for improved responsiveness and quietness
- Image stabilizer for stable video shooting
- Excellent system flexibility to achieve smart wiring and smooth operation
| GENERAL | |
|---|---|
| Power Requirements | 12 V DC (10.8 V to 13.2 V) (Supplied AC adapter) |
| PoE+ | |
| IEEE802.3at compliant | DC42 to 57 V (Camera Input)(Software authentication (LLDP) is supported) |
| Current Consumption | 1.8 A (Supplied AC adaptor), 0.6 A (PoE+ power supply) |
| Ambient Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Ambient Operating Humidity | 20 ％ to 90 ％ (no condensation) |
| Storage Temperature | -20 °C to 50 °C (-4 °F to 122 °F) |
| Mass | Approx. 1.8 kg (3.97 lbs) (excluding ceiling mounting bracket) |
| Approx. 2.05 kg (4.51 lbs) (including ceiling mounting bracket) | |
| Dimensions (W x H x D) (mm) | 160.0 mm x 192.1 mm x 166.0 mm (Excluding protrusions, cable cover, ceiling mounting bracket) |
| Dimensions (W x H x D) (inch) | 6.299 inches x 7.563 inches x 6.535 inches (Excluding protrusions, cable cover, ceiling mounting bracket) |
| Finish | |
| AW-UE40W | White |
| AW-UE40K | Black |
| Controller Supported | AW-RP150GJ, AW-RP60GJ, AW-RM50AG |
| Camera Unit | |
| Imaging Sensors | 1/2.5-type 4K MOS x1 |
| Lens | Motorized Optical 20x zoom, F1.8 to F3.9 [f=4.12 mm (5/32 inches) to 82.4 mm (3‑1/4 inches); 35 mm (1‑3/8 inches) equivalent: 25.0 mm (31/32 inches) to 500.0 mm (19‑11/16 inches)] |
| Zoom | |
| Optical zoom | 20x |
| i.Zoom | UHD 23x, FHD 30x |
| Digital extender zoom | 1.4 x , 2 x |
| Conversion Lens | Not supported |
| Angle of View Range | Horizontal angle of view: 74.1° (wide) to 4.0° (tele) Vertical angle of view: 46.0° (wide) to 2.2° (tele) Diagonal angle of view: 81.8° (wide) to 4.5° (tele) |
| Optical Filter | |
| Focus | Switching between auto and manual |
| Focus Distance | Entire zooming range: 1200 mm (3.9 ft) |
| Wide end | 100 mm (0.33 ft) |
| Colour Separation Optical System | 1MOS |
| Minimum Illumination | 3 lx (F1.8, 59.94p, 50IRE, 42 dB, without accumulation) |
| Horizontal Resolution | UHD: 1,500 Typ (Center area)FHD: 1,000 Typ (Center area) |
| Gain Selection | Auto, 0 dB to 36 dB*1 (Super Gain function equipped : 37 dB to 42 dB) |
| Frame Mix | Auto, 0 dB, 6 dB, 12 dB, 18 dB, 24 dB*2 |
| Electronic Shutter Speed | |
| Electronic Shutter Speed 59.94p/59.94i | 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 |
| Electronic Shutter Speed 29.97p | 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 |
| Electronic Shutter Speed 50p/50i | 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 |
| Electronic Shutter Speed 25p | 1/25, 1/50, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 |
| Syncro Scan | |
| Synchro Scan 59.94p/59.94i | 60.0 Hz to 7200 Hz |
| Synchro Scan 23.98p/24p | 24.0 Hz to 7200 Hz |
| Synchro Scan 50p/50i | 50.0 Hz to 7200 Hz |
| Synchro Scan 25p | 25.0 Hz to 7200 Hz |
| Gamma | HD / Normal / Cinema1 / Cinema2 / Still Like |
| White Balance | |
| ATW | 3200 K, 5600 K (ATW Speed 3-stage variables.) |
| AWB | AWB-A / AWB-B |
| VAR | selectable between 2000 K and 15000 K by designating a value |
| Chroma Amount Variability | OFF, -99 ％ to 99 % |
| Output Format | |
| Output Format HDMI 4K | 2160/29.97p (Native), 2160/25p (Native), 2160/24p (Just), 2160/23.98p (Native) |
| Output Format HDMI HD | 1080/59.94p, 50p, 1080/59.94i, 50i, 1080/29.97p (Native), 25p (Native), 23.98p (over59.94i), 1080/24p (Just), 23.98p (Native), 720/59.94p, 50p |
| Input | |
| Input Connector | DC 12 V IN |
| Video Output | |
| Video Output HDMI | HDMI 1.4 connector, 4:2:2/10bit |
| HDCP is not supported. | |
| Viera Link is not supported. | |
| Input/Output | |
| Input/Output Connector | LAN terminal for IP control (RJ-45) |
| CONTROL IN RS422A (RJ-45) | |
| MIC/Line Input | AAC compatibility (compatible with IP only) |
| 3.5 mm stereo mini jack | |
| During MIC input Input level: -40 dBV (0 dB=1 V/Pa, 1 kHz) Supply voltage: 2.5 V±0.5 V (plug-in power compatible) | |
| Input impedance: Approx. 2 kΩ (when plug-in power is turned ON) Approx. 20 kΩ (when plug-in power is turned OFF)" | |
| During LINE input Input level: -10 dBV Input impedance: Approx. 3 kΩ | |
| Input volume variable range: -36 dB to 12 dB (3 dB step) | |
| Embedded audio output level: -12 dBFS | |
| Sampling frequency: 48 kHz | |
| Camera/Pan-Tilt Head Control | |
| IP Connecting Cable | If you have a PoE+ ethernet hub LAN cable*3 (category 5e or above, straight cable) Max 100 m (328 ft) • If you don't have a PoE+ ethernet hub LAN cable*3 (category 5e or above, straight cable) Max 100 m (328 ft) |
| AW Protocol Connecting Cable | LAN cable*3 (category 5e or above, straight cable) Max 1000 m (3280 ft) |
| Installation Method | Stand-alone (Desktop) or suspended (Hanging)*4 |
| Pan/Tilt Operation Speed | Speed range: 0.08°/s to 60°/s (Normal mode)*5 |
| 3 speed modes installed Normal:60°/s, Fast1:90°/s, Fast2:180°/s | |
| Panning Range | ±175° |
| Tilting Range | -30°to 90°*6 |
| Quietness | NC25 or less |
| Supported operating systems and web browsers*7 | |
| Windows | Windows 10 Windows® Internet Explorer® 11 (32 bit / 64 bit) Microsoft Edge Google Chrome |
| Mac | Mac OS v11.0.1 / Safari 14.01 Mac OS v11.0.1 / Google Chrome Mac OS v10.15 / Google Chrome Mac OS v10.14 / Google Chrome |
| iPhone / iPad | iOS Safari iPadOS |
| Android | Android OS Google Chrome |
| IP Streaming | |
| Image Streaming Mode | JPEG (MJPEG), H.264, H.265, |
| Image Resolution | 1920x1080, 1280x720, 640x360, 320x180 |
| Image Transmission setting (JPEG) | Frame rate: Maximum 30fpsImage quality (Fine / Normal) |
| Image Transmission Setting (H.264) | Transmission Type: Unicast port (AUTO), Unicast port (MANUAL), Multicast port Transmission Priority: Constant bit rate, Frame rate, Best effort Frame Rate: [60 Hz] 5fps / 15fps / 30fps / 60fps, [50 Hz] 5fps / 12.5fps / 25fps / 50fps Max Bit Rate: 512kbps / 768kbps / 1024kbps / 1536kbps / 2048kbps / 3072kbps / 4096kbps / 6144kbps / 8192kbps / 10240kbps /12288kbps / 14336kbps / 16384kbps / 20480kbps / 24576kbps |
| Image Transmission Setting (H.265) | Transmission Type: Unicast port (AUTO), Unicast port (MANUAL), Multicast port Transmission Priority: Constant bit rate, Frame rate, Best effort Frame Rate: [60 Hz] 30fps / 60fps, [50 Hz] 25fps / 50fps Max Bit Rate: 512kbps / 768kbps / 1024kbps / 1536kbps / 2048kbps / 3072kbps / 4096kbps / 6144kbps / 8192kbps / 10240kbps /12288kbps / 14336kbps / 16384kbps / 20480kbps / 24576kbps |
| Audio Compression Type | AAC-LC, 48 kHz / 16 bit / 2ch |
| Supported Protocol | |
| IPv6 | TCP/IP, UDP/IP, HTTP, HTTPS, DNS, NTP, DHCPv6, RTP, MLD, ICMP, ARP, RTMP, SRT |
| IPv4 | TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, DHCP, DNS, DDNS, NTP, IGMP, ICMP, ARP, RTMP, RTMPS, SRT |
| New Functions | |
| F-Number Display | Displayed on the AW-RP150GJ and AW-RP60GJ sides |
| Menu Display on IP Video | Supported*9 |
| Power LED | ON/OFF control |
| Tripod Screw Penetration Measures | Possible |
| Pan/Tilt Mechanical Method | New Direct Drive System |
| Image Stabilization | OIS 2-axis MENU switching: Select between Off/O.I.S. |
| Privacy Mode | The lens surface faces backward when standing by (ON/OFF) * Default is OFF |
| Other Functions | |
| Tally LED display colour | red / green |
| Note | *1:Can be set in 1 dB step increments. |
| *2:Cannot be set when the format is 2160/29.97p, 2160/23.98p, 2160/24p, 2160/25p, 1080/29.97p, 1080/23.98p (59.94i), 1080/29.97PsF, 1080/23.98PsF, 1080/25p, 1080/25PsF. | |
| *3:STP (Shielded Twisted Pair) is recommended. | |
| *4:To ensure safety, the unit must be secured using the mount bracket supplied. | |
| *5:Note that the operating noise may be loud in high speed. If the operating noise is disturbing, use the Normal mode. | |
| *6:The main unit may appear in the video depending on the pan/tilt position. | |
| *7:Supported OS indicated are for browsers current as of September 2021. See "Service and Support / PASS” for the latest information on browser support. | |
| *8:NDI® is a registered trademark of Vizrt NDI AB in the United States and other countries. | |
| *9:Non-synchronous with SDI-OUT |
