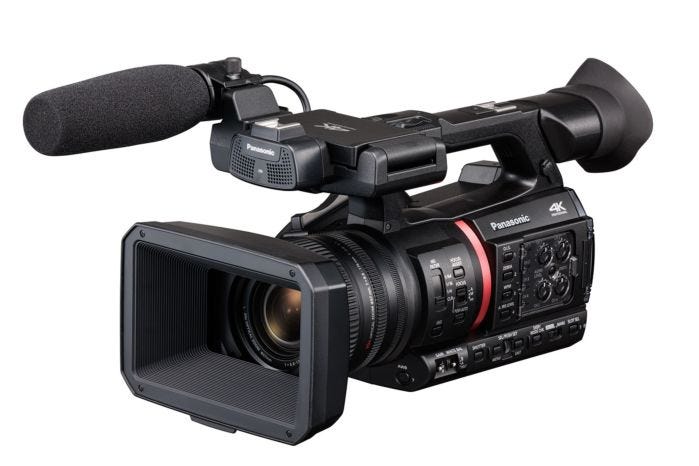

Panasonic AG-CX370EJ Camcorder

Image Sensor

1.0-type (effective size) MOS solid state image sensor

Number of Pixels

15,030,000 pixel

Lens

Optical image stabilizer lens, optical 20x motorized zoom

F value: F2.8 to F4.5

Focal length

f=8.8 mm to 176 mmm, 35 mm equivalent: 24.5 mm to 490 mm

Filter Diameter

67 mm

Shortest Shooting Distance(M.O.D.)

Approx. 10 cm (W), 1.0 m (T) from the front lens

ND Filter

Clear, 1/4, 1/16, 1/64

IR Filter

Incorporates the ON/OFF control function

Gain Setting

L/M/H selector switch

GAIN/ISO mode = dB

–3 dB to 18 dB (adjustable in 1 dB steps)

24 dB, 30 dB, 36 dB switched

(when assigning [S. GAIN] to the USER button)

GAIN/ISO mode = ISO

ISO 400, ISO 500, ISO 640, ISO 800, ISO 1000, ISO 1250, ISO 1600, ISO 2000, ISO 2500,

ISO 3200, ISO 4000, ISO 5000, ISO 6400, ISO 8000, ISO 10000, ISO 12800

Colour Temperature Setting

ATW, ATW LOCK, A ch, B ch,

preset 3200 K/preset 5600 K/VAR (2000 K to 15000 K)

Shutter Speed

[59.94 Hz] 59.94i/59.94p mode 1/60 sec. (shutter off), 1/100 sec., 1/120 sec.,

1/250 sec., 1/500 sec., 1/1000 sec.,1/2000 sec., 1/4000 sec., 1/8000 sec., 1/10000 sec.

[50.00 Hz] 50i/50p mode 1/50 sec. (shutter off), 1/60 sec., 1/100 sec., 1/120 sec.,

1/250 sec., 1/500 sec.,1/1000 sec., 1/2000 sec., 1/4000 sec., 1/8000 sec., 1/10000 sec.

[59.94 Hz] 29.97p mode 1/30 sec., 1/50 sec. (shutter off), 1/60 sec., 1/100 sec., 1/120 sec.,

1/250 sec.,1/500 sec., 1/1000 sec., 1/2000 sec., 1/4000 sec., 1/8000 sec., 1/10000 sec.

[50.00 Hz] 25p mode 1/25 sec., 1/50 sec. (shutter off), 1/60 sec., 1/100 sec., 1/120 sec.,

1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec., 1/4000 sec., 1/8000 sec., 1/10000 sec.

[59.94 Hz] 23.98p mode 1/24 sec., 1/48 sec., 1/50 sec. (shutter off), 1/60 sec., 1/100 sec.,

1/120 sec.,1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec., 1/4000 sec., 1/8000 sec., 1/10000 sec.

Synchro Scan Shutter

[59.94 Hz] 59.94i/59.94p mode 1/60.0 sec. to 1/7200 sec.

[50.00 Hz] 50i/50p mode 1/50.0 sec. to 1/7200 sec.

[59.94 Hz] 29.97p mode 1/30.0 sec. to 1/7200 sec.

[50.00 Hz] 25p mode 1/25.0 sec. to 1/7200 sec.

[59.94 Hz] 23.98p mode 1/24.0 sec. to 1/7200 sec.

Shutter Speed (Slow Shutter)

[59.94 Hz] 59.94i/59.94p mode 1/1 sec., 1/2 sec., 1/4 sec., 1/6 sec., 1/15 sec., 1/30 sec.

[50.00 Hz] 50i/50p mode 1/1 sec., 1/2 sec., 1/4 sec., 1/6 sec., 1/12 sec., 1/25 sec.

[59.94 Hz] 29.97p mode 1/1 sec., 1/2 sec., 1/4 sec., 1/6 sec., 1/15 sec.

[50.00 Hz] 25p mode 1/1 sec., 1/2 sec., 1/4 sec., 1/6 sec., 1/12 sec.

[59.94 Hz] 23.98p mode 1/1 sec., 1/2 sec., 1/4 sec., 1/6 sec., 1/15 sec., 1/30 sec.

Shutter Open Angle

3.0 deg to 180.0 deg to 360.0 deg (in 0.5 deg steps)

VFR Recording Frame Rate

[59.94 Hz] 59.94i/59.94p mode

1, 2, 4, 6, 9, 12, 15, 18, 20, 21, 22, 24, 25, 26, 27, 28, 30, 32, 34, 36, 40, 44, 48, 54, 60 (fps)

[50.00 Hz] 50p mode 1, 2, 4, 6, 9, 12, 15, 18, 20, 21, 22, 23, 24, 25, 26, 27, 28, 30, 32, 34, 37, 42, 45, 48, 50 (fps)

Super Slow Recording

[SYSTEM MODE] 59.94 Hz 1920 x 1080 (FHD): shooting frame rate 120 fps

[SYSTEM MODE] 50.00 Hz 1920 x 1080 (FHD): shooting frame rate 100 fps

Horizontal Resolution

2000 TV or higher (UHD: center) 1000 TV or higher (FHD: center)

i.Zoom

x32 (FHD), x24 (UHD)

Digital Zoom

x2/ x5/ x10

Lens Hood

Hood with lens cover

Recording Media

SDHC memory card, SDXC memory card

UHS-I/UHS-II UHS Speed Class 3 supported,

Video Speed Class V90 supported

Please see the "Available Memory Card" table.

Recording Slot

SDXC UHS-II card slot x 2*2

Recording Pixels

3840 × 2160 (UHD), 1920 × 1080 (FHD), 1280 × 720 (HD) (AVC-Intra50: 1440 × 1080, 960 × 720)

System Frequency

59.94 Hz/50.00 Hz

Recording File Format

MOV (AVC), MOV (HEVC), AVCHD, P2 MXF

2 Slot Functions

Relay Rec, Simultaneous Rec, Background Rec

Special Recording Functions

Pre Rec, Interval Rec, Time Stamp

Video Compression Format

P2: AVC-Intra200 MPEG-4 AVC/H.264 Intra Profile

P2: AVC-Intra100/AVC-Intra50 MPEG-4 AVC/H.264 Intra Profile

P2: AVC-Intra422/AVC‑LongG50/AVC‑LongG25/ AVC‑LongG12 MPEG-4 AVC/H.264 High Profile

MOV H.264/MPEG-4 AVC High Profile, H.265/MPEG-H HEVC Main10 Profile

Headroom

12 dB/18 dB/20 dB switchable (menu)

File Format

MOV

Video Compression Format

H264/AVC High Profile

AAC-LC

Recording Time

Approx. 13 min. per 1 GB of AVC-G6 2CH MOV

*These are reference values for continuous recording using the Panasonic products.

The recording time may differ depending on the scene or the number of clips.

Video Compression Format

H.264/MPEG-4 AVC Main Profile,

H.264/MPEG-4 AVC High Profile

Video Resolution

3640 x 2160 (UHD), 1920 x 1080 (FHD), 1280 x 720 (HD), 640 x 360, 360 x 180

Streaming Method

Unicast, Multicast

Frame Rate

System frequency 59.94 Hz: 24 fps, 30 fps, 60 fps

System frequency 50.00 Hz: 25 fps, 50 fps

Bit Rate

3640 x 2160 (UHD): 75 Mbps, 50 Mbps, 25 Mbps, 12 Mbps, 8 Mbps

Other than those above: 24 Mbps, 20 Mbps, 16 Mbps, 14 Mbps, 8 Mbps, 6 Mbps,

4 Mbps, 3 Mbps, 2 Mbps, 1.5 Mbps, 1 Mbps, 0.7 Mbps, 0.5 Mbps

Audio Compression Format

AAC-LC, 48 kHz/16 bit, 2 ch

Network Protocol

RTSP/RTP/RTMP/RTMPS/SRT

Video Output

SDI OUT BNC x 1, SDI REC REMOTE supported

4K(12G/6G), HD (3G/1.5G) 0.8 V [p-p], 75 Ω,

Output format (4:2:2 10 bit):

1920 x 1080: 59.94p, 50p, 59.94i, 50i, 29.97Psf, 25Psf, 23.98PsF

1280 x 720: 59.94p, 50p

HDMI

HDMI x 1, Type A, HDMI REC REMOTE supported, VIERA Link not supported

Output format (4:2:2 10 bit):

3840 x 2160: 59.94p, 50p, 29.97p, 25p, 23.98p

1920 x 1080: 59.94p, 50p, 59.94i, 50i, 29.97p, 25p, 23.98p

1280 x 720: 59.94p, 50p

VIDEO OUT

3.5 mm diameter mini jack, composite 1.0 V [p-p], 75 O

Built-inMicrophone

Stereo microphone

AUDIO IN 1/2

XLR (3-pin) x 2 (INPUT1, INPUT2)

Input high impedance, LINE/MIC/MIC+48V (switchable SW)

MIC: -40 dBu/-50 dBu/-60 dBu (switchable menu)

LINE: +4 dBu/0 dBu (switchable menu)

AUDIO IN

3/4 φ3.5 mm stereo mini jack, unbalance

MIC: -40 dBV (0 dB=1 V/Pa, 1 kHz)

Plug-in power compatible, supply voltage:2.5 V±0.5 V

Input impedance: Approx. 2kΩ (when plug-in power is ON)

Approx.20kΩ (when plug-in power is OFF)

SDI OUT

Linear PCM 4 ch

HDMI OUT

Linear PCM 4 ch (switchable menu)

Headhone

3.5 mm diameter stereo mini jack x 1

Built-in Speaker

20 mm diameter, round x 1

GENLOCK IN

BNCx1, 1.0V [p-p], 75Ω

Other Input/Output

TC IN/OUT BNC x 1, Used as the input and output terminals (switchable menu)

Input: 1.0 V to 4.0 V [p-p] 10 kΩ

Output: 2.0 V ± 0.5 V [p-p] low impedance

DC IN

DC 12 V EIAJ Type 4

REMOTE

2.5 mm diameter super mini jack

*The analog control remote controller used with previous

Panasonic models may not be used with this device.

LAN

RJ-45: 1000BASE-T/100BASE-TX/10BASE-T

NDI® HX2 supported

USB 3.0（DEVICE)

USB 3.1 GEN1 Type-C, USB Mass storage function

No USB bus power function

USB 2.0（HOST)

Type-A, 4-pin (5 V, 0.5 A) for Wireless Module (option)

LCD Monitor

3.2 type TFT LCD color monitor (3:2), approx. 1,620,000 dots,

Touch panel video display (16: 9) area: Approx. 1,370,000 dots

Viewfinder

0.39 type OLED (organic EL display), approx. 2,360,000 dots,

video display (16: 9) area: approx. 1,770,000 dots

Power Supply

DC 7.28 V (when the battery is used)

DC 12 V (when the AC adaptor is used)

Power Consumption

26W (when the LCD monitor is used)

17 W (1080i / 422ALL-I 100M recording, when the LCD monitor is used, no external device connection)

Operating Temperature

0 °C to 40 °C (32 °F to 104 °F)

Operating Humidity

10 % to 80 % (no condensation)

Weight (Body)

approx. 1.9 kg (4.19 lb) (body only, excluding lens hood, battery, and accessories)

Weight Shooting

approx. 2.3 kg (5.07 lb) (including lens hood, battery, and microphone holder)

Dimensions

180 mm (W) x 173 mm (H) x 311 mm (D) (7-1/8 inches x 6-13/16 inches x 12-1/4 inches)

(excluding protrusion and eye cup)

Included Accessories

Battery (AG-VBR59), Battery charger (AG-BRD50), AC adaptor, AC cable,

Microphone holder kit, Shoulder strap, Eye cup, Lens hood*, Grip belt* and Operating instructions

*Items come already attached to the camera.
