Product Information

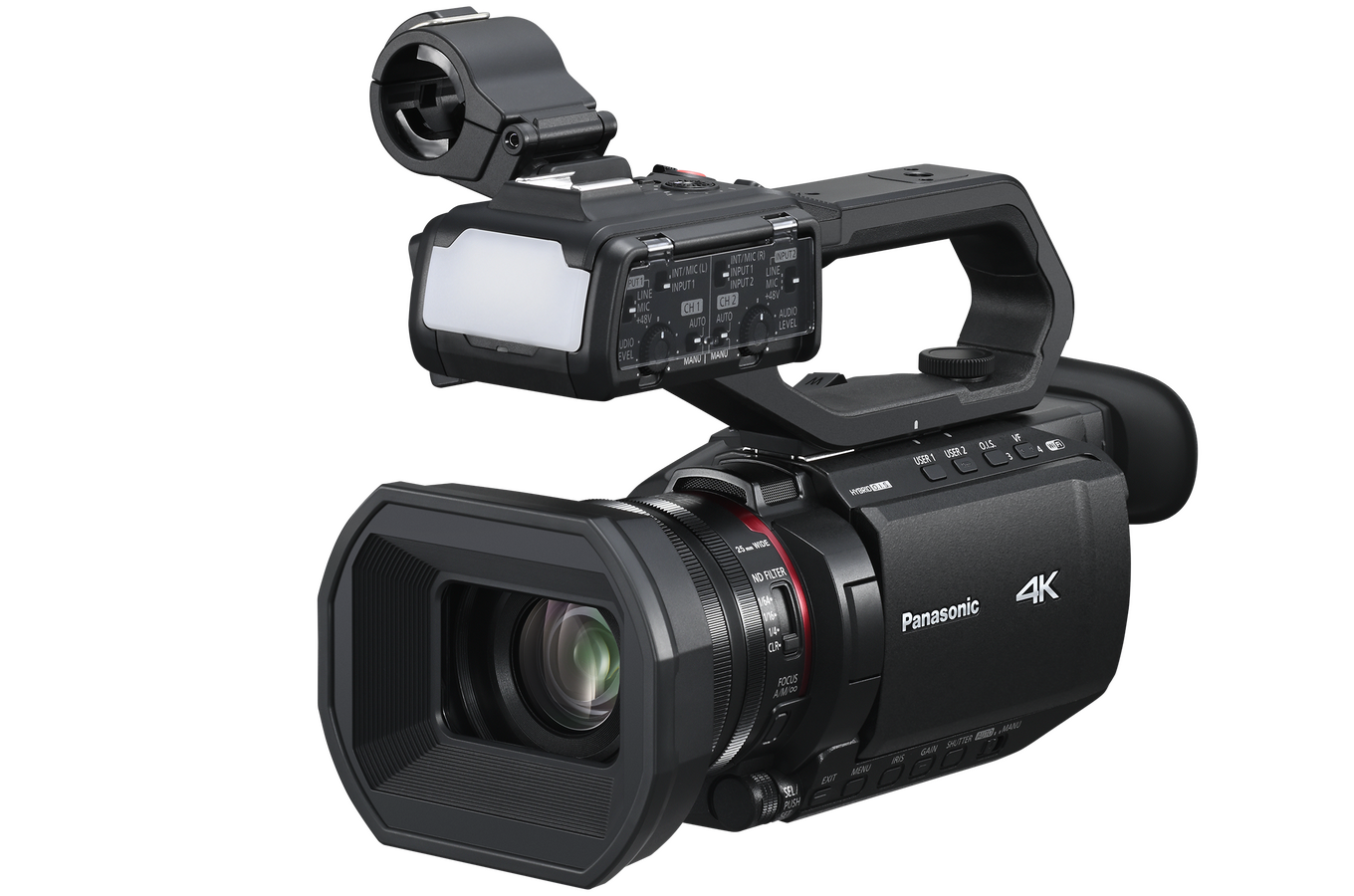

AG-CX18 / AG-CX20
Compact 4K 10bit 60p camcorder with IP connectivity
The AG-CX20 and AG-CX18 models camcorders feature state-of-the-art optical technology, in addition to a lightweight and compact chassis design that delivers increased mobility, and high-quality video production.
Wide angle zoom lens for precise shooting
The camcorders offer superior optical performance thanks to a powerful integrated 25mm[1] wide angle to 600mm[2] telephoto zoom lens, with 24x optical zoom. They feature a 4-Drive Lens System that operates each lens group independently, in addition to two manual focus rings.
All four cameras feature both Optical and Electric Image Stabilisation to detect and correct any unwanted camera shake through five axes, including rotational blurring. This is especially useful when shooting subjects from very high and low angles. All models provide superior focusing speed, stability, and tracking performance when shooting in both 4K and FHD, thanks to the Face Detection AF/AE feature that provides precise focusing and exposure for subjects.
[1] 35mm camera equivalent.
[2] AG-CX20 only.
IP-based video for seamless streaming
The high-end CX20 model will support full-HD live streaming through the next-generation, IP-based SRT protocol[1], with the CX20 and CX18 delivering simultaneous SDI/HDMI outputs. Panasonic’s CX20 also supports NDI®* HX2 IP connectivity for high-quality, low-latency live streaming in a network environment, without the need for external converters. Both the CX20 and CX18 support Real-Time Messaging Protocol (RTMP)[2], allowing content to be streamed live directly to social media platforms and video sharing sites, such as YouTube.
[1] To be added by firmware update.
[2] Supported protocols: RTSP/RTP/RTMP/RTMPS.
Listening to the needs of the industry
Panasonic’s intimate knowledge of what directors and cinematographers require from high-performance camcorders when shooting on location have been reflected within the improvements made to all four models, further increasing usability and functionality.

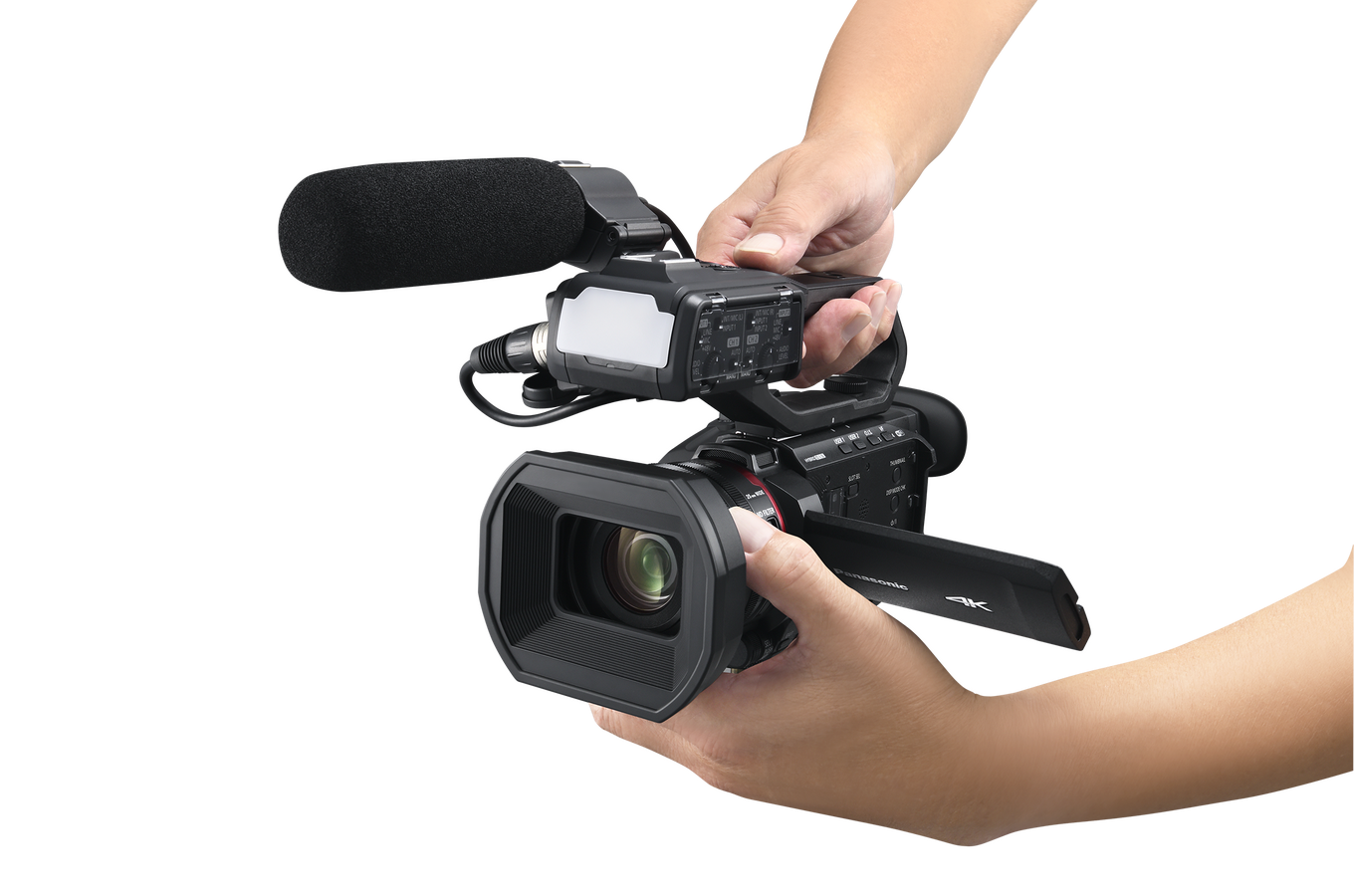

Compact design for superior mobility

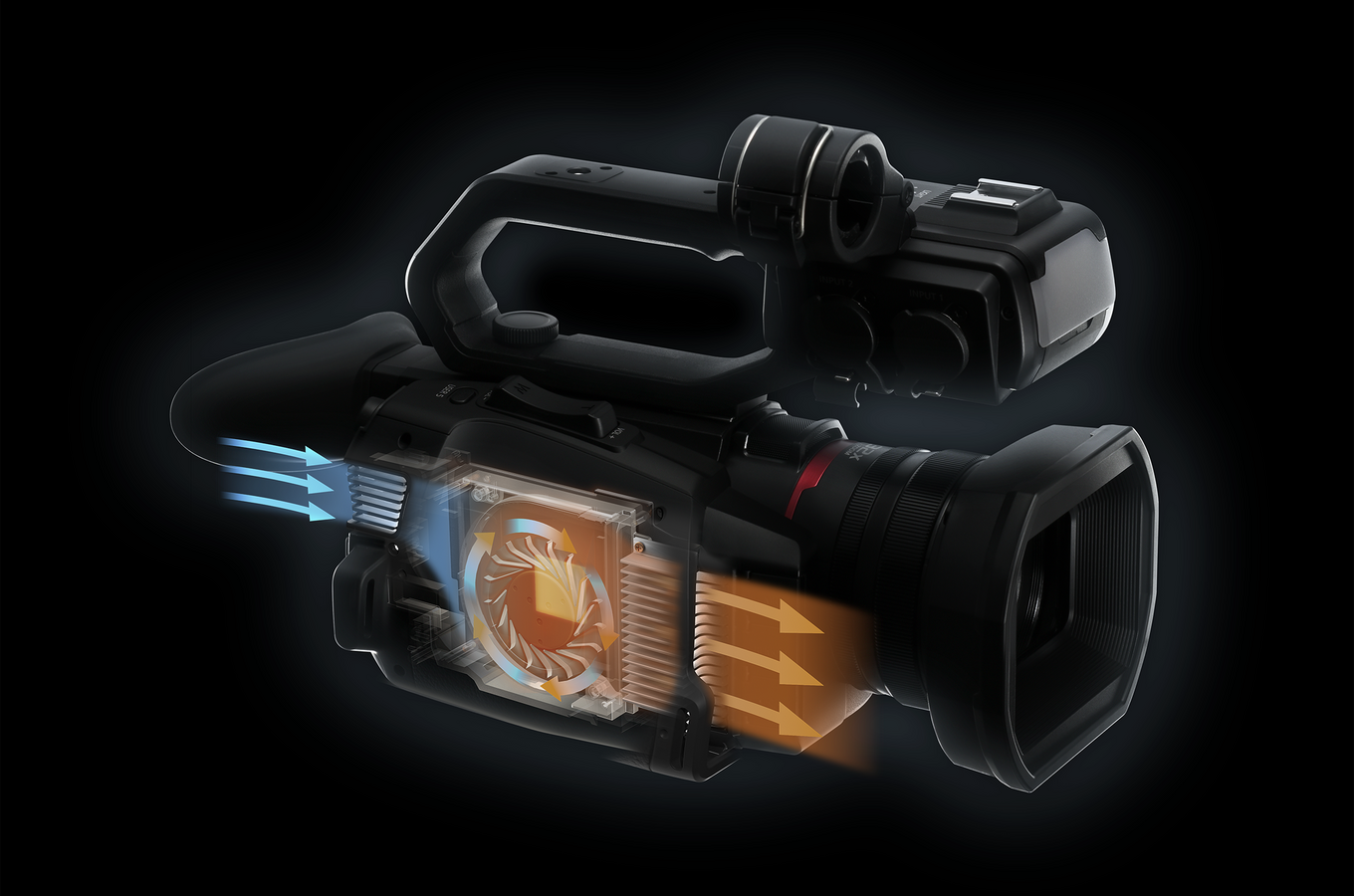

The unique design of all four models enables heat to be dispersed from the front panel thanks to a slimline fan. This increases reliability and enables the body to be as small as possible. The CX20 and CX18 include Panasonic’s VW-HU1 handle unit, featuring a two-channel XLR audio input and control, and bright, adjustable LED light for shooting in low light conditions. Users can also easily operate lens zoom from the handle unit.[1] All four camcorders support multiple bit rates and formats for a variety of requirements. When configured for 10 bit recording with an HDMI output, all models deliver 4K 60p 4:2:2 output with an external recorder. All camcorders support the MOV, MP4 and AVCHD formats, whilst the CX20 supports the P2 MXF workflow.
[1] Available as an optional extra on the X1600 only.

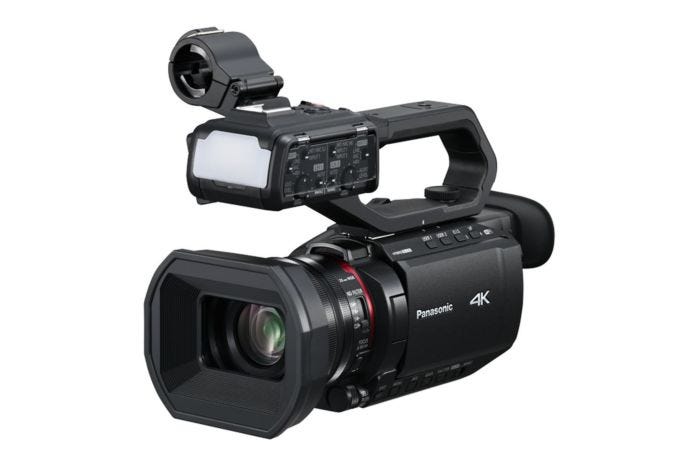

Panasonic AG-CX20 Camcorder
The AG-CX20 is a lightweight memory card camcorder, weighing approximately 850 g*1, that offers broadcast-quality imaging and exceptional portability. It supports extended 4K/60p recording, making it ideal for long-duration shoots. With a wide-angle 25 mm lens (35 mm film equivalent) and 24x optical zoom, it delivers high-quality video capture under a wide range of shooting conditions. Advanced features such as 4K High-precision AF and face detection/tracking AE & AF provide reliable support for smooth operation even in dynamic, fast-paced shooting environments.
The camcorder supports the broadcast-standard P2HD (MXF) file format, enabling simultaneous recording of main video with the AVC-Intra/AVC-LongG codec and proxy video with the AVC-Proxy G6 codec. It features internal 4:2:2 10-bit video recording and uses the High-Efficiency Video Coding (HEVC) codec for efficient video compression. The AG-CX20 built-in wireless function can also perform HD live streaming by connecting to Wi-Fi*2.
The AG-CX20 brings innovation to the forefront of program production with its advanced features for on-site shoots and interviews, coupled with uncompromising video quality.
*1: main unit only, excluding handle unit, lens hood, battery and eye cup.
*2: Wi-Fi® is a registered trademark of Wi-Fi Alliance®.
- Wide-Angle 25mm Lens and 24x Optical Zoom
- Supports SRT, NDI® HX2, RTMP
- High-Quality Recording with Versatile Modes
- Compact, lightweight with OLED viewfinder and handle
- Double SD Card Slot Meets Recording Needs
| General | ||
|---|---|---|
| Power | DC 7.28 V (when the battery is used) | |
| DC 9.0 V (when the AC adaptor is used) | ||
| Power Consumption | 19.8 W (recording), | |
| 15.5 W (charging) | ||
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) | |
| Operating Humidity | 10 % to 80 % (no condensation) | |
| Weight*1 | Approx. 0.85kg (Approx. 1.88 lbs.) (main unit only, excluding handle unit, lens hood, battery and eye cup) | |
| Approx. 1.5kg (Approx. 3.31 lbs.) (including handle unit, lens hood, battery and eye cup) | ||
| Dimensions*1 | 129 mm (W) x 159 mm (H) x 267 mm (D) (5.08 in. x 6.26 in. x 10.1 in.) | |
| (including handle unit, lens hood, battery and eye cup. excluding microphone holder) | ||
| Camera Unit | ||
| Pickup Device | 1/2.5-type MOS solid state image sensor | |
| Effective Pixels | approx. 8,290,000 pixels | |
| Lens | Optical image stabilizer lens, motorized 24x zoom | |
| F value: F1.8 to F4.0 | ||
| Focal length: f=4.12 mm to 98.9 mmm, 35 mm equivalent: 25.0 mm to 600 mm | ||
| Filter Diameter | 62 mm | |
| Optical Filter | ND Filter: Clear, 1/4, 1/16, 1/64 | |
| IR Filter: Incorporates the ON/OFF control function | ||
| Shortest Shooting Distance (M.O.D.) | Approx. 10 cm (W), 1.2 m (T) from the front lens | |
| Gain Setting | 0 dB to 18 dB (adjustable in 1 dB steps) | |
| (when assigning [S. GAIN] to the USER button) | ||
| Color Temperature Setting | ATW, ATW LOCK, A ch, B ch, | |
| preset 3200 K/preset 5600 K/VAR (2000 K to 15000 K) | ||
| Shutter Speed | When [SYSTEM MODE] = 59.94 Hz | |
| 59.94i/59.94p mode | 1/60 sec., 1/100 sec., 1/120 sec., 1/180 sec., 1/250 sec., 1/350 sec., 1/500 sec., 1/750 sec., 1/1000 sec., 1/1500 sec., 1/2000 sec., 1/3000 sec., 1/4000 sec., 1/8000 sec. | |
| 29.97p mode | 1/30 sec., 1/50 sec., 1/60 sec., 1/100 sec., 1/120 sec., 1/180 sec., 1/250 sec., 1/350 sec., 1/500 sec., 1/750 sec., 1/1000 sec., 1/1500 sec., 1/2000 sec., 1/3000 sec., 1/4000 sec., 1/8000 sec. | |
| 23.98p mode | 1/24 sec., 1/48 sec., 1/50 sec., 1/60 sec., 1/100 sec., 1/120 sec., 1/180 sec., 1/250 sec., 1/350 sec., | |
| 1/500 sec., 1/750 sec., 1/1000 sec., 1/1500 sec., 1/2000 sec., 1/3000 sec., 1/4000 sec., 1/8000 sec. | ||
| When [SYSTEM MODE] = 50.00 Hz | ||
| 50i/50p mode | 1/50 sec., 1/60 sec., 1/100 sec., 1/125 sec., 1/180 sec., 1/250 sec., 1/350 sec., 1/500 sec., 1/750 sec., 1/1000 sec., 1/1500 sec., 1/2000 sec., 1/3000 sec., 1/4000 sec., 1/8000 sec. | |
| 25p mode | 1/25 sec., 1/50 sec., 1/60 sec., 1/100 sec., 1/125 sec., 1/180 sec., 1/250 sec., 1/350 sec.,1/500 sec., 1/750 sec., 1/1000 sec., 1/1500 sec., 1/2000 sec., 1/3000 sec., 1/4000 sec., 1/8000 sec. | |
| Shutter Speed (Slow Shutter) | When [SYSTEM MODE] = 59.94 Hz | |
| 59.94i/59.94p mode | 1/8 sec., 1/15 sec., 1/30 sec. | |
| 29.97p mode | 1/8 sec., 1/15 sec. | |
| 23.98p mode | 1/6 sec., 1/12 sec. | |
| When [SYSTEM MODE] = 50.00 Hz | ||
| 50i/50p mode | 1/6 sec., 1/12 sec., 1/25 sec. | |
| 25p mode | 1/6 sec., 1/12 sec. | |
| Super Slow Recording | When [SYSTEM MODE] = 59.94 Hz | |
| 1920 x 1080 (FHD): shooting frame rate 120 fps | ||
| When [SYSTEM MODE] = 50.00 Hz | ||
| 1920 x 1080 (FHD): shooting frame rate 100 fps | ||
| Minimum illuminance of subject | 1.5 lx (F1.8, [SUPER GAIN＋] is enabled, when shutter speed is 1/30 sec.) | |
| i.Zoom | x48 (FHD), x32 (UHD) | |
| Digital Zoom | x2/ x5/ x10 | |
| LED light | Illuminance: approx.70 lx (1.0m/approx.3.3 feet) | |
| (when using the hundle unit) | Illumination angle: approx. 30° | |
| Color temperature: approx.4600K | ||
| Lens Hood | Hood with lens cover | |
| Memory Card Recorder | ||
| Recording Media | SDHC memory card (4 GB to 32 GB), | |
| SDXC memory card (over 32 GB to 512 GB), | ||
| microP2 card (A series, B series)*2 | ||
| Recording Slot | 2 slots | |
| Recording Pixels | 3840 x 2160: 59.94p, 50.00p, 29.97p, 25.00p, 23.98p | |
| 1920 x 1080: 59.94p, 50.00p, 29.97p, 25.00p, 23.98p, 59.94i, 50.00i | ||
| 1280 x 720: 59.94p, 50.00p | ||
| System Frequency | 59.94 Hz/50.00 Hz | |
| Recording File Format | P2, MOV, MP4, AVCHD | |
| Recording Format | Please see the "Recording Format" table. | |
| Recording Time | Please see the "Recording Time" table. | |
| 2 Slot Functions | Relay Rec, Simultaneous Rec, Background Rec | |
| Still Image Recording | JPEG (DCF/Exif2.2) | |
| Digital Video | ||
| Quantization | P2 | 4:2:2 10bit (AVC-I100/AVC-G50/AVC-G25), 4:2:0 10bit (AVC-I50), 4:2:0 8bit (AVC-G12/AVC-G6(proxy)) |
| MOV | 4:2:2 10 bit/4:2:0 10 bit (HEVC)/4:2:0 8 bit | |
| MP4 | 4:2:0 10 bit (HEVC)/4:2:0 8 bit | |
| AVCHD | 4:2:0 8 bit | |
| Video Compression Format | P2 | AVC-Intra422, AVC-LongG50, AVC-LongG25, AVC-LongG12, MPEG-4 AVC/H.264 Intra Profile |
| MOV | H.264/MPEG-4 AVC High Profile, H.265/MPEG-H HEVC Main10 Profile | |
| AVC-Intra200, Intra100, Intra50 | MPEG-4 AVC/H.264 Intra Profile | |
| Digital Audio | ||
| Recording Audio Signal | MOV | 48 kHz/24 bit, 2 ch, Linear PCM |
| AVCHD | 48 kHz/16 bit, 2 ch, Dolby Audio™ | |
| P2 | 48 kHz/24 bit, 2ch, Linear PCM (AVC-I100, AVC-I50, AVC-G50, AVC-G25) | |
| 48 kHz/16 bit, 2ch, Linear PCM (AVC-I100, AVC-I50, AVC-G12, AVC-G6 (proxy))*3 | ||
| Headroom | 12 dB/18 dB/20 dB switchable (menu) | |
| Live Streaming | ||
| Video Compression Format | H.264/MPEG-4 AVC Main Profile, H.264/MPEG-4 AVC High Profile | |
| Video Resolution | 1920 x 1080 (FHD), 1280 x 720 (HD), 640 x 360, 320 x 180 | |
| Streaming Method | Unicast, Multicast | |
| Frame Rate | System frequency = 59.94 Hz: 60 fps, 30 fps, 24 fps | |
| System frequency = 50.00 Hz: 50 fps, 25 fps | ||
| Bit Rate | 24 Mbps, 20 Mbps, 16 Mbps, 14 Mbps, 8 Mbps, 6 Mbps, 4 Mbps, 3 Mbps, 2 Mbps, 1.5 Mbps, 1 Mbps, 0.7 Mbps, 0.5 Mbps | |
| Audio Compression Format | AAC-LC, 48 kHz/16 bit, 2 ch | |
| Network Protocol | RTSP/RTP/RTMP/RTMPS*4 | |
| Video Output | ||
| SDI OUT | BNC x 1, SDI REC REMOTE supported, Timecode output, 0.8 V [p-p], 75 Ω, HD-SDI, | |
| Output format (4:2:2 10 bit): | ||
| • 1920 x 1080: 59.94p, 50p, 59.94i, 50i, 29.97p, 29.97Psf, 25p, 25Psf, 23.98p, 23.98PsF | ||
| • 1280 x 720: 59.94p, 50p | ||
| HDMI OUT | HDMI x 1, Type A, HDMI REC REMOTE supported, VIERA Link not supported | |
| Output format (4:2:2 10 bit): | ||
| • 3840 x 2160: 59.94p, 50p, 29.97p, 25p, 23.98p | ||
| • 1920 x 1080: 59.94p, 50p, 59.94i, 50i, 29.97p, 25p, 23.98p | ||
| • 1280 x 720: 59.94p, 50p | ||
| • 720 x 480: 59.94p | ||
| • 720 x 576: 50p | ||
| Audio Input/Output | ||
| Built-in Microphone | Stereo microphone | |
| MIC terminal | 3.5 mm diameter stereo mini jack x 1, plug-in power support | |
| Input 1/2 | XLR (3-pin) x 2 (INPUT1, INPUT2) | |
| (when using the handle unit) | Input high impedance, LINE/MIC/MIC+48V (switchable SW) | |
| LINE: +4 dBu/0 dBu (switchable menu) | ||
| MIC: -40 dBu/-50 dBu/-60 dBu (switchable menu) | ||
| SDI OUT | Linear PCM 2 ch | |
| HDMI OUT | Linear PCM 2 ch | |
| Headphone | 3.5 mm diameter stereo mini jack x 1 | |
| Speaker | 15 mm diameter, round x 1 | |
| Other Input/Output | ||
| Remote | 2.5 mm diameter super mini jack x1 (for serial communication)*5 | |
| USB 2.0 | USB Type-C x1, High-Speed USB (USB2.0) Host/Device (switched with menu) | |
| Device: mass strage function (readout only) | ||
| Host: bus power support (5V, 0.5A), USB tethering connection function, USB ethernet adapter support | ||
| DC IN 12V | 9V/3A, USB Type-C x1, USB-PD compatible | |
| Monitor/Viewfinder | ||
| LCD Montor | 3.5 type TFT LCD color monitor (3:2), approx. 1,620,000 dots, capacitive touch panel | |
| Viewfinder | 0.39 type OLED (organic EL display), approx. 2,360,000 dots, | |
| video display (16: 9) area: approx. 1,770,000 dots | ||
| Footnotes | ||
| Notes | *1:Weight and dimensions shown are approximate. | |
| *2:microP2 cards are discontinued. | ||
| *3:24 bit/16 bit switch by menu. | ||
| *4:For the purpose of compliance with RED DELEGATED REGULATION (EU) 2022/30, a streaming functionality with RTP/RTSP/RTMP will no longer be provided around summer 2025 onward. | ||
| *5:The analog control remote controller used with previous Panasonic models may not be used with this device. |
