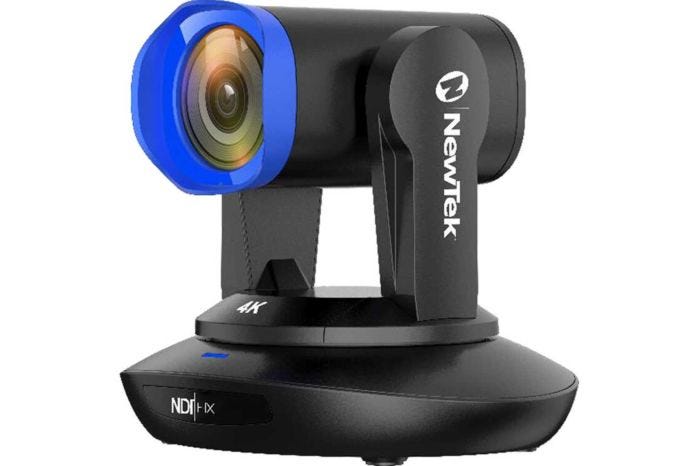

NewTek PTZ3 UHD Camera
Introducing the expertly engineered PTZ3 UHD
Truly mastering the art of capture, the PTZ3 UHD is the best and easiest way of getting the highest quality video and audio onto any network and into any production.
Mastering Audio
For the first time in a NewTek UHD camera, Professional XLR audio input seamlessly runs with equipment such as microphones, mixers, amplifiers, and soundboards.
Mastering Video
The PTZ3 UHD takes pan/tilt/zoom quality to new levels; ease-in and ease-out movements deliver seamless, smooth transitions for a natural, superior quality production without jittery or stuttering movements.
Mastering Connectivity
Whether it's using a single cable for audio and video, PTZ control, tally and PoE for power or connecting via NDI®, NewTek PTZ Cameras simply appear on the network and can immediately be built into any workflow with ease.
- One ethernet cable for audio and video, PTZ control and tally
- Professional XLR audio connection
- Sony 1/1.8” 12MP Sony Sensor
- 30 x Optical Zoom
- Ease-in and ease-out movements deliver seamless, smooth transitions
- Pristine 4Kp60 UHD Video
- Offers supports for NDI®|HX3
- Support for H.264, H.265 via NDI®|HX
- 1 x PTZ3UHD Camera
- 1 x Ceiling Mount
- 1 x Wall Mount
- 1 x MiniXLR (f) to XLR (f) Adapter
| Video Output | NDI/HX, 3G-SDI, HDMI |
|---|---|
| Audio Output | NDI/HX, HDMI, SDI |
| Video Formats: | |
| NDI/HX | 3840*2160P60/59.94/50/30/29.97/25 |
| 1920*1080P60/59.94/50/30/29.97/25/24 | |
| 1280*720P60/59.94/50/30/29.97/25 | |
| HDMI | 3840*2160P60/59.94/50/30/29.97/25 |
| 1920*1080P60/59.94/50/30/29.97/25/24/23.98 | |
| 1920*1080I60/59.94/50 | |
| 1280*720P60/59.94/50/30/29.97/25 | |
| SDI | 1920*1080P60/59.94/50/30/29.97/25/24/23.98 |
| 1920*1080I60/59.94/50 | |
| 1280*720P60/59.94/50/30/29.97/25 | |
| Zoom | 30 x Optical & 2x digital zoom |
| Sensor | Sony 1/1.8 inch 12MP sensor. |
| ColorSpace - 8 bit | NDI - 4:2:0, HDMI & SDI - 4:2:2 |
| Shutter Speed | 1/30 to 1/10,000 sec |
| Panning Angle | -170° to +170° |
| Panning Speed | Max 120°/sec |
| Tilting Angle | 30° to +60° |
| Tilting Speed | Max 80°/sec |
| Aperture | F1.8 ~ F14 |
| Focal Length | 6.91mm~214.64mm |
| Horizontal Angle of View | 60°(Far)-2°(Near) |
| Min. Object Distance | 1.5m (Wide/Tele) |
| Min. Illumination | 0.1 lux |
| Encoding | H.264/H.265, NDI/HX & HEVC |
| Audio Input | Mini XLR, 3.5mm stereo audio input (line) |
| Embedded Audio | NDI, HDMI |
| Signal | Balanced (Mini XLR), Unbalanced (Line In) |
| Sample Rate | 48KHz |
| Frequency | 100Hz~20KHz |
| Total Harmonic distortion | -90dB |
| Tally | Supported |
| White Balance | Auto, Manual, Auto Tracking, One Push, Outdoor, Indoor |
| Exposure | Auto, Manual, Shutter Priority, Iris Priority, Brightness Priority |
| Focus | Auto, Manual, Iris Auto, Manual Shutter Auto, Manual |
| Anti-Flicker | Off/50Hz/60Hz |
| Gain Control | Auto, Manual |
| Control | NDI |
| User Interface | Web based or NewTek NDI® Studio Monitor applications forremote configuration, control, and monitoring |
| POE+ | POE+ (IEEE 802.3 at) |
| Direct Power | DC12V |
| Power Consumption | 12W |
| Operating Temperature | -10°C~50°C |
| Operating Humidity | 20%~80% |
| Physical | Dimensions: 8.66 x 7.48 x 6.41 in (220 x 190 x 173 mm) |
| Weight: 2.97lbs (1.35 kg) |
