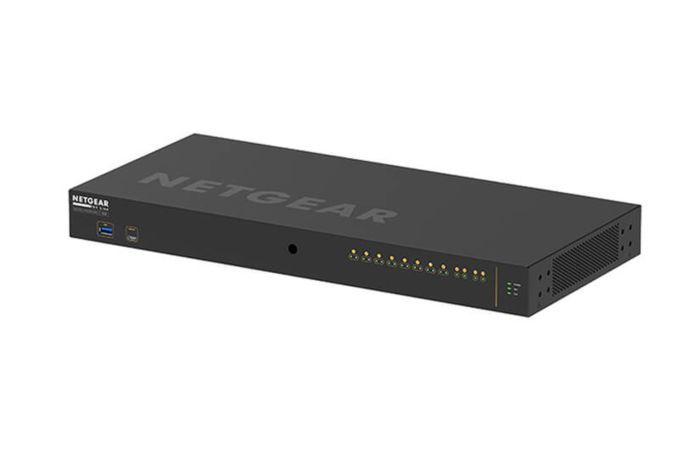

NETGEAR AV Line M4250-10G2XF-PoE+

NETGEAR AV Line M4250-10G2XF-PoE+

M4250 Series Switches

An entirely new series of switches developed and engineered for the growing audio, video over IP (AV over IP) market. These AV Line switches combine years of networking expertise with best practices from leading experts in the professional AV market.

Pro AV Benefits & Features

• As video transitions to running over an IP network versus direct cabling or even HDBaseT, there are many things to consider. The new AV Line incorporates NETGEAR IGMP Plus™ for flawless video over IP (including audio and control).
• If you are using Dante or AVB in your audio deployment, you can trust that NETGEAR's new AV Line switches are designed to seamlessly integrate into your solution. Easy to use, easy to manage.
• The new M4250 AV interface presents the common AV controls right up front with user-selectable profiles for common AV platforms making it a snap to ensure the settings are correct for a specific audio or video application.

Engineered for AV over IP

The M4250 switches, available in a range of configurations, are designed for a clean integration with traditional rack-mounted AV equipment.

A sleek, black display panel provides port and activity status in the front, with all power and network cabling neatly organized in the back.

• 8x1G PoE+ 240W 2x1G and 2xSFP+ Managed Switch

BUILT FOR AV OVER IP

• Multi-switch audio or single-switch video deployments
  8x1G PoE+ with 240W PoE budget with 2x1G additional ports and 2xSFP 1G fiber uplinks
• Layer 2/Layer 3 Switching
  Common Layer 2 and Layer 3 switching engine across all M4250 models
• Control methods abound
  Built-in IT web GUI, console, telnet and SSH consistent with other NETGEAR M4xxx series
• Standard network features
  Feature set includes static, RIP and PIM routing, DHCP Server and PTPv2

MOUNTING FLEXIBILITY

• Rackmount versatility
  1U, 200mm deep rackmount with all power and Ethernet ports on the back
• Reversed mounting possibility
  Possible reversed mounting with ports in the front including recessed mounting to protect cables
• Universal mounting availability
  Mounting outside the rack made possible with bottom M5 and front M10 threaded holes
• Adjustable fan functionality
  Quiet mode with 39.22dB@25ºC (all ports used, 240W PoE), fanless mode with max 25ºC ambient, 35ºC internal sensor

ADVANCED FEATURES

• Multi-switch audio or single-switch video deployments
  8x1G PoE+ with 240W PoE budget with 2x1G additional ports and 2xSFP 1G fiber uplinks
• Layer 2/Layer 3 Switching
  Common Layer 2 and Layer 3 switching engine across all M4250 models
• Control methods abound
  Built-in IT web GUI, console, telnet and SSH consistent with other NETGEAR M4xxx series
• Standard network features
  Feature set includes static, RIP and PIM routing, DHCP Server and PTPv2

• 1x M4250-10G2XF-PoE+ (GSM4212PX)
• 1x Power cord(s)
• 1x Console USB Type-C and RJ45-DB9 cables
• 1x Rack-mounting standard brackets
• 1x Longer brackets for recessed mounting
• 1x Rubber footpads for tabletop installation
• 1x Installation guide
