Nanlux Evoke 2400B KIT-FO Flight Case Standard Kit
Availability:In stock
Cat No.
59258
SKU
Evoke 2400B KIT-FO+
RF-NLM-45-EV2400
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
£7,078.80
£5,899.00
-
Free UK Delivery
On orders over £75
-
Price Match
Request here
Product Information
Nanlux Evoke 2400B KIT-FO Flight Case Standard Kit
NANLUX Evoke 2400B FO Flight Case Standard Kit (fixture only).
RF-NLM-45-EV2400 NL Mount Reflector 45° for Evoke 2400B with soft bag.
Function
- CCT: 2700K-6500K, fully dimmable 0-100% in 0.1% increment, G/M ±80
- EFFECT: 12 built-in practical effects: CCT Loop, INT Loop, Flash, Pulse, Storm, TV, Paparazzi, Candle/Fire, Bad Bulb, Firework, Explosion and Welding.
- Four fan modes: SMART, FULL SPEED, LOW SPEED, OFF.
- The maximum output is 100% when the fan is in SMART or FULL SPEED state.
- The maximum output is 50% when the fan is in LOW SPEED state.
- The maximum output is 10% when the fan is OFF.
- Two output modes: MAX OUTPUT and CONSTANT OUTPUT.
- Accessory recognition function: Evoke 2400B has accessory recognition function, for recognizing accessories that with optical contacts, this function can be turn on/off on the menu.
- Two language options: English and Chinese.
- Support firmware update.
- Bluetooth reset function.
Structure
- Separate design of light fixture and power supply, high power output with ultra-bright output.
- 3.5 inch screen, with four buttons and three knobs.
- Robust and durable metal material construction, with IP55 rating.
- Quick release design of yoke with eye bolt, enable Evoke 2400B to rotate in 360-degree.
- Integral disassembly design makes it convenient for maintenance and replacing parts.
- Quick release plate & clamp for the power supply, with clamping range of φ15-50mm.
- Evoke 2400B is built with NL mount and optical contacts, makes it compatible with NL mount accessories and modifiers that with optical contacts.
Control
- On-board control: Evoke 2400B can be operated through the control panel on the fixture.
- Bluetooth: Evoke 2400B has built-in bluetooth module for directly controlled by NANLINK APP.
- 2.4G: Evoke 2400B has built-in 2.4G receiver, enabling it to be controlled by remote controller or by NANLINK APP via the NANLINK box.
- DMX/RDM: Support DMX/RDM control.
- LumenRadio: Built-in Lumenradio module for remote control.
- Wireless control on/off function.
- Reserved wired control function.
- Support Art-Net and sACN control protocol.

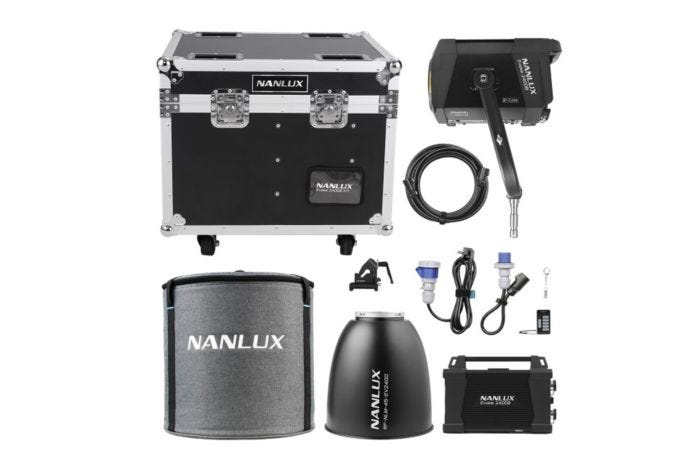

- Evoke 2400B×1
- Yoke×1
- Power Supply×1
- USB Drive×1
- AS-CP-QR-EV Quick Release Clamp×1
- CC-EV2400-FT-FO Flight Case×1
- WS-RC-C2 Remote Controller×1
- DC Connection Cable 7.5M×1
- AC Power Cable 3M×1
- User Manual×1
- RF-NLM-45-EV2400 Reflector 45°×1
- Soft bag for reflector×1.
| Rated Power | 2400W |
|---|---|
| Input Voltage/Current | DC48V/26A AC100V-240V 50/60Hz |
| Beam Angle | 100° |
| LED Type | WW |
| Product Size (mm) | Light Fixture(w/o COB protective cap): 427.3×316.4×265.1mm/16.8×12.5×10.4″ Power Supply: 389.2×172.2×268.3mm/15.3×6.8×10.6″ |
| Product Weight (kg) | Light Fixture(w/o COB protective cap): 15kg/33.1lb Yoke: 2kg/4.41lb Power Supply: 11.58kg/25.53lb |
| Control | On-board, 2.4G, Bluetooth, DMX/RDM, LumenRadio, Wire Control(reserved), NANLINK APP, Art-Net & sACN |
| Dimming | 0-100%, 0.1% increment |
| IP Rating | IP55 |
| Operating Temperature Range | -20℃-45℃ |
| CRI | average 96 |
| TLCI | average 97 |
| TM-30 | Rf：average 95 Rg：average 100 |
| CCT | 2700K-6500K (G/M±80) |
