Product Information

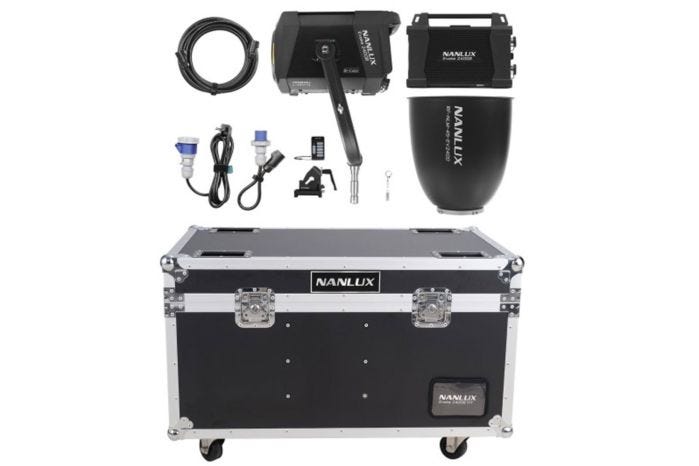

Nanlux Evoke 2400B Flight Case Kit
NANLUX Evoke 2400B Kit Flight Case Kit with Reflector 45°.
Function
- CCT: 2700K-6500K, fully dimmable 0-100% in 0.1% increment, G/M ±80
- EFFECT: 12 built-in practical effects: CCT Loop, INT Loop, Flash, Pulse, Storm, TV, Paparazzi, Candle/Fire, Bad Bulb, Firework, Explosion and Welding.
- Four fan modes: SMART, FULL SPEED, LOW SPEED, OFF.
- The maximum output is 100% when the fan is in SMART or FULL SPEED state.
- The maximum output is 50% when the fan is in LOW SPEED state.
- The maximum output is 10% when the fan is OFF.
- Two output modes: MAX OUTPUT and CONSTANT OUTPUT.
- Accessory recognition function: Evoke 2400B has accessory recognition function, for recognizing accessories that with optical contacts, this function can be turn on/off on the menu.
- Two language options: English and Chinese.
- Support firmware update.
- Bluetooth reset function.
Structure
- Separate design of light fixture and power supply, high power output with ultra-bright output.
- 3.5 inch screen, with four buttons and three knobs.
- Robust and durable metal material construction, with IP55 rating.
- Quick release design of yoke with eye bolt, enable Evoke 2400B to rotate in 360-degree.
- Integral disassembly design makes it convenient for maintenance and replacing parts.
- Quick release plate & clamp for the power supply, with clamping range of φ15-50mm.
- Evoke 2400B is built with NL mount and optical contacts, makes it compatible with NL mount accessories and modifiers that with optical contacts.
Control
- On-board control: Evoke 2400B can be operated through the control panel on the fixture.
- Bluetooth: Evoke 2400B has built-in bluetooth module for directly controlled by NANLINK APP.
- 2.4G: Evoke 2400B has built-in 2.4G receiver, enabling it to be controlled by remote controller or by NANLINK APP via the NANLINK box.
- DMX/RDM: Support DMX/RDM control.
- LumenRadio: Built-in Lumenradio module for remote control.
- Wireless control on/off function.
- Reserved wired control function.
- Support Art-Net and sACN control protocol.
- Evoke 2400B×1
- Yoke×1
- Power Supply×1
- RF-NLM-45-EV2400 Reflector 45°×1
- USB Drive×1
- AS-CP-QR-EV Quick Release Clamp×1
- CC-EV2400-FT Flight Case×1
- WS-RC-C2 Remote Controller×1
- DC Connection Cable 7.5M×1
- AC Power Cable 3M×1
- User Manual×1
| Rated Power | 2400W |
|---|---|
| Input Voltage/Current | DC48V/26A AC100V-240V 50/60Hz |
| Beam Angle | 100° |
| LED Type | WW |
| Product Size (mm) | Light Fixture(w/o COB protective cap): 427.3×316.4×265.1mm/16.8×12.5×10.4″ Power Supply: 389.2×172.2×268.3mm/15.3×6.8×10.6″ |
| Product Weight (kg) | Light Fixture(w/o COB protective cap): 15kg/33.1lb Yoke: 2kg/4.41lb Power Supply: 11.58kg/25.53lb |
| Control | On-board, 2.4G, Bluetooth, DMX/RDM, LumenRadio, Wire Control(reserved), NANLINK APP, Art-Net & sACN |
| Dimming | 0-100%, 0.1% increment |
| IP Rating | IP55 |
| Operating Temperature Range | -20℃-45℃ |
| CRI | average 96 |
| TLCI | average 97 |
| TM-30 | Rf：average 95 Rg：average 100 |
| CCT | 2700K-6500K (G/M±80) |
