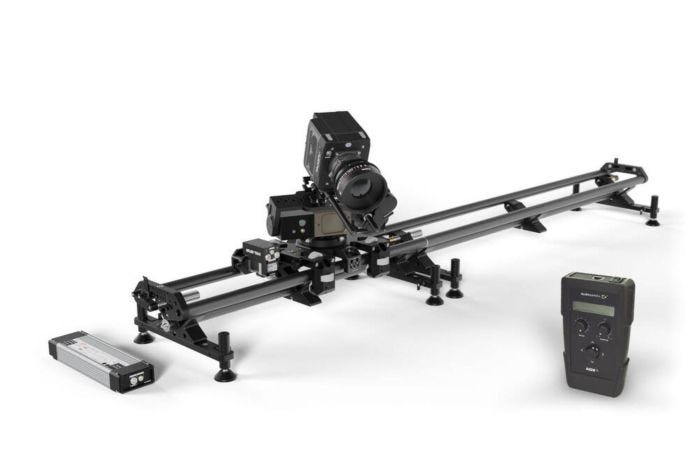

MRMC ATLAS MOCO - MONOHEAD STUDIO Versatile modular slider with 1-axis remote head

MRMC ATLAS MOCO - MONOHEAD STUDIO Versatile modular slider with 1-axis remote head

CONSTRUCTION

The truss construction guarantees strength and rigidity of the set in all directions and allows to mount a standard 2m rails set on two tripods without any deflection.

MODULARITY

ATLAS MODULAR SLIDER comes with 0.8m and 1.2m sections, but 2m and 3m sections are also available. The maximum recommended length is 12 meters.

The modular system is designed to be assembled and disassembled without any tools.

Each section is equipped with feet, that can be easily and quickly adjusted to any surface. You can perfectly level the set on the ground in no time.

SIDE BRACKETS

The side brackets come with magnetic bumpers. When you use your slider manually, they act as brakes. If the cart approaches the end of the slider, they prompt you about the incoming end of the working range. This allows you to focus on capturing the best image, instead of worrying about the remaining range of the slider.

ATLAS MODULAR DOLLY MK2

• 12 custom designed wheels for high stability
• Perfect motion at any angle: horizontal, vertical or upside down
• A wide range of camera mounting options
• 75/100/150 mm bowl with adjustable distance pins
• Plate with 3/8" screw
• 1/4" and 3/8" mounting ports
• Magnetic bumpers for smooth operation

MONOHEAD STUDIO

• Precise rotation of the camera in one axis
• High precision and repeatability
• Redesigned gearbox - increased payload and stability
• Rotation speed up to 73º/s
• Max load capacity: 16 kg

ATLAS MODULAR DRIVE

• Silent motion
• Max speed 0.4 m/s
• High precision and repeatability
• High-quality connectors

AION IQ

AION IQ is the basic controller that works with 2-axis setup, e.g. the slider and MONOHEAD STUDIO. It offers all standard modes:

• Live
• Loop
• Record/Playback
• Timelapse
• Animation (stop motion)

For shooting interviews or recording live shows, MONO HEAD STUDIO is a perfect solution that automates the camera's motion. The PARALLAX feature ensures that the filmed object will remain in the right spot in the frame. You don't have to worry about the parallax effect or missed compositions.

EASY & QUICK MOUNTING

• Self-adjusting adapters for 75/100 mm bowl sockets
• 3/8" universal mount

CONSTRUCTION

The truss construction guarantees strength and rigidity of the set in all directions and allows to mount a standard 2m rails set on two tripods without any deflection.

MODULARITY

ATLAS MODULAR SLIDER comes with 0.8m and 1.2m sections, but 2m and 3m sections are also available. The maximum recommended length is 12 meters.

The modular system is designed to be assembled and disassembled without any tools.

Each section is equipped with feet, that can be easily and quickly adjusted to any surface. You can perfectly level the set on the ground in no time.

SIDE BRACKETS

The side brackets come with magnetic bumpers. When you use your slider manually, they act as brakes. If the cart approaches the end of the slider, they prompt you about the incoming end of the working range. This allows you to focus on capturing the best image, instead of worrying about the remaining range of the slider.

ATLAS MODULAR DOLLY MK2

• 12 custom designed wheels for high stability
• Perfect motion at any angle: horizontal, vertical or upside down
• A wide range of camera mounting options
• 75/100/150 mm bowl with adjustable distance pins
• Plate with 3/8" screw
• 1/4" and 3/8" mounting ports
• Magnetic bumpers for smooth operation

MONOHEAD STUDIO

• Precise rotation of the camera in one axis
• High precision and repeatability
• Redesigned gearbox - increased payload and stability
• Rotation speed up to 73º/s
• Max load capacity: 16 kg

ATLAS MODULAR DRIVE

• Silent motion
• Max speed 0.4 m/s
• High precision and repeatability
• High-quality connectors

AION IQ

AION IQ is the basic controller that works with 2-axis setup, e.g. the slider and MONOHEAD STUDIO. It offers all standard modes:

• Live
• Loop
• Record/Playback
• Timelapse
• Animation (stop motion)

For shooting interviews or recording live shows, MONO HEAD STUDIO is a perfect solution that automates the camera's motion. The PARALLAX feature ensures that the filmed object will remain in the right spot in the frame. You don't have to worry about the parallax effect or missed compositions.

EASY & QUICK MOUNTING

• Self-adjusting adapters for 75/100 mm bowl sockets
• 3/8" universal mount

• Versatile modular slider with 1-axis remote head
• Powered by reliable stepper motors
• Designed for professional cameras up to 16kg
• SLIDER comes with 0.8m and 1.2m sections, but 2m and 3m sections are also available. The maximum recommended length is 12 meters
• Easy & Quick Mounting

• ATLAS MODULAR Slider - 2m
• 0.8m and 1.2m sections with feet
• Side brackets with manetic bumpers
• ATLAS MODULAR DOLLY MK2 - standard 12 wheels trolley
• 75/100 bowl adapter with distance pins
• flat plate with 3/8" thread
• 2x SHORT Locking Handle - M10 and 3/8"
• V-Mount Adapter & Plate SET
• ATLAS STEPPER DRIVE - stepper motor unit
• timing belt - 2m
• LEMO cable - 5m
• MONOHEAD STUDIO 1-axis remote head
• AKC-3 quick release system
• LEMO cable - 1.5m
• transport case for the head and cables
• AION IQ - 2-axis controller
• mini-LEMO control cable - 3m
• PSU 185 - Power Supply Unit
• 110V/230V power cable
