Minifab V-Mount Battery Plate for Canon C400
Availability:In stock
Cat No.
72401
SKU
MF-VMP400
Product Information

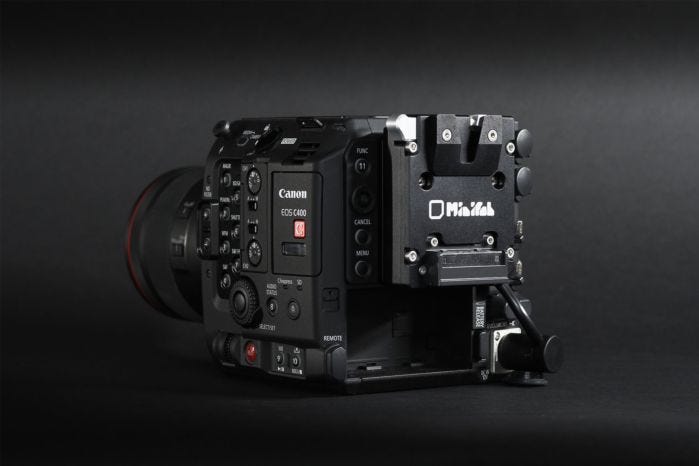

Minifab V-Mount Battery Plate for Canon C400
Compact V-Mount battery plate for the Canon C400.
Design
The VMP400 attaches directly to the rear of the camera using two captive M4 screws (included) and powers the camera via low profile XLR connector. The compact design enables the simultaneous use of V-Mount batteries and Canon A60 style batteries, permitting hot-swapping.
Auxillary Power
Features two auxillary outputs for powering onboard accessories (5A each/8A max). Both aux outputs can be unscrewed and rotated 180º for optimum cable routing.
Fitted with two DTaps as standard or optionally upgrade to 2-pin LEMO. Pin 1 is ground (Arri/SmallHD/Teradek standard).
Backwards Compatible
Also works with the C300mkIII and C500mkII. Requires the Vertical Offset Plate for hotswapping with Canon batteries.
Convertible
Quickly and easily turn your VMP400 into a GMP400 with a conversion kit.
Customisable
Engrave your battery plate with your own logo, and/or opt for custom anodising.
| Weight | 192g |
|---|---|
| Core dimensions | 66x82x24mm |
| Maximum dimensions | 72x82x33mm |
