MID49 Baseline 15mm LW Baseplate for Select Sony & Blackmagic Cameras
Availability:In stock
Cat No.
70433
SKU
M49-BSL-LW0-AC12
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
£516.60
£430.50
-
Free UK Delivery
On orders over £75
-
Price Match
Request here
Product Information
MID49 Baseline 15mm LW Baseplate for Select Sony & Blackmagic Cameras
Baseline 15mm LW Baseplate (Sony Burano, FX6, Venice, Venice 2, Rialto, F55, F5 / Blackmagic URSA Cine LF, URSA Mini) is a baseplate that holds 15mm lightweight rods at the correct distance from the center of the lens on the listed cameras.
ARRI dovetail slot on the bottom attaches to the included Baseline ARRI Dovetail or other ARRI standard dovetails using a top-load locking mechanism. Loosen the thumbscrew and push the silver button on the operator's side to release the baseplate from the ARRI dovetail. To reattach, drop down and listen for the pop to know it has engaged. Adjust the position on the ARRI dovetail, then lock the ratcheting thumbscrew.
Baseline ARRI Dovetail is the included lower ARRI mounting plate which can attach to tripod plates using 1/4-20 or 3/8-16 screws or ARRI standard bridgeplates with centered or offset screw spacing.
ARCA dovetail slot on top holds the included ARCA Dovetail and can be top-loaded, or installed from the back by sliding in. When sliding in from the back, a safety pin will engage with a pop when properly installed. Adjust the position, then lock the ratcheting thumbscrew. Top-loading can be achieved by loosening the thumbscrew, pulling out on the ratcheting knob, and turning the thumbscrew until ARCA clamp has opened fully. Reverse the process to tighten.
Center screw slot on ARCA Dovetail accepts 1/4-20 and 3/8-16 mounting screws, and a vertical rod hole clamps included 1/4-20 lens support posts for adaptors like Metabones, etc.

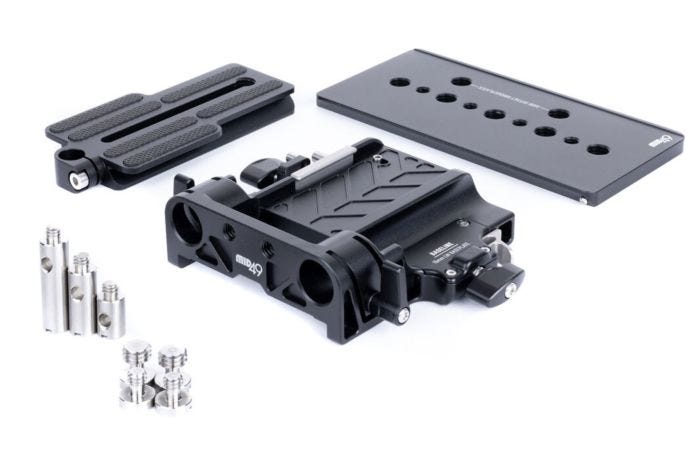

- MID49 Baseline Core 15mm LWS Baseplate (0" Platform Height)
- MID49 Baseline Arca Dovetail (0.47" Height)
- MID49 Baseline ARRI-Compatible Dovetail Mounting Plate
