Product Information

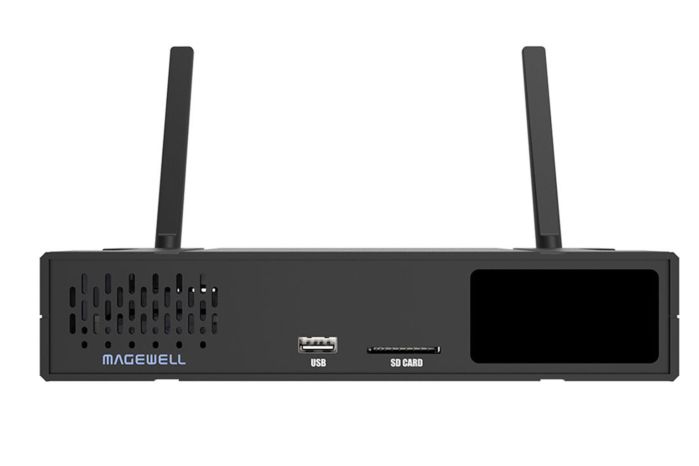

Magewell Ultra Encode AIO
The Ultra Encode AIO fits the standard 1RU form factor, allowing two encoders be rack mounted together with supplied mounting hardware for IRU use. Ultra Encode AIO offers both SDI and HDMI I/O with the capability to stream up to 4K30 to 6 streaming destinations.
Recording can be made to external SD card, USB storage and NFS/CIFS/SMB network storage. Ultra Encode AIO also provides Picture-In-Picture, Side-By-Side and graphics functionality in hardware for compelling presentations. It is designed for high quality streaming and IP workflows, including sports, education, live event and much more.
Ultra Encode AIO supports streaming up to 6 separate destinations simultaneously at 32Mbps for each streaming session.
NDI|HX 3 Compatibility
Ultra Encode AIO supports high-efficiency, low-bandwidth NDI®|HX 3 standard. Customers can manually enable NDI®|HX 3 through Web GUI and send streams at up to 80Mbps. When NDI®|HX 3 is enabled in the device, all other streaming and recording tasks maintain disabled.
Recording
Ultra Encode AIO supports streaming and recording simultaneously. The recording can be made in 3 ways. USB storage (MP4/MOV), SD Card (MP4/MOV), Network Storage (NFS/CIFS,SMB)
Ultra Encode AIO provides presetting for streaming and recording through scheduler available in Web GUI.
- Streaming: up to 6 sessions with limitation on streaming protocol combination
- Encoding: with resolution up to 2K60, with bitrates up to16Mbps
- Audio: 8-channel input and 2-channel encoding
- Web GUI style: Black• Encoding: with resolution up to 4K30, with bitrates up to 32Mbps for each session
- Streaming: up to 6 sessions with greater flexibility on streaming protocol combination
- Recording: SD card, USB storage, network storage
- Audio: 8-channel input and encoding
- Web GUI style: White
- Supports content production (PinP, side-by-side, graphics overlays)
- Supports scheduler for streaming and recording
- Supports TVU ISSP protocol
- Supports NDI|HX3 standard
|
HDMI I/O |
SDI I/O |
|
|---|---|---|
|
Max input & loop-through format |
4096x2160 30fps 4:4:4/4:2:2 4096x2160 60fps 4:2:0 |
2048x1080 60fps 4:2:2 |
|
Other input & loop-through formats |
• 2048x1080p/2048x1080i/1920x1080p/1920x1080i 23.98/24/25/29.97/30/47.95/48/50/59.94/60 • 1280x720p 25/29.97/30/50/59.94/60 • 720x576 25p/50i (PAL SD) • 720x480 29.97p/59.94i (NTSC SD) |
|
|
Other input & loop-through formats |
• 2048x1080p/2048x1080i/1920x1080p/1920x1080i 23.98/24/25/29.97/30/47.95/48/50/59.94/60 • 1280x720p 25/29.97/30/50/59.94/60 • 720x576 25p/50i (PAL SD) • 720x480 29.97p/59.94i (NTSC SD) |
|
|
Video codec and encoding parameters |
H.264/H.265(HEVC) Max bitrate: 32Mbps |
|
|
Audio encoding parameters |
8-channel AAC Supported audio bitrates: 256/192/128/96/64/48/32/16 kbps |
|
|
Output formats |
• 4096x2160p/3840x2160p/2560x1440p30(only supported in HDMI) • 1920x1080p/1280x720p 23.98/24/25/29.97/30/50/59.94/60 • 720x576p25/720x480p30 |
|
|
Protocols |
RTSP/RTMP/RTMPS/SRT Caller/SRT Listener/NDI®|HX2/NDI®|HX 3/HLS(push)/TS over UDP/TS over RTP/TVU ISSP |
|
|
Storage |
SD card(MP4/MOV), USB storage(MP4/MOV), network storage(NFS/CIFS/SMB) |
|
