Lynx Technik D-sub 15 Audio Adapter PCB
Availability:In stock
Cat No.
75248
SKU
RBO 5015
Fast & Reliable Availability
We distribute our stock across multiple warehouses to ensure quick processing and delivery.
Need something urgently for Click & Collect?
If an item shows as in stock, please call us on 01442 292929 or email sales@proav.co.uk to confirm availability before visiting.
Fast & Reliable Availability
We distribute our stock across multiple warehouses to ensure quick processing and delivery.
Need something urgently for Click & Collect?
If an item shows as in stock, please call us on 01442 292929 or email sales@proav.co.uk to confirm availability before visiting.
£39.60
£33.00
-
Price Match
Request here
Product Information

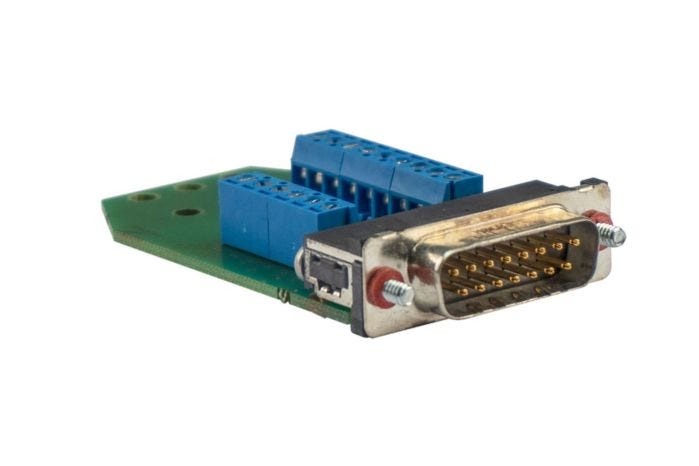

Lynx Technik D-sub 15 Audio Adapter PCB
The 15Pin SubD adapter PCB is provided to make balanced audio I/O connections to LYNX D type Series 5000 CardModules fitted with a 15 Pin Sub D connector. Connection ID is shown below for each module.
Simply locate the module in the vertical column and then read of the connector number and ID from the table. We recommend the wires are routed through the center of the PCB as shown and secured with tiewraps through the holes provided. All connections are balanced audio and the +/?/GND designation is marked for each connection on the PC
