Lynx Technik 3G-SDI Optical Bidirectional Transceiver SFP module (SM, 1310nm, LC connector, WDM capable, 10Km)
Availability:In stock
Cat No.
75167
SKU
OH-BD-1-1310-LC
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
£384.00
£320.00
-
Free UK Delivery
On orders over £75
-
Price Match
Request here
Product Information

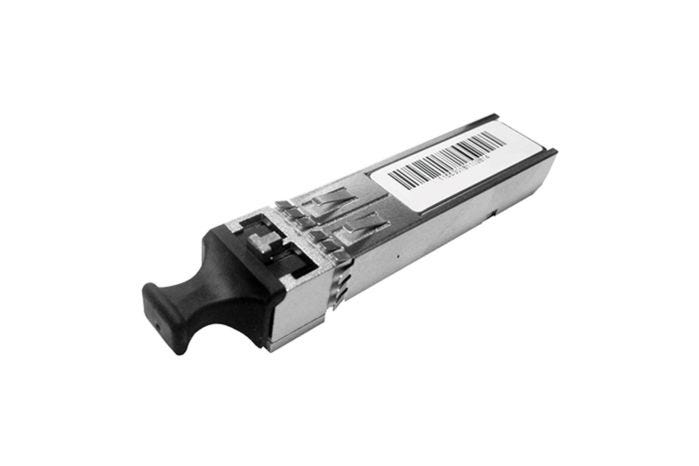

Lynx Technik 3G-SDI Optical Bidirectional Transceiver SFP module (SM, 1310nm, LC connector, WDM capable, 10Km)
The OH-BD-1-1310-LC SDI bidirectional optical transceiver is an integrated part or plug in option for select LYNX Technik yellobrik and Series 5000 products. This SFP module transmits an optical SDI signal and also receives a SDI signal over a single fiber link, TX Wavelength is a fixed 1310nm and suitable for distances up to 10km**. The RX wavelength is between 1480 and 1600nm.
The module accommodates 270Mbit / 1.485Gbit and 2.97Gbit SDI signals conforming to SMPTE 424M, 292M, 259M and DVB-ASI.
A socket, or “cage” is provided for the SFP in the supporting LYNX product for easy installation or upgrade. The SFP is hot swappable. This SFP is typically used in simple WDM closed loop point to point applications and is intended to be paired with the OH-BD-1-1550-LC SFP at the other end of the fiber link.
- SDI multi-rate optical bidirectional transceiver for 3G-SDI, HD-SDI and SD-SDI signals
- 1 port bidirectional operation over single fiber (singlemode)
- Support for SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI
- 1310nm TX Wavelength / 1550nm RX Wavelength
- For distances up to 10km**
- For use with yellobrik, greenMachine and Series 5000 product lines
- Pluggable and hot swappable
- Lead free and RoHS compliant
