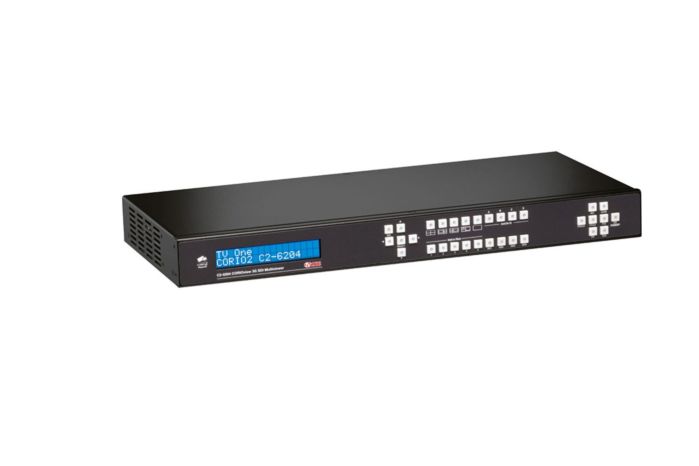

tvONE TV1-C2-6204A CORIOview 4-Window HD-SDI Multiviewer

tvONE TV1-C2-6204A CORIOview 4-Window HD-SDI Multiviewer

CORIOview C2-6204 4-Window 3G-SDI Processor is based on TV One's exclusive CORIO®2 technology and has four 3G-SDI inputs plus a DVI-I input (for window, cascade or background use) to place up to 4 sizeable windows on a single DVI-I / 3G SDI output. Each window is powered by a CORIO®2 scaler providing full PIP flexibility.

3G-SDI resolutions up to 1080p60 are supported. High performance de-interlacing with motion-adaptive noise reduction are available for interlaced SDI and YPbPr sources. The unit provides a DVI-I output as well as a duplicate 3G-SDI capable output.

All settings are stored in non-volatile memory and are retained even when power is switched off. Ten user defined presets (controllable directly from the front panel or external communications) are also available to customize settings for various applications. A built-in LCD and menu system aids quick setup. Functions can be controlled via the front panel Push Buttons, RS-232/ RS-422/RS-485 or Ethernet.

Color borders and source labeling are also provided for each window. Four Still Image Stores are built into the unit which can each display one of ten user loadable graphic images to be used in place of an input. The 5th input is available for use as a window source, background to the 4 windows, or as a cascade input from another CORIOview unit - thus adding 4 more windows per unit.

The CORIO® tool Suite integrates fully with the unit and most third party control systems interface directly with the entire C2 range of products.

Variable Zoom to 10X allows you to enlarge any part of the graphic image to fill the entire computer screen and position controls allow you to move around to any area desired. Variable Shrink to as little as 10% allows fitting multiple images next to each other, with full positional controls.

Colored stereo audio bars are available for each window, and show the live audio activity of an SDI source.

Key Features:

• 4-Window Processor
• 4x High Quality CORIO®2 Scaling Engines
• 4x 3G SDI inputs with re-clocked loop-thru
• 4x Internal Still Image Stores
• 5th input (DVI-I) for background or cascading multiple units
• SDI support for SD/HD/3G-SDI 1080p@60Hz
• DVI-D I/O support to 1920x1200, 1080p@60Hz
• DVI-A I/O support to 2048x2048, 1080p@60Hz
• Analog supports RGBHV, RGBS, RGsB, YPbPr
• 10 User-definable Presets for quick setup
• Motion Adaptive De-interlacing and Noise Reduction
• Audio monitoring via colored bars
• Colour Borders and Source Labeling
• Variable Image Zoom to 10X and Shrink to 10%
• Per-pixel or Percentage Scaling Control
• Autoset - Automatic Analog Picture Sizing
• Chromakey, Lumakey, Genlock and Mix
• Front Panel includes LCD, Menu Control and Quick- Setup features
• Control via RS-232/RS-422/RS-485, Ethernet or Front Panel
• CORIO Tool Suite compatible

• 4-Window Processor
• 4x High Quality CORIO®2 Scaling Engines
• 4x 3G SDI inputs with re-clocked loop-thru
• 4x Internal Still Image Stores

• 1 x C2-6204
• 1 x AC Power Cord 6’ (2m) US, UK, Euro or AU
• 1 x VGA to DVI Adapter ZDH-2040
• 1 x Operations Manual
• 1 x Rack mount Kit 2 Ears and 4 Screws
