tvONE One Task VS-622 Video to HDMI Scaler
Availability:In stock
Cat No.
45472
SKU
TV1-1T-VS-622
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
£378.00
£315.00
-
Free UK Delivery
On orders over £75
-
Price Match
Request here
Product Information

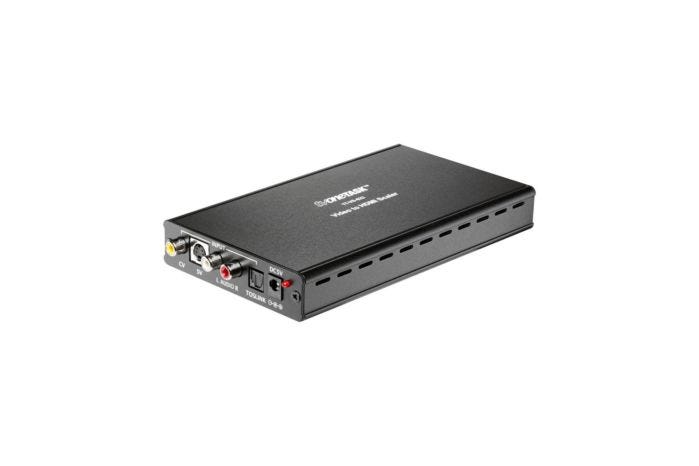

tvONE One Task VS-622 Video to HDMI Scaler
1T-VS-622 Video to HDMI Scaler will convert either Composite or S-Video Standard Definition analog signals to an HDMI output at PC, SD or HD resolutions.
In addition, externally available audio can be embedded into the output HDMI signal via separate Toslink and Analog Stereo inputs. Output audio, embedded in the HDMI signal, is separately available as Toslink and Analogue Stereo outputs providing maximum flexibility for systems integration.
The unit is HDCP complaint and DVI compatible and is ideal for situations where PC or other RGB video must be viewed on an HDMI display. The resolution of the attached display is automatically discovered by the unit.
A comprehensive OSD menu allows manual selection of output resolution, adjustments of picture quality and audio input selection. A Locking DC power connector is used for security.
Key Features:
- HDMI v1.2, HDCP 1.1, DVI 1.0 Compliant
- Input: Composite or S-Video, 480i or 576i
- 3-D De-interlacing, 3:2/2:2 Pull Down Detection
- Output: HD to 1080p, PC to WUXGA
- Automatically Detects HDMI Display Resolution
- Video Level Adjustments
- Supports embedded and external audio in and out
- Locking DC Power Adapter
- HDMI v1.2, HDCP 1.1, DVI 1.0 Compliant
- Input: Composite or S-Video, 480i or 576i
- 3-D De-interlacing, 3:2/2:2 Pull Down Detection
- Output: HD to 1080p, PC to WUXGA
- 1 x 1T-VS-622
- 1 x AC Power Adapter US, UK or Euro
- 1 x Operations Manual
| Video Inputs | Composite: 1 x via RCA Connector S-Video: 1 x via 4-Pin Mini-DIN TV Standards: NTSC (480i), PAL (576i) |
|---|---|
| Video Output | HDMI Output: 1 x Via Type A Connector |
| Output Resolutions | HDMI PC Resolutions: VGA - 640x480 @ 60Hz, SVGA - 800x600 @ 60Hz, XGA - 1024x768 @ 60Hz, SXGA - 1280x1024 @ 60Hz, UXGA - 1600x1200 @ 60Hz, WXGA - 1280x800 @ 60Hz, WSXGA - 1680x1050 @ 60Hz, WUXGA - 1920x1200 @ 60Hz HDMI HDTV Resolutions: 480p - 852x480 @ 60Hz, 576p - 852x576 @ 50Hz, 720p - 1280x720 @ 50, 60Hz, 1080i - 1920x1080 (i) @ 50, 60Hz, 1080p - 1920x1080 (p) @ 50, 60Hz HDMI SDTV Resolutions: 480i - 852x480 @ 60Hz, 576i - 852x576 @ 50Hz |
| Video Performance | Standards Compliance: HDMI v1.2, HDCP 1.1, DVI 1.0 Video Processing: 3-D Motion Adaptive, 3-D deinterlacing, 3:2/2:2 Pull Down Detection/Recovery Video Adjustments: Contrast, Brightness, Hue, Sharpness, Saturation, R-G-B Levels, Picture Size |
| Audio Inputs/Outputs | Analog Stereo Input: 2 x via RCA Connector Analog Stereo Output: 1 x via 3.5mm Mini-Stereo Digital Input: 1 x SPDIF via Toslink Connector Digital Output: 1 x SPDIF via Toslink Connector |
| Stereo Audio Performance | Analog Input Level: 2Vrms max @ 47KΩ Analog Output Level: Unity @ 47KΩ Toslink In/Output Level: Standard Toslink level Stereo Bandwidth: 20Hz to 20 KHz |
| Power Requirement | External Power Supply: 5VDC@2.6A |
| Dimensions (WxDxH) | 10.2 cm x 14.5 cm x 2.5 cm |
| Weight | 0.40 kg |
