tvONE MG-DA-618 HDMI 2.0 Distribution Amplifier
Availability:In stock
Cat No.
45489
SKU
TV1-MG-DA-618
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
£450.00
£375.00
-
Free UK Delivery
On orders over £75
-
Price Match
Request here
Product Information

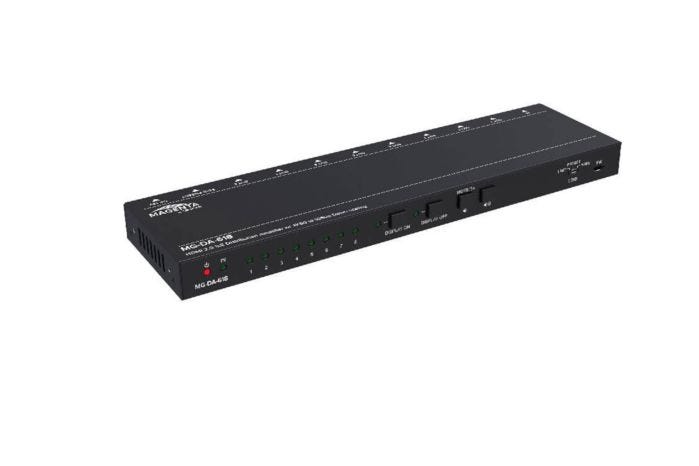

tvONE MG-DA-618 HDMI 2.0 Distribution Amplifier
The Magenta Research MG-DA-61x series of ultra-slim HDMI 2.0 Splitters and Distribution Amplifiers provide a high-performance solution for distributing HDMI signals with video output up to 4K2K@60Hz (YUV444) resolutions and HDR (High Dynamic Range Imaging) support, which gives the most life like video experience.
Support is also offered for up to 32 audio channels with sampling rates up to 192kHz and passthrough of 7.1 channels of digital audio including high resolution digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio and Dolby Atmos.
Key Features:
- Supports HDMI 2.0 and up to 4K@60Hz 4:4:4.
- HDCP 2.2
- HDR
- 3D pass through
- 18Gbps high bandwidth
- Ultra Slim less than 18mm in height
- Advanced EDID management
- Supports CEC pass through
- Supports HDMI 2.0 and up to 4K@60Hz 4:4:4.
- HDCP 2.2
- HDR
- 3D pass through
- 1 x 8 4K60 HDMI 2.0 Distribution Amplifier
| Video Inputs | Input (1) HDMI Input Connector (1) Type-A female HDMI HDMI Input Resolution Up to 4Kx2K@60Hz 4:4:4 8bit HDMI Standard 2.0a HDCP Version 2.2, 1.4 compliant CEC Supported |
|---|---|
| Video Output | MG-DA-612 - (2) HDMI MG-DA-614 - (4) HDMI MG-DA-618 - (8) HDMI Output Connector Type-A female HDMI HDMI Output Resolution Up to 4Kx2K@60Hz 4:4:4 8bit HDMI 2.0 HDCP 2.2, 1.4 compliant CEC Supported |
| Control | (1) EDID 4-pin DIP switch, (1) Micro-USB port |
| General | Bandwidth 18Gbps |
| Input Connector | 4K@60Hz 4:4:4 ≤ 5m, 4K@60Hz 4:2:0 ≤ 15m, 1080P ≤ 20m |
| Operation Temperature | -10°C — +55°C |
| Storage Temperature | -25°C — +70°C |
| Relative Humility | 10%-90% |
