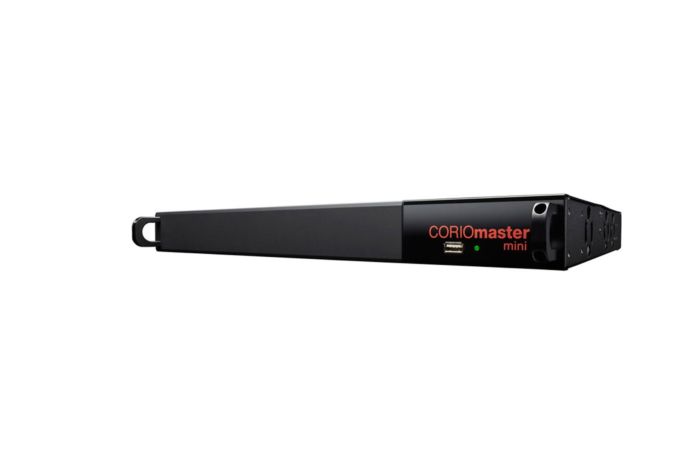

tvONE CorioMaster Mini Chassis
Availability:In stock
Cat No.
45494
SKU
TV1-C3-510-1001
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
£7,698.00
£6,415.00
-
Free UK Delivery
On orders over £75
-
Price Match
Request here
Product Information
tvONE CorioMaster Mini Chassis
CORIOmaster is an all-in-one system to perform a range of video tasks simultaneously, including: real-time 360° video rotations, and multi projector edge blending. The unit packages many of the powerful features of the CORIOmaster in a low-profile rack unit and delivers creativity and control at a low price.
Key Features:
- Multi Window Processing: Position, size, stretch and rotate one or more video windows.
- Rotation: Outputs can be independently rotated 360 degrees without adding video delay.
- Edge Blending: Combine projected images to create unique video presentations of almost any size and shape.
- 12 DVI-U ports (or up to 18 SDI ports)
- Real Time Video Quality
- Under 2 frames latency
- Conversion to virtually any HD or PC resolution
- Multi Window Processing: Position, size, stretch and rotate one or more video windows
- Rotation: Outputs can be independently rotated 360 degrees without adding video delay
- Edge Blending: Combine projected images to create unique video presentations of almost any size and shape
- 12 DVI-U ports (or up to 18 SDI ports)
- 1 x C3-510
- 1 x Operations Manual
- 1 x Power cable US, UK, Euro or AU
- Control Software USB Flash Drive
| Size & Weight | All-in-One Enclosure 5Kg 11.03lbs |
|---|---|
| Video Processing Power | Yes |
| CORIO Video Processing | Yes |
| Real Time Video Quality | Less than 2 frame signal delay from input to output |
| 4:4:4 High Quality Video Processing | Yes |
| CORIO Firmware Upgradable | Yes via Software |
| Input/Output Options | Universal DVI (analog & digital) 12 via DVI-U (HDMI & HDCP compatible) High Density HDBaseT Scaled Outputs Up to 8 3G/HD/SD-SDI Up to 10 HD-SDI 4 Input Module Up to 16 |
| Video Walls & Canvas | Number of Videowalls 1 Display Size Compensation Yes, Different Size Displays in Video Walls Real Time 360 Output Rotation Yes, 1° increments Edge Blending & Image Warping Yes HDCP Key Handling Yes |
| Resolution Inputs/Outputs | Analog PC Up to 2048x2048, HDTV to 1080p/60 Digital PC Up to 1920x1200, HDTV to 1080p/60 wEDID TV Format Support NTSC, PAL, PAL-M/N, SECAM Up/Down/Cross Video Conversion Yes, Built-in |
| Routing & Switching | Video & Audio Routing Any video input source routed to any window and, window layer priority changed Independent & Group switching Yes |
