Modular 4K Multi-Window 1/2RU Video Processor from TVOne

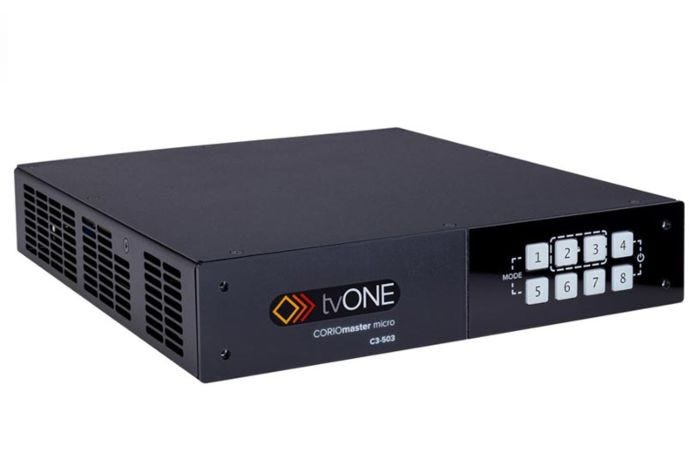

C3-503 CORIOmaster micro offers a new, more efficient approach to building Videowall systems. Using tvONE’s latest CORIO®3 technology, it gives the user access to new levels of video processing power to achieve new heights of creative and dynamic videowall displays. All this is possible in one 1RU, half rack sized chassis.
Multiple windows can be used on a video wall to display the physical inputs into CORIOmaster. Windows can be sized to fit the wall or multiple windows added, resized and rotated 360 degrees on the video wall independent of the output rotation. Each Micro can support up to 2 separate videowalls and projector edge-blends with up to 14 windows depending on the source resolution, frame rate and size of windows.
New 4K Input & Output Modules
The addition of 4K support consists of two new modules; HDMI 2.0 4K60 input module and the HDMI 1.4 4K30 scaling output module.
New Streaming Media & 4K Playback Module
The Streaming Media & 4K Playback Input Module provides CORIOmaster systems with the ability to bring 2 network streams up to 1080p 60 @ 20mbs in to just 1 slot. As well as playback of 4k UHD or 2x 1080p60 video files. The Streaming Media Input Module also supports still images with full 4K rendering. And with at least 40mbs of total bandwidth you can easily provide high quality content to your video wall and projector edge-blend.
New Transition Effects
CORIOgrapher v2, the control software for the CORIOmaster, CORIOmaster mini and CORIOmaster micro videowall processors now has included simple easy to use window and source transition effects. This new animation feature is controlled by presets in the system. Transition effects occur not only by selecting presets in CORIOgrapher but also by third party control systems.
Building of presets in the system now save one or any combination of the following window transition effects as part of a single preset:
When a preset is recalled the transition parameters will automatically occur and be smoothly applied over the duration set in each preset from the current state of the windows. Presets can be created and selected sequentially for precise control of desired effects. Presets can also be selected randomly with the CORIO firmware automatically calculating the difference from preset to preset.
CORIO3 video processing technology makes the designing of creative and powerful video display systems an entirely visual experience. Users create Layouts or virtual display groups on a PC screen and then select sources to show on those virtual displays. Then it’s a freeform process of creating a Canvas over the display Layout by sizing, shaping, rotating and positioning each source as required.
DVI Modules
tvONE Universal DVI modules allow for direct connections to most common analog or digital sources and destinations.
Custom DVI-I adapters provide connections for: Composite, S-Video, component, VGA, RGBHV and HDMI (DVI-D connects directly).
A DVI module provides 2 connections per AV Slot.
HDBaseT Module
SDI Modules
The scaling 3G/HD/SD-SDI output module allows any source to be converted to SD-SDI, HD-SDI or 3G-SDI for output.
4K Modules
Streaming Media & 4K Playback Module
Key Features:
This product includes:
Video Processing Power | |
---|---|
Parallel Processing Architecture | Yes |
CORIO3 Video Processing | Yes |
Real Time Video Quality | Yes |
Up/Down/Cross Conversion | Yes |
Number of Video walls | 2 |
Display Size Compensation | Yes, different sizes in video walls |
Output Rotation | Yes for any outputs and windows |
Projector Edge Blending | Yes |
HDCP Key Handling | Yes |
Computer Input | |
Digital DVI | Up to 4 via Universal DVI (HDMI & HDCP compatible) |
Analog | Up to 4 via Universal DVI |
Analog Format | RGBHV, RGBS, RGsB, YPbPr |
Analog Sync | TTL Level, 10KΩ, Pos or Neg |
RGB Level Range | 0.5-2.0 Vp-p |
Scan Rate Detection | Automatic |
Analog Signals | PC to 1920x1080, HD to 1080p60 |
DVI Signals | PC to 1920x1200, HD to 1080p60 |
Max Horizontal Scan Rate | 150kHz |
Computer Outputs | |
DVI Signals | Up to 4 via DVI-I (HDMI & HDCP compatible) |
Analog | Up to 4 via DVI-I |
Analog format | RGBHV, RGBS, RGsB, YPbPr |
R-G-B Level | 0.7 Vp-p |
DVI Signals | PC to 1920x1200, HD to 1080p60 w/EDID |
Analog Signals | PC to 1920x1080, HD to 1080p60 |
Vertical Refresh Rate | Any to 250Hz |
Size and Position | User Adjustable |
Settings Memory | Non-Volatile |
Conversion Technology | Proprietary – CORIO®3 |
Colour | RGB/DVI/HDMI/YPbPr 24-bit 4:4:4, SDI 20-bit 4:2:2 |
Max. Sampling Rate | 162MHz |
Firmware Memory | Flash, Upgradeable via download |
Video Comb Filter | Adaptive |
Video Adjustments | Contrast, Brightness, RGB Gamma |
HD Video Resolutions supported | |
720p (1280x720) | 23.98, 24, 25, 29.97, 30, 50, 59.94, 60Hz |
1035i (1920x1035) | 59.94, 60Hz |
1080i (1920x1080) | 50, 59.94, 60Hz |
1080p (1920x1080) | 23.98, 24, 25, 29.97, 30Hz, 50, 59.94, 60Hz |
4K Video Input Resolutions supported | |
3840x2160: 4:4:4 | 23.98/24/25/29.97/30Hz 8-bit |
3840x2160: 4:2:0 | 50/59.94/60Hz 8-bit |
4096x2160: 4:2:0 | 50/59.94/60Hz 8-bit |
Video Inputs | |
Television Standards | NTSC, PAL |
Composite Video | Up to 4 via DVI |
YC (S-Video) | Up to 4 via DVI |
YUV /YPbPr | Up to 4 via DVI |
SD/HD-SDI | Up to 8 via BNC |
SD/HD/3G-SDI | Up to 4 via BNC |
4K/30 | Up to 4 via HDMI & HDBaseT |
4K60 | Up to 2 via HDMI & HDBaseT |
HDBaseT | Up to 4 via RJ45 |
AV over IP | |
Interface | Up to 2x 1 GbE Ethernet Port |
IP Video Decoding | H.264 (CBP, Main, High), H.265/HEVC1 (Main) |
IP Bit Rates | Up to 4x streams up to 25Mbs per stream |
Colour Depth | 4:2:0, 4:2:2 |
Supported IP Resolutions | Configurable to 1920x1080p60 |
Unicast Streams | RTSP, RTMP, HTTP, MPEG-TS |
Multicast Streams | RTSP, MPEG-TS |
Media/Images | |
Interfaces | Up to 2x USB3.0, Internal Storage1, Network |
Video Codecs | H.264 (CBP, Main, High), H.265/HEVC1 (Main) |
Video Formats | mp4, .mov, .mkv, .m4v, .ts, .mts, .m2ts, .mt2 |
Playback Bit Rates | Single stream to 100Mbs (per module), Dual Streams to 40Mbs (per module) |
File Playback Resolutions Supported | |
Up to 3480x2160@30fps | Up to 2 |
Up to 1080p60@60fps | Up to 4 |
Up to 7680 x 4320 | Still images |
Media Handling | |
External | Up to 2x USB 3.0 Interface |
Supported devices | Flash file systems FAT, FAT32, ext3, ext4, NTFS |
Internal | High speed storage up 128GB3 per module |
Remote | File transfer supported |
Video Outputs | |
YUV /YPbPr | Up to 4 via DVI |
SD/HD/3G-SDI | Up to 4 via BNC |
HDBaseT | Up to 4 via RJ45 |
4K | Up to 2 via HDMI |
3G/HD/SD-SDI | |
SMPTE259M-C (SD-SDI Video) |
270Mbps < 0.1UI jitter 525/625Line |
SMPTE292M (HD-SDI Video) |
1.485/1.4835Gbps < 0.2 UI jitter 720p, 1035i, 1080i, 1080p |
SMPTE424M (3G-SDI Video) |
2.97/2.967Gbps < 0.3 UI jitter 1080p 60/59.94 |
Control Methods | |
RS-232 | via D9 Female Connector |
IP Interface | RJ45 Connector |
Regulatory Compliance | |
Main unit | FCC, CE, RoHS, UL |
Mechanical | |
Size (H x W x D) | 1.73" x 8.54" x 9.61" (44 x 217 x 244mm) |
Weight (Net) | TBD |
Environmental | |
Operating Temperature | 0º to +40ºC (+32º to +104ºF) |
Operating Humidity | 10% to 85%, Non-condensing |
Storage Temperature | -10º to +70º C (+14º to +158º F) |
Storage Humidity | 10% to 85%, Non-condensing |
MTBF | Approximately 50,000 hours |
BTU | 205 BTU/hr |
Power | |
External Power Supply | 110v to 240v auto-detecting |
Redundancy | Not available |
Consumption | 60 watts maximum (fully populated) |
