Theatrixx xVision Reversible HD Streaming Server HDMI1.2/3G-SDI to H.264

Availability:In stock
Cat No.
52628
SKU
THERMVDO2IP
Trustpilot
Add to Wish List A|B
Theatrixx

Order Now - Usually available to despatch in 7-10 days

Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.

Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
£1,218.00 £1,015.00
- +
Apple Pay
  • Free UK Delivery

    Free UK Delivery

    On orders over £75

  • Price Match

    Price Match

    Request here

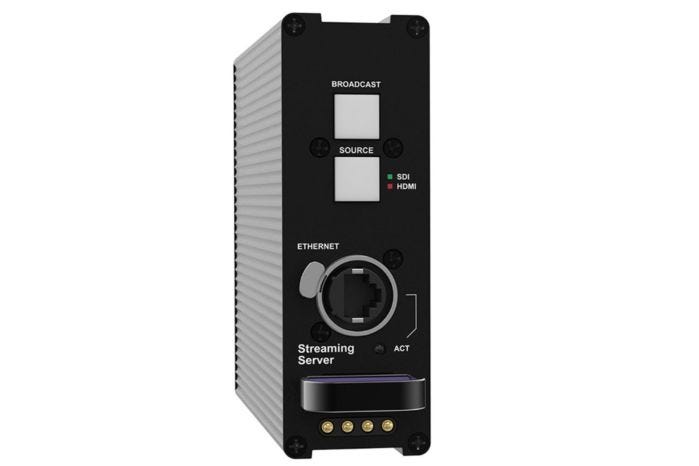

main product photo

Product Information

Theatrixx xVision Reversible HD Streaming Server HDMI1.2/3G-SDI to H.264

The Streaming Server Reversible Module fits in the 8-Bay Reversible Rackmount Converter system.

The module can be inserted in the 8-Bay Frame in either direction, allowing the inputs/outputs to be positioned either at the front or the back of the unit depending on the application.

There are no exposed PCBs as all modules are enclosed, and therefore protected against static shock, dust and general wear and tear.

Gold-plated, redundant spring pins with magnetic retention deliver DC power to the modules, meaning no messy cabling and external power bricks are needed.

Key Features:

  • Reversible module for 8-bay 2U converter rack (sold separately)
  • Video Input:  Switchable 1 x 3G/HD/SD SDI BNC & 1 x HDMI, 1.2 type A with locking system
  • Supports up to HD formats
  • Network Interface:  Locking EtherCON 10/100 Mbps Ethernet
  • Plug and play operation(2 buttons)
  • Built-in web server for configuration and control, DHCP or static IP client
Connections Video Input:
Switchable 1 x 3G/HD/SD SDI BNC & 1 x HDMI
1.2 type A with locking system
Network Interface:
Locking EtherCON 10/100Mbps Ethernet,
Built-in web server for configuration and control, DHCP or static IP client
Local control: Plug and play operation (2 buttons)
Supported Signals 2 x Electret Condenser
Polar Pattern

Video Format Support:
1920x1080p 60/50/30/25/24fps, 1920x1080i 60/50fps, 1280x720p 60/50fps, 1280x1024p 60fps,1280x960p 60fps, 1024x768p 60fps, 800x600p 60fps, 720x480p 60fps, 720x480i 60fps, 640x480p 60fps, 720x576p 50fps, 720x57i 50fps

Video Codec Support:
H.264 (Baseline/Main/High). Configurable bit rate up to 10Mbps (User selectable between Variable/Constant/Average Bit Rate). Downscaling available from 1920×1080 down to 128×128

Streaming Protocols:
RTSP over HTTP/TCP/UDP (RTSP elementary stream)
RTMP Publish (For YouTube/Facebook Live…)
TS over TCP/UDP/HTTP (unicast & multicast)

Embedded Audio:
AAC-LC Configurable bit rate range from 32Kbps to 384Kbps
Sample rate of 48KHz, 16bit
Environmental Specifications Relative Humidity: 0% to 90% non-condensing
Operating Temperature: 0-40 °C
Power requirements Power Supply: Reversible redundant power fed by XVVRF8 (8-Bay Rackmount Frame)
Power Consumption: 20W
Voltage Range: 12VDC
Physical and Dimensions Height: 121.5mm (4.78in)
Depth: 225mm (8.85in)
Width: 41mm (1.61in)
Weight: 710g (1.56lbs)
