Theatrixx xVision Reversible 4K Converter 12G-SDI to Fibre Multi optconDUO

Availability:In stock
Cat No.
52547
SKU
THERMS2F12GM2
Trustpilot
Add to Wish List A|B
Theatrixx

Order Now - Usually available to despatch in 7-10 days

Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.

Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
£1,507.20 £1,256.00
- +
Apple Pay
  • Free UK Delivery

    Free UK Delivery

    On orders over £75

  • Price Match

    Price Match

    Request here

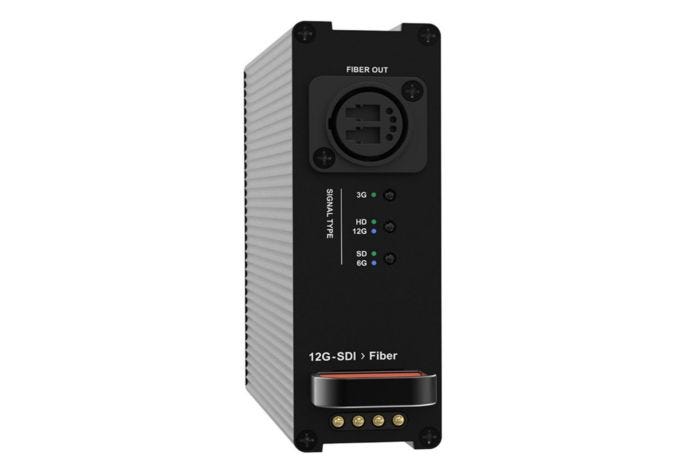

main product photo

Product Information

Theatrixx xVision Reversible 4K Converter 12G-SDI to Fibre Multi optconDUO

The 12G-SDI to Fiber Reversible Module fits in the 8-Bay Reversible Rackmount Converter system.

The module can be inserted in the 8-Bay Frame in either direction, allowing the inputs/outputs to be positioned either at the front or the back of the unit depending on the application.

There are no exposed PCBs as all modules are enclosed, and therefore protected against static shock, dust and general wear and tear.

Gold-plated, redundant spring pins with magnetic retention deliver DC power to the modules, meaning no messy cabling and external power bricks are needed.

Key Features:

  • Reversible module for 8-bay 2U converter rack (sold separately)
  • Video Input:  1 x 12G/6G/3G/HD/SD SDI BNC
  • Loop-thru:  1 x 12G/6G/3G/HD/SD SDI BNC
  • Video Output:  Multimode and OpticalCON DUO
  • Video Format Support:  12G/6G/3G-SDI Level A and B, HD-SDI, SD-SDI with embedded audio
  • 12G-SDI to Fiber
Connections Video Input 1 x 12G/6G/3G/HD/SD SDI BNC
Loop-thru 1 x 12G/6G/3G/HD/SD SDI BNC
Video Output:
Multimode
OpticalCON DUO
Supported Signals Video Format Support: 12G/6G/3G-SDI Level A and B, HD-SDI, SD-SDI with embedded audio
SMPTE Standards: 2082-1, 2082-10, 425M Level A & B, 424M, 292M, 259M
Environmental Specifications Relative Humidity: 0% to 90% non-condensing
Operating Temperature: 0-40 °C
Power Requirements Power Supply: Reversible redundant power fed by XVVRF8 (8-Bay Rackmount Frame)
Power Consumption: 20W
Voltage Range: 12VDC
