Theatrixx xVision Reversible 1:8 DMX Splitter / Isolator + Thru + RDM XLR5
Availability:In stock
Cat No.
52632
SKU
THEROPTO5
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
£712.80
£594.00
-
Free UK Delivery
On orders over £75
-
Price Match
Request here
Product Information

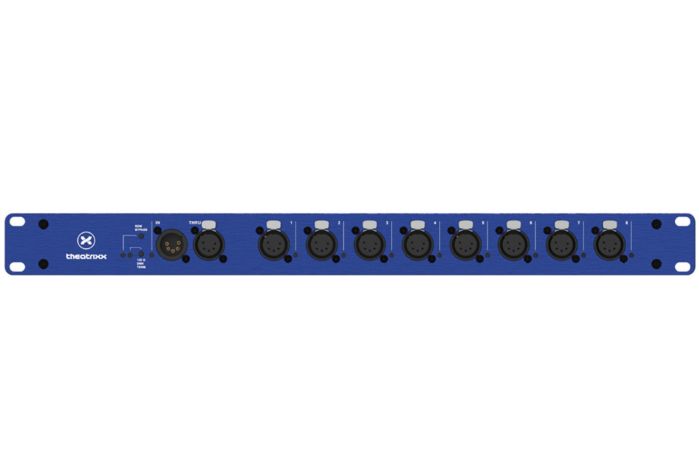

Theatrixx xVision Reversible 1:8 DMX Splitter / Isolator + Thru + RDM XLR5
The DMX/RDM splitter is a high quality, rugged distribution device for your DMX-512 and RDM signals.
Available in both traditional 1RU, 8 channel form factor, or as a modular, 3 channel unit compatible with Theatrixx’s Award-Winning 8-Bay Reversible Converter System, the product opens up interesting possibilities for high-universe count, high density configurations.
For maximal compatibility, the device is offered with a choice of 3-pin or 5-pin XLR connectors.
The input and each output are optically isolated up to 1000 volts, ensuring line failures are contained and do not take down the whole network.
RDM data is forwarded to each port, and a special “Timing Safe Mode” bypasses RDM transmission and boosts the DMX signal quality to ensure compatibility with older-generation fixtures.
It is also a handy troubleshooting feature that can be easily switched on or off at the push of a button.
Key Features:
- Comprehensive protection against severe electrical faults on DMX lines
- Switchable DMX Termination on input
- Timing-safe mode filters and retimes incoming signal
- Fully isolated input and output ports
- Multi-function LED status indicator for each port
- 5-Pin XLR Connectors
| Inputs/Outputs | Input: 5-pin XLR male Loop-Thru: 1 x 5-pin XLR female Isolated Outputs: 8 x 5-pin XLR female |
|---|---|
| Supported Signals | DMX Termination: Switchable on/off RDM Support: Yes RDM Bypass: Switchable on/off Port Isolation Voltage: Up to 1kV Timing Safe Mode: 33 FPS, 512 Slots, 88us Break, 44 us MAB |
| Environmental Specifications | Relative Humidity: 0% to 90% RH non-condensing Operating Temperature: 0-40 °C |
| Power Requirements | Power Supply: Built-in power supply PowerCon with loop thru Power Consumption: 15W Voltage Range: 100-240V, 50-60 Hz |
| Physical Specifications | Height: 43.43 mm (1.7 in) – 1 RU Depth: 178 mm (7 in) Width: 482.6 mm (19 in) Weight: 3.75 kg (8.25 lbs) |
