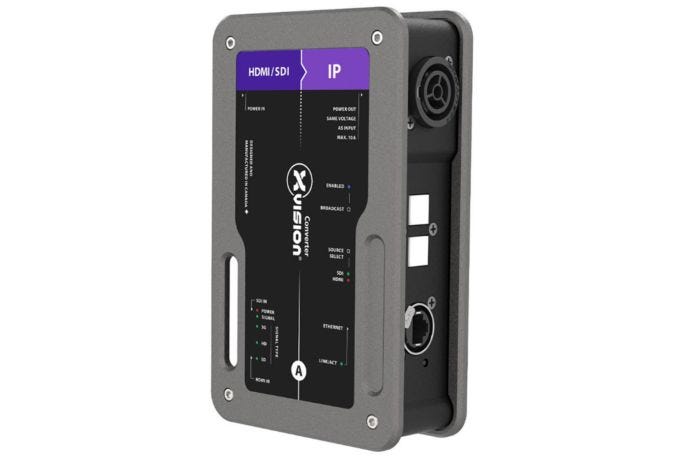

Theatrixx xVision HD Streaming Server HDMI1.2/3G-SDI to H.264
Availability:In stock
Cat No.
52602
SKU
THEXVVVDO2IP
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
£1,323.60
£1,103.00
-
Free UK Delivery
On orders over £75
-
Price Match
Request here
Product Information
Theatrixx xVision HD Streaming Server HDMI1.2/3G-SDI to H.264
Professional equipment in mission-critical applications is all about reliability and confidence. So Theatrixx started with a clean sheet, and built what might soon become your most trustworthy piece of equipment.
Introducing the world’s first video converters truly designed for the road. Video converters nowadays are used everywhere on professional A/V events, presentations, live shows and tours and often have a critical role.
Yet, they are often the weakest link in the signal chain. Low quality connectors, weak enclosure, external consumer-grade power supply, and overall barebones design that all contribute to a generally unreliable piece of equipment. Theatrixx wanted to change that, so they designed the xVision Video Converters.
- Effortlessly stream Full HD 1080p, H.264-encoded video to YouTube, Facebook Live
- Wide range of transport protocols supported
- One-button operation after configuration with broadcast-grade operation keys directly on unit
- Built in web server for configuration and control
- Native support for HDMI and 3G-SDI signals with built-in scaling engine
- Professional locking EtherCON connector for Ethernet connection
- xVision Converter Streaming Server
- Locking HDMI male to HDMI male (1m)
- AC Mains to PowerCON True1 cable
| Connections | Video Input: Switchable 1 x 3G/HD/SD SDI BNC & 1 x HDMI 1.2 type A with locking system Network Interface: 1 x Locking EtherCON 10/100 Mbps Ethernet Built-in web server for configuration and control, DHCP or static IP client Local control: Plug and play operation(2 buttons) |
|---|---|
| Supported Signals | Video Format Support: 1920x1080p 60/50/30/25/24fps, 1920x1080i 60/50fps, 1280x720p 60/50fps, 1280x1024p 60fps,1280x960p 60fps, 1024x768p 60fps, 800x600p 60fps, 720x480p 60fps, 720x480i 60fps, 640x480p 60fps, 720x576p 50fps, 720x57i 50fps Video Codec Support: H.264 (Baseline/Main/High) Configurable bit rate up to 10 Mbps (User selectable between Variable/Constant/Average Bit Rate) |
| Environmental Specifications | Relative Humidity: 0% to 90% non-condensing Operating Temperature: 0-40 °C Power Requirements Power Supply: Built-in power supply PowerCON True1 input PowerCON True1 output (loop-thru) Power Consumption: 15W Voltage Range: 100-240V, 50-60Hz (100-120V, 50-60Hz available with PowerCON/Edison Nema 5-15) Courtesy Outlet: Max 10A, same voltage as input |
| Physical and Dimensions | Height: 50 mm (1.97 in) Depth: 180 mm (7.08 in) Width: 107 mm (4.21 in) Weight: 1 kg (2.2 lbs) |
