Theatrixx xVision HD Converter Fibre SingleMode opticalCON DUO to 3G-SDI

Availability:In stock
Cat No.
52571
SKU
THEF2ST1S2
Theatrixx

Order Now - Usually available to despatch in 7-10 days

Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.

Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.

£768.00 £640.00
- +
Apple Pay
  • Free UK Delivery

    Free UK Delivery

    On orders over £75

  • Price Match

    Price Match

    Request here

Product Information

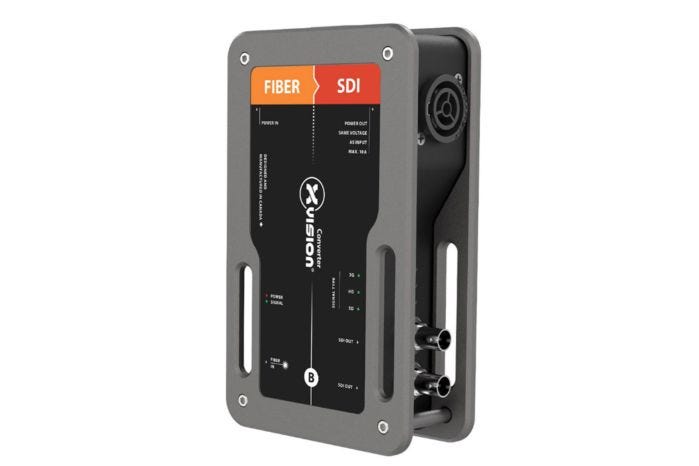

Theatrixx xVision HD Converter Fibre SingleMode opticalCON DUO to 3G-SDI

Professional equipment in mission-critical applications is all about reliability and confidence. So Theatrixx started with a clean sheet, and built what might soon become your most trustworthy piece of equipment.

Introducing the world’s first video converters truly designed for the road. Video converters nowadays are used everywhere on professional A/V events, presentations, live shows and tours and often have a critical role.

Yet, they are often the weakest link in the signal chain. Low quality connectors, weak enclosure, external consumer-grade power supply, and overall barebones design that all contribute to a generally unreliable piece of equipment. Theatrixx wanted to change that, so they designed the xVision Video Converters.

Key Features:

  • SingleMode opticalCON DUO
  • Integrated power supply with locking PowerCON True 1 Connector
  • Magnetic stacking system and non-skid rubber pad for table top application
  • Multiple mounting options: C-Clamp, wall-mount adapter, LCD mount adapter and belt adaptor
  • Plug-n-play operation; No dipswitches, buttons or menus to fumble with : It just works
  • Clear and ample status LED indicators for quick troubleshooting
  • xVision Converter Fiber to SDI True1
  • AC Mains to PowerCON True1 cable
Connections Video Input:
Singlemode
OpticalCON DUO
Video Output: 2 x 3G/HD/SD SDI BNC
Supported Signals Video Format Support: 3G-SDI Level A and B, HD-SDI, SD-SDI with embedded audio
SMPTE Standards: 425 M Level A & B, 424 M, 292 M, 259 M
Environmental Specifications Relative Humidity: 0% to 90% non-condensing
Operating Temperature: 0-40 °C
Power Requirements Power Supply:
Built-in power supply
PowerCON True1 input
PowerCON True1 output (loop-thru)
Power Consumption: 15W
Voltage Range:
100-240V, 50-60Hz
(100-120V, 50-60Hz available with PowerCON/Edison Nema 5-15)
Courtesy Outlet: Max 10A, same voltage as input
Physical Specifications Height: 50 mm (1.97 in)
Depth: 180 mm (7.08 in)
Width: 107 mm (4.21 in)
Weight: 1 kg (2.2 lbs)
