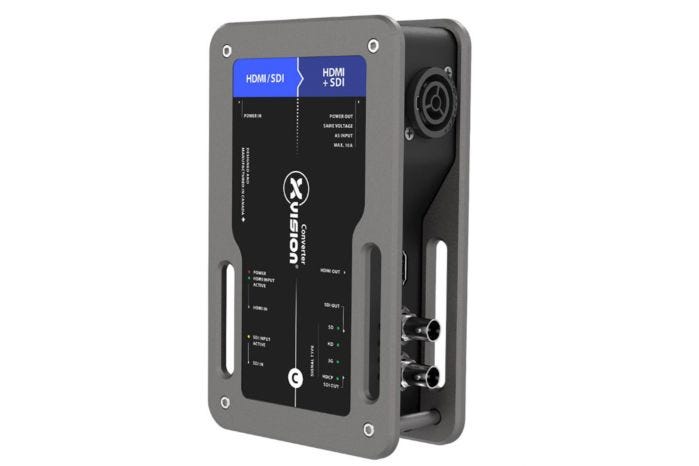

Theatrixx xVision HD Bidirectional Converter HDMI1.2/3G-SDI to SDI+HDMI

Availability:In stock
Cat No.
52580
SKU
THESXHT1
Theatrixx

Order Now - Usually available to despatch in 7-10 days

Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.

Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.

£896.40 £747.00
- +
Apple Pay
  • Free UK Delivery

    Free UK Delivery

    On orders over £75

  • Price Match

    Price Match

    Request here

Product Information

Theatrixx xVision HD Bidirectional Converter HDMI1.2/3G-SDI to SDI+HDMI

Professional equipment in mission-critical applications is all about reliability and confidence.

So Theatrixx started with a clean sheet, and built what might soon become your most trustworthy piece of equipment.

Introducing the world’s first video converters truly designed for the road. Video converters nowadays are used everywhere on professional A/V events, presentations, live shows and tours and often have a critical role.

Yet, they are often the weakest link in the signal chain. Low quality connectors, weak enclosure, external consumer-grade power supply, and overall barebones design that all contribute to a generally unreliable piece of equipment.

Theatrixx wanted to change that, so they designed the xVision Video Converters.

Key Features:

  • Integrated power supply with locking PowerCON True 1 Connector
  • Magnetic stacking system and non-skid rubber pad for table top application
  • Multiple mounting options: C-Clamp, wall-mount adapter, LCD mount adapter and belt adaptor
  • Video Input:  Auto switching between 1 x 3G/HD/SD SDI BNC & 1 x HDMI 1.2 type A
  • Video Output:  1 x HDMI 1.2 type A with locking system
  • Video Output:  2 x 3G/HD/SD SDI BNC
  • xVision Converter SDI/HDMI Bidirectional True1
  • Locking HDMI male to DVI male (1m)
  • AC Mains to PowerCON True1 cable
Connections Video Input: Auto switching between 1 x 3G/HD/SD SDI BNC & 1 x HDMI 1.2 type A with locking system
Video Output:
1 x HDMI 1.2 type A with locking system
2 x 3G/HD/SD SDI BNC
Input Priority: SDI input
Supported Signals 3G Format Support: 1080p50, 1080p59.94, 1080p60.
HD Format Support:
720p50, 720p59.94, 720p60, 1080i50,
1080i59.94, 1080i60, 1080p23.98,
1080PsF23.98, 1080p24, 1080PsF24, 1080p25,
1080PsF25, 1080p29.97, 1080PsF29.97,
1080p30, 1080PsF30
SD Format Support: 525/23.98 NTSC, 525/29.97 NTSC.625/25 PAL
SDI Video Sampling: 4:2:2 and 4:4:4
SDI Audio Sampling: Sample rate of 48 kHz and 24 bit
Environmental Specifications Relative Humidity: 0% to 90% non-condensing
Operating Temperature: 0-40 °C
Power Requirements Power Supply:
Built-in power supply
PowerCON True1 input
PowerCON True1 output (loop-thru)
Power Consumption: 15W
Voltage Range:
100-240V, 50-60Hz
(100-120V, 50-60Hz available with PowerCON/Edison Nema 5-15)
Courtesy Outlet: Max 10A, same voltage as input
