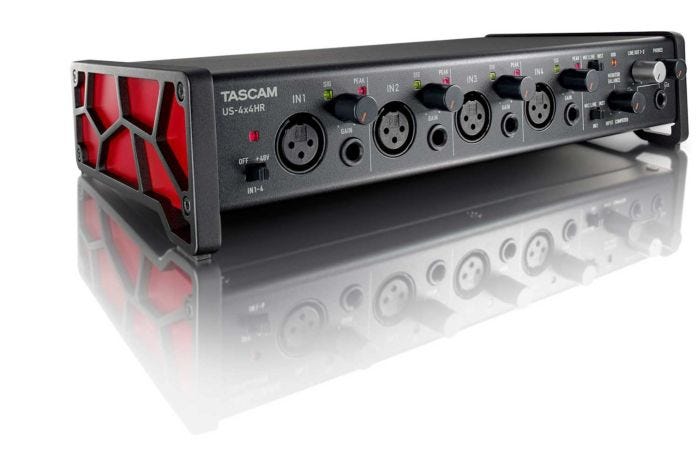

The US-4x4HR is equipped with 4 mic/line inputs with guitar input support on IN 1-2 plus 2 headphone outputs that can be put to use in various music/multi-media production environments such as vocal/guitar simultaneous recordings and multitrack recordings.
The unit is also equipped with a USB-C port to be easily powered by USB bus power.
High resolution reproduction in the US-HR series has been pursued based on TASCAM's policy to recreate sound as close to the original as possible. Therefore, the in-house developed Ultra HDDA mic preamp combined with a newly improved audio circuit delivers enhanced audio performance with the most transparent and low-noise sound.
The US-HR models come bundled with world-renowned software that will enhance the user's production workflow.
At the core of music production, Steinberg's Cubase LE/Cubasis LE 3 DAW is included, along IK Multimedia's Sample Tank SE, which comes free of charge with a massive 30 GB sound library encompassing more than 2,000 different musical instruments.
Key Features:
Product | US-4X4HR |
Sampling frequency | 44.1k/48k/88.2k/96k/176.4k/192k Hz |
Quantization bit rate | 24bit |
MIC IN | Connector XLR-3-31(1:GND, 2:HOT, 3:COLD), BALANCED Input impedance 2.2k ohms Maximum input level (GAIN:MIN) +9dBu (2.183Vrms) Gain 56dB |
INST IN | Connector 6.3mm(1/4")TS-jack(T:HOT, S:GND), UNBALANCED (When set to "INST" at MIC/LINE INST switch) Input impedance 1M ohms or more Maximum input level (GAIN:MIN) +10dBV(3.162Vrms) Gain 56dB |
LINE IN | Connector 6.3mm(1/4")TRS-jack(T:HOT, R:COLD, S:GND), BALANCED (When set to "MIC/LINE" at MIC/LINE INST switch) Input impedance 10k ohms Maximum input level (GAIN:MIN) +20dBu(7.746Vrms) Gain 56dB |
Analog audio outputs | Connector 6.3mm(1/4")TRS-jack(T:HOT, R:COLD, S:GND), BALANCED Output impedance 210 ohms Nominal output level +4dBu (1.228Vrms) Maximum output level +20dBu (7.746Vrms) |
PHONES | Connector 6.3mm(1/4") stereo phone jack Maximum output level 45mW+45mW or more (THD+N 0.1% or less, 32ohms loaded) |
MIDI IN /OUT | Connector Din 5-pin Format Standard MIDI format |
USB | Connector USB Type-C Format USB2.0 HIGH SPEED (480Mbps) |
Power | When connected PC USB bus powered AC Adapter (TASCAM PS-P1220E, included) When connected iOS/iPadOS AC Adapter (TASCAM PS-P1220E, included) |
Power consumption | 2.25W |
Weight | 3.53lb (1.6kg) |
