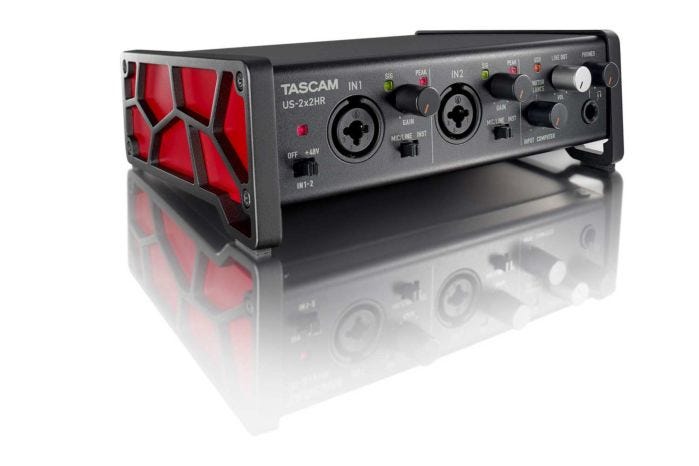

2 combo jack mic/line inputs with guitar input support audio interface with implemented MIDI IN/OUT ports.
Equipped loopback function and OBS support makes this interface applicable for podcasts and live streaming. The new US-2x2HR offers simple and intuitive operation plus sophisticated looks, a rich assortment of software bundles, and improved audio performance with 192 kHz support, thanks to the newly improved audio circuit.
Key Features:
Product | US-2X2HR |
Sampling frequency | 44.1k/48k/88.2k/96k/176.4k/192k Hz |
Quantization bit rate | 24bit |
MIC IN | Connector XLR-3-31(1:GND, 2:HOT, 3:COLD), BALANCED Input impedance 2.2k ohms Maximum input level (GAIN:MIN) +9dBu (2.183Vrms) Gain 56dB |
INST IN | Connector 6.3mm(1/4")TS-jack(T:HOT, S:GND), UNBALANCED (When set to "INST" at MIC/LINE INST switch) Input impedance 1M ohms or more Maximum input level (GAIN:MIN) +10dBV(3.162Vrms) Gain 56dB |
LINE IN | Connector 6.3mm(1/4")TRS-jack(T:HOT, R:COLD, S:GND), BALANCED (When set to "MIC/LINE" at MIC/LINE INST switch) Input impedance 10k ohms Maximum input level (GAIN:MIN) +20dBu(7.746Vrms) Gain 56dB |
Analog audio outputs | Connector 6.3mm(1/4")TRS-jack(T:HOT, R:COLD, S:GND), BALANCED Output impedance 210 ohms Nominal output level +4dBu (1.228Vrms) Maximum output level +20dBu (7.746Vrms) |
PHONES | Connector 6.3mm(1/4") stereo phone jack Maximum output level 18mW+18mW or more (THD+N 0.1% or less, 32ohms loaded) |
MIDI IN /OUT | Connector Din 5-pin Format Standard MIDI format |
USB | Connector USB Type-C Format USB2.0 HIGH SPEED (480Mbps) |
Power | When connected PC USB bus powered AC Adapter (TASCAM PS-P1220E, included) When connected iOS/iPadOS AC Adapter (TASCAM PS-P1220E, included) |
Power consumption | 1.75W |
Weight | 2.43lb (1.1kg) |
Mic amp EIN (equivalent input noise) | -128dBu or lower |
Frequency response | MIC / LINE IN 44.1k/48k Hz 20Hz to 20kHz, +0dB/-0.4dB(JEITA) 88.2k/96k Hz 20Hz to 40kHz, +0dB/-0.4dB(JEITA) LINE OUT 44.1k/48k Hz 20Hz to 40kHz, +0.2dB/-0.1dB(JEITA) 88.2k/96k Hz 20Hz to 40kHz, +0.2dB/-0.4dB(JEITA) |
THD + N | 0.0013% (MIC IN, 1kHz sine wave, -5dBFS input, GAIN knob at minimum, 20kHz SPCL LPF) 0.0011% (LINE IN, 1kHz sine wave, -5dBFS input, GAIN knob at minimum, 20kHz SPCL LPF) 0.0012% (LINE OUT, 1kHz sine wave, -4dBFS input, MONITOR knob at maximum, 20kHz SPCL LPF) |
S/N ratio | 110dB (MIC IN, GAIN knob at minimum, 20kHz SPCL LPF+A-Weight) 108dB (LINE IN, GAIN knob at minimum, 20kHz SPCL LPF+A-Weight)) 110dB (LINE OUT, MONITOR knob at maximum, 20kHz SPCL LPF+A-Weight) |
