Tascam US-1X2HR High Resolution Versatile USB Audio Interface
Availability:In stock
Cat No.
41679
SKU
US-1X2HR
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
£94.80
£79.00
-
Free UK Delivery
On orders over £75
-
Price Match
Request here
Product Information

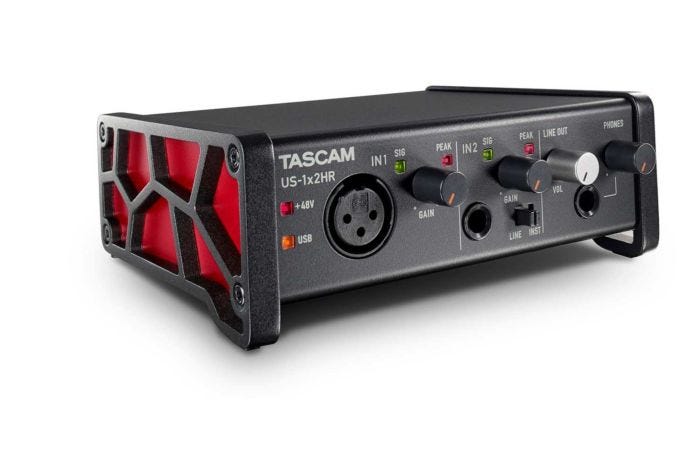

Tascam US-1X2HR High Resolution Versatile USB Audio Interface
1 XLR mic input and 1 TRS line/guitar input audio interface with 192 kHz support and USB-C bus power connection.
The included loopback function and OBS support makes this interface an excellent choice for podcasts and live streaming. The new US-1x2HR offers simple and intuitive operation, sophisticated looks, a rich assortment of software bundles, and improved audio performance, thanks to the newly enhanced audio circuit.
High resolution reproduction in the US-HR series has been pursued based on TASCAM's policy to recreate sound as close to the original as possible. Therefore, the in-house developed Ultra-HDDA mic preamp combined with a newly improved audio circuit delivers enhanced audio performance with the most transparent and low-noise sound.
The US-HR models come bundled with world-renowned software that will enhance the user's production workflow.
At the core of music production, Steinberg's Cubase LE/Cubasis LE 3 DAW is included, along IK Multimedia's Sample Tank SE, which comes free of charge with a massive 30 GB sound library encompassing more than 2,000 different musical instruments.
Key Features:
- 2-in/2-out USB audio interface
- Supports up to 24-bit/192 kHz audio formats
- Improved TASCAM driver with selectable buffer size from 4 samples provides low-latency and stability (Windows: TASCAM native driver)
- 1 XLR input equipped with Ultra-HDDA mic preamp and +48V phantom power
- 1 TRS line/inst. input
- RCA line L/R inputs
- RCA line L/R outputs
- 1 headphone output
- USB Type-C connection (USB Type-A to Type-C cable included)
- Powered by USB bus power
- Zero-latency direct monitoring
- Compatible with iPad and other iOS devices
- 2-in/2-out USB audio interface
- Supports up to 24-bit/192 kHz audio formats
- Improved TASCAM driver with selectable buffer size from 4 samples provides low-latency and stability (Windows: TASCAM native driver)
- 1 XLR input equipped with Ultra-HDDA mic preamp and +48V phantom power
- US-1x2HR
- USB cable (Type-A to Type-C)
- DAW software installation guide
- DAW plug-in software installation guide set
- Owner's manual（warranty card included)
| Product | US-1X2HR |
| Sampling frequency | 44.1k/48k/88.2k/96k/176.4k/192k Hz |
| Quantization bit rate | 24bit |
| MIC IN | Connector XLR-3-31(1:GND, 2:HOT, 3:COLD), BALANCED Input impedance 2.４k ohms Maximum input level (GAIN:MIN) +9dBu (2.183Vrms) Gain 58dB |
| LINE/INST IN(IN 2) |
LINE IN
|
| LINE OUT | Connector RCA pin-jack, UNBALANCED Output impedance 100 ohms Maximum output level +6dBV (1.995Vrms) |
| Analog audio outputs | Connector 6.3mm(1/4")TRS-jack(T：HOT, R：COLD, S：GND), BALANCED Output impedance 210 ohms Nominal output level +4dBu (1.228Vrms) Maximum output level +20dBu (7.746Vrms) |
| PHONES | Connector 6.3mm(1/4") stereo phone jack Maximum output level 18mW+18mW or more (THD+N 0.1% or less, 32ohms loaded) |
| USB | Connector USB Type-C Format USB2.0 HIGH SPEED (480Mbps) |
| Power | When connected PC USB bus powered When connected iOS USB power adapter (that can supply 5V and a current of at least 700mA)*1 External battery pack (that can supply 5V and a current of at least 700 mA)*2 |
| Power consumption | 1.8W |
| Weight | 623g |
