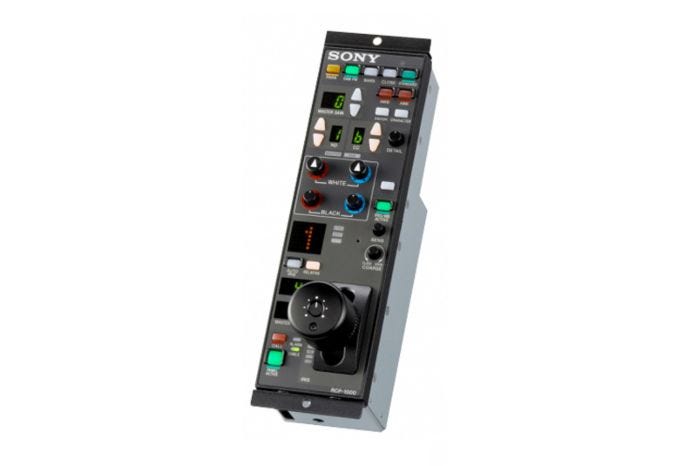

Simple remote control panel with joystick type control
Sony's RCP-1000 is a simple remote control panel with specialised basic operations. The iris and master black adjustment block employs a joystick type control. Up to six units can be mounted in a 19-inch EIA rack. Various settings can be configured according to the operation configuration and the frequency with which functions are used. RCP-1000 Key Features: Simple & Compact - This remote control panel is provided with the control functions required to perform the basic operations of cameras and enables the simple and accurate operation of various functions. IRIS/MB (master black) display window - The IRIS window displays the iris setting as an F number. If the lens is closed, "CLS" is displayed. The Master black display window displays the master black setting value. Direct control filters and master gain buttons - Easily access ND/CC filters as well as master gain control Customisable switch - Customer can assign any function to a spare switch. Compatible with a variety of control systems - HDC/HSC/BVP system camera users can build a multi-camera control system through the use of the CNU-700. In a system that uses CNU-700's, two CNUs can be used to control a camera system of up to 24 cameras. A system that uses a LAN can also be built by connecting to a LAN-compatible CCU.
Power supply - DC 10.5 V to 30 V Power consumption - 2 W Operating temperature - 5ºC to 40ºC (41ºF to 104ºF) Dimensions (W x H x D) (excluding protrusions) - 68 x 244 x 123.7mm (2 3/4 x 9 5/8 x 4 7/8 in) Mass - 1.1 kg (2 lb 9 oz)
