Sony MSU-1500 Master Setup Unit Multi Camera Remote Control Panel
Availability:In stock
Cat No.
9065
SKU
MSU-1500
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. If you require urgent collection and the product is showing in stock , please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. If you require urgent collection and the product is showing in stock , please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
£8,880.00
£7,400.00
-
Free UK Delivery
On orders over £250
-
Price Match
Request here
Product Information

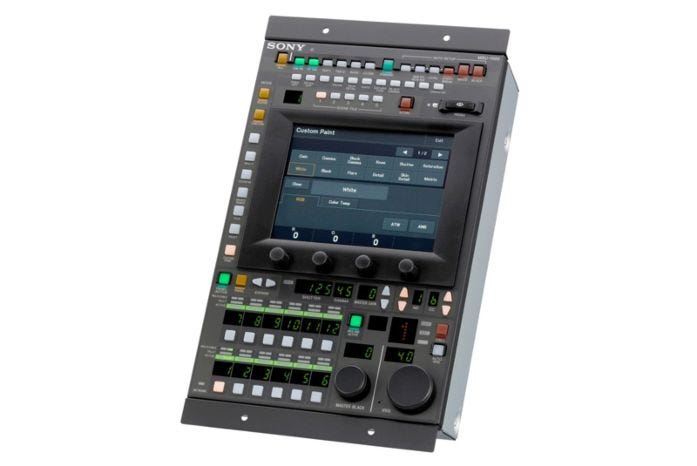

Sony MSU-1500 Master Setup Unit Multi Camera Remote Control Panel
The MSU-1500 master setup unit from Sony is a control panel for camera configuration and maintenance.
It is a compact, vertically-oriented device (as opposed to the MSU-1500, which has a larger, horizontally oriented panel), and can control multiple camera systems, using either the CNU-700 Camera Command Network Unit, or using a LAN, in which case up to 96 cameras can be controlled.
- Large and flexible system configuration
- Ethernet LAN capability
- Customisable Switch and menu
Power supply: AC 100 - 240 V. 50/60 Hz 0.35 A (Max.)
DC 10.5 - 17 V 1.2 A (Max.)
Operating temperature: 5 °C to 40 °C (41 °F to 104 °F)
Dimensions (W x H x D) (excluding protrusions): 204 × 354 × 67 mm (8 1/8 × 14 × 2 3/4 in.)
Mass: Approx. 3.6 kg (7 lb. 15 oz.)
Ethernet: RJ-45 8-pin (X1)
CCU/CNU: Multi-connector 8-pin, female (x1)
AUX: Multi-connector 8-pin, female (x1)
EXT I/O: D-sub 50-pin, female (x1)
AC IN: 3-pin (x1)
DC IN: 4-pin (x1)
