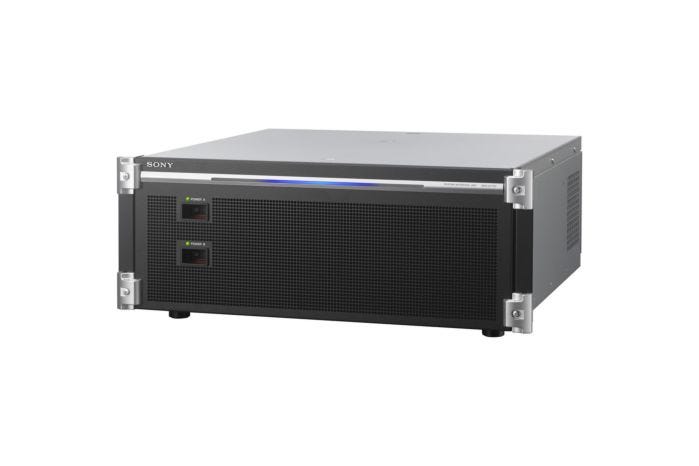

Sony MKS-X7700 System Interface Unit for ICP-X7000 Control Panel
Availability:In stock
Cat No.
24182
SKU
MKS-X7700
Fast & Reliable Availability
We distribute our stock across multiple warehouses to ensure quick processing and delivery.
Need something urgently for Click & Collect?
If an item shows as in stock, please call us on 01442 292929 or email sales@proav.co.uk to confirm availability before visiting.
Fast & Reliable Availability
We distribute our stock across multiple warehouses to ensure quick processing and delivery.
Need something urgently for Click & Collect?
If an item shows as in stock, please call us on 01442 292929 or email sales@proav.co.uk to confirm availability before visiting.
£4,932.00
£4,110.00
-
Free UK Delivery
On orders over £75
-
Price Match
Request here
Product Information
Sony MKS-X7700 System Interface Unit for ICP-X7000 Control Panel
The Sony MKS-X7700 System Interface Unit is used in the ICP-X7000 Control Panel.
It features serial tally and tally/GPI interfaces, along with a remote interface that supports various protocols. It also features six additional slots for adding more Tally/GPI outputs and serial remote interfaces.
Key Features:
- Features serial tally & GPI Interfaces
- Remote interface
- Six additional slots
- Easy to set-up & use
- Features serial tally & GPI Interfaces
- Remote interface
- Six additional slots
- Easy to set-up & use
- Sony MKS-X7700 System Interface Unit for ICP-X7000 Control Panel
Connections
LAN:
- 1 x RJ45, 1000BASE-T (MVS LAN)
- 1 x RJ45, 1000BASE-T (UTIL LAN)
Tally: Serial: 2 x 9-Pin D-Sub, RS-422A
TALLY/GPI: 2 x 37-Pin D-Sub, TTL level inputs (34 each)
Remote: 4 x 9-Pin D-Sub, RS-422A, various protocols
Bus: 1 x BNC, S-Bus protocol
Optional: Additional MKS-X7701 tally/GPI outputs and MKS-X7702 serial remote connection interface boards (a mixed configuration of four optional boards is available for six slots)
Power
Power Requirement: 100 to 240 VAC ±10%, 50/60 Hz (power cord not included)
Power Consumption: 0.5 to 1 A
Inrush Current: Maximum 90 A (at peak) / 20 A rms (240 VAC)
General
Operating Temperature: 41 to 104°F (5 to 40°C)
Storage Temperature: -4 to 140°F (-20 to 60°C)
Operating Humidity: 10 to 90% Non-condensing
Dimensions (W x H x D): 19.0 x 7.0 x 19.3" (482 x 176 x 486 mm)
Weight: 33.1 lb (15 kg) Fully loaded
