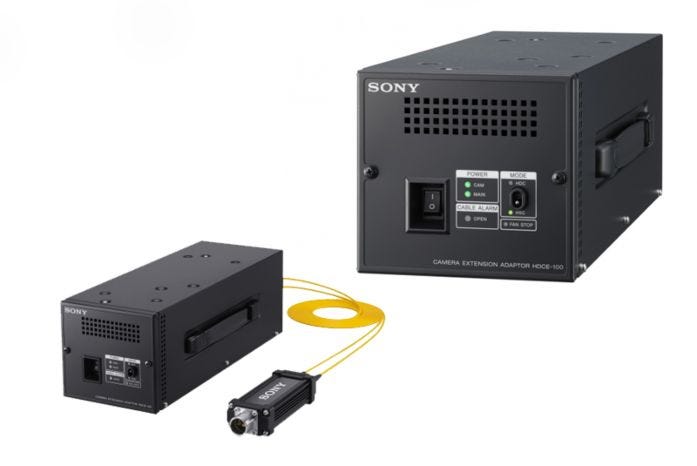

Sony HDCE-100/SM100 Single Mode Fibre Adapter with CCU Extension Adapter
Single Mode Fibre Adapter with CCU Extension Adapter from Sony
Single mode fibre adapter for HSC and HDC fibre cameras
The HDCE-100 camera extension adaptor can convert the SMPTE-311M fibre from HSC or HDC Series to single mode fibre for long distance transmissions. The HDCE-100 provides the power supply to the camera head, avoiding the need for local power supply in the field. The HDCE-100 can also supply power to the 4K live camera through a BPU-4000 baseband processor unit when a CCU is not used for the simple 4K live systems.
Long-distance HD production
Long-distance transmission over a single mode fibre cable.
Power Supply to the Camera Head available
The HDCE-100 provides power supply to the camera head through the SMPTE-311M fibre connection to avoid the need of DC local power supply.
Supply power to the 4K live camera through BPU-4000
Supply power to the 4K live camera through a BPU-4000 baseband processor unit when a CCU is not used for the simple 4K live system.
CCU extension adaptor
The HKCU-SM100 CCU extension adaptor works with the HDCE-100 camera extension adaptor to meet the fast-growing demand for an affordable total system solution for long-distance transmission with single mode fibre cable (SMF).
The HKCU-SM100 and the HDCE-100 are designed for easily converting the cable format between the camera head and base station Camera Control Unit (CCU) from SMPTE optical fibre to SMF. The HDCE-100 on its own extends the distance between camera head and CCU. With the HKCU-SM100, the maximum distance extends to 10 km.
In 4K camera systems, the HDCE-100 and HKCU-SM100 can be utilised with the BPU-4000 baseband processor unit to supply power to the CA-4000 camera system adaptor or HDC-4300 camera.
Easy conversion from optical fibre to single mode fibre
Easy conversion of the cable format between the camera head and base station Camera Control Unit (CCU) from SMPTE optical fibre to single mode fibre cable (SMF).
Long-distance transmission
Provides transmission on single mode fibre between CCU and 4K, HSC and HDC series cameras of up to 10 km.
Key Features:
- Easy to set-up and use
- Long distance operation
- Power supply to camera head
- Flexible and affordable
- Easy conversion
- Easy to set-up and use
- Long distance operation
- Power supply to camera head
- Flexible and affordable
- Easy conversion
Sony HDCE-100/SM100 Single Mode Fibre Adapter with CCU Extension Adapter
- 1 x HDCE-100 Single mode fibre adapter for HSC and HDC fibre cameras
- 1 x HKCU-SM100 CCU extension adaptor
HKCU-SM100 CCU extension adapter
General
Operating temperature: –10 °C to +40 °C (14 °F to 104 °F)
Storage temperature: –20 °C to +60 °C (–4 °F to +140 °F)
Mass: Approx. 0.3 kg (11 oz)
Dimensions (w/h/d):
- 55 × 35 × 191 mm
- (2 1/4 × 1 7/16 × 7 5/8 inches) (with protrusions)
Connectors
Connectors:
- Optical fiber connector (1)
- ST connector for single mode fiber (2)
Signals carried
CAMERA to CCU: Camera Video, Audio (INCOM, MIC)
CCU to CAMERA: Return video, Prompter video, Audio (INCOM, PGM)
