Product Information

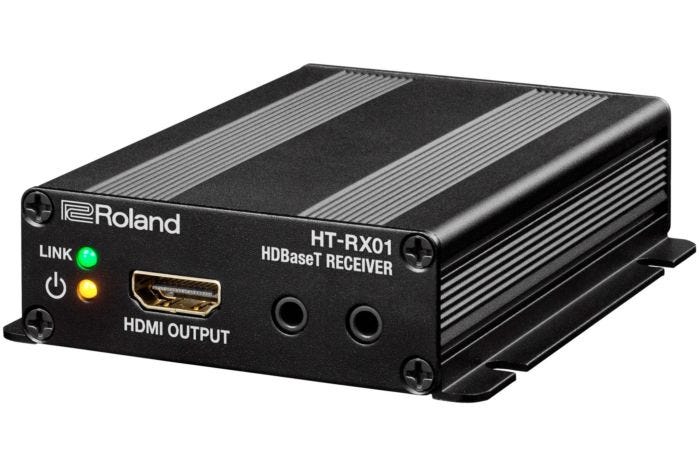

Roland HT-RX0 HDBaseT Receiver
HDBaseT-compatible receiver capable of transmitting HDMI signals up to 100 meters over an Ethernet cable.
Roland XS series output receiver
The HT-RX01 can be used as a receiver for the HDBaseT output from XS series multi-format matrix switchers. Using the RS-232C signal transmission function of the XS series lets you transmit RS-232C signals input to the XS series device along with video and audio signals. This can achieve audio/video transmission in school auditoriums, company conference halls, and other large spaces.
Long-distance HDMI transmission
Connecting an Ethernet cable to the HT-TX01 or HT-RX01 enables transmission of HDMI signals over a distances of up to 100 meters. This makes it possible to connect video cameras, Blu-ray decks, switchers, and other source equipment to LCD monitors, projectors, and other display devices. In addition to HDMI signals, RS-232C signals can also be transmitted, making it possible to send control signals along with video and audio reducing system wiring.
Key Features
- Converts HDBaseT signals to HDMI output
- Maximum 1080/60p and WUXGA support for HDMI
- HDCP compliant
- Capable of RS-232C transmission
- Converts HDBaseT signals to HDMI output
- Maximum 1080/60p and WUXGA support for HDMI
- HDCP compliant
- Capable of RS-232C transmission
- AC adaptor
- AC plugs (3 types)
- RS-232 conversion cable (2 m (6 ft 6 inches))
- ferrite core x 3
- Owner's Manual
| GENERAL | |
|---|---|
| Input Formats | 480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p, 640 x 480, 800 x 600, 1024 x 768, 1280 x 768, 1280 x 1024, 1366 x 768, 1400 x 1050, 1600 x 1200, 1920 x 1200 *RGB formats : Conforms to VESA DMT Version 1.0 Revision 11. *The maximum refresh rates of RGB is 75 Hz. (excluding 1600 x 1200 and 1920 x 1200. The refresh rate of these 2 is 60Hz) *1920 x 1200/60Hz : Reduced blanking |
| Audio Formats | The maximum is PCM 8ch, Dolby Digital, True HD DTS-HD Master Audio |
| Input Connectors | HT-TX01: HDMI x 1 : Type A 19 pins HT-RX01: RJ45 x 1 |
| Output Connectors | HT-TX01: RJ45 x 1 HT-RX01: HDMI x 1 : Type A 19 pins |
| Other Connectors | RS-232 x 1 : 9 pins D-sub type *when using additional RS-232 cable |
| Transmission distance | The maximum is 100m (328 ft) *To make connections, use a Cat 5e (Category 5e) or later shielded LAN cable. *The available distance depends on the quality of the LAN cable. |
| Operating temperature range | 0 to 40 degree C 32 to 104 degrees F |
| Operating temperature humidity | 10 to 85 % (no condensation) |
| Storage temperature range | 20 to 60 degree C 4 to 140 degrees F |
| Storage temperature humidity | 10 to 85 % (no condensation) |
| Current Draw | 2 A |
| Power Supply | AC Adaptor |
| Dimensions | 81 (W) x 93 (D) x 24 (H) mm 3-3/16 (W) x 3-11/16 (D) x 1 (H) inches |
| Weight excl. AC adaptor | 300 g 11 oz |
| Accessories | AC adaptor AC plugs (3 types) RS-232 conversion cable (2 m (6 ft 6 inches)) ferrite core x 3 Owner's Manual |
| SIZE AND WEIGHT | |
| Width | 81 mm 3-1/4 inches |
| Depth | 93 mm 3-11/16 inches |
| Height | 24 mm 1 inches |
| Weight | 300 g 0 lbs. 11 oz. |
