Vizrt TriCaster 2 Elite

Availability:In stock
Cat No.
39646
SKU
TC2E3RU
Vizrt

Order Now - Usually available to despatch in 5-7 days

Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.

Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.

£41,265.60 £34,388.00
- +
Apple Pay
  • Free UK Delivery

    Free UK Delivery

    On orders over £75

  • Price Match

    Price Match

    Request here

Product Information

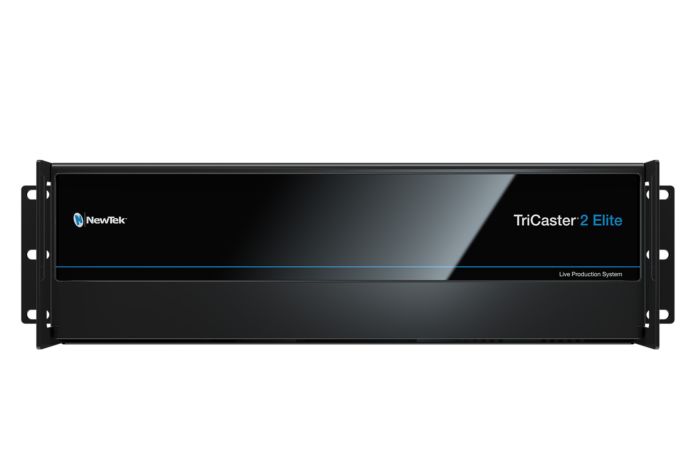

Vizrt TriCaster 2 Elite

TriCaster 2 Elite is a more flexible approach to digital media production. With TriCaster 2 Elite, content creators can integrate current and future resources into digital media production models that employ standard network infrastructures. TriCaster 2 Elite supports distributed operation with access to more media formats, enablement of more workflow possibilities, and providing more business opportunities.

TriCaster 2 Elite is the most transformative digital media production solution in the industry. Designed for content creators that require a future-ready production ecosystem that grows with their business, Newtek Tricaster Elite 2 provides media input-output flexibility to address the needs of media content producers beyond just broadcast video.

No other solution enables digital media workflows of the scale and scope of NewTek TriCaster 2 Elite. The agile software driven IP native technology and functionality provides the capability, connectivity, and control needed to take on any sort of digital media production. With flexible implementation, a more complete set of capabilities, and a unique capacity for distributed production. TriCaster 2 Elite removes the traditional boundaries of media formats, I/O, channels, and delivery.

We also have other Newtek Tricaster models available, take a look at Tricaster TC1 and TriCaster 1 Pro.


Complete Digital Media Production
Produce digital media content with multi-channel recording, multi-channel remote guest conferencing, upload of clips, multi-angle instant replay functionality, packaging of media content including multi-cam acquisition, compositing of sophisticated static and animated graphics, multimedia and visual effects, advanced audio processing, input and output of video in non-standard aspect ratios, frame rates, and resolutions for any platform and destination. Deliver with up to 8 3G or 2 UHD configurable mix outputs.

Limitless IP Processing
NDI® video, audio and data transmission over IP with near-zero latency and instant access to and seamless interchange with essentially unlimited IP sources from anywhere across the network in real time. Linking of multiple locations over IP to create sophisticated multi-system, multi-site workflows. Support for up to 32 video input sources and up to 48 output signals over IP, all independently configurable through software.

Interconnected Production
Inputs, outputs, and media assets are readily available and accessible by any user in any location on the network. Unrivaled, scalable capabilities include multi-source video processing, advanced audio, multimedia and visual effects, graphics integration, and multi-platform delivery output. Run shows using NewTek Live Story Creator production automation based on Microsoft Word® documents using teleprompter control with Tricaster TC2 Elite mixing and effects together with LiveGraphics. Deploy pushbutton automation using NewTek LivePanel™ for creation of software-based custom control panels to operate TriCaster 2 Elite from a desktop or mobile device- anywhere on the network.

Distributed Operation
Use NDI® technology to move video, audio, and data from one TriCaster 2 Elite system to another. Encompass all compatible systems, devices, and applications available to the network. Communicate with other systems and compatible edge devices over IP and become accessible for operation from any location on your network—even from multiple remote locations.

  • Multi-channel recording configuration
  • Real-time active recordings and streams to social media plus much more
  • Multi-angle instant replay functionality
  • Composite sophisticated static and animated graphics
  • Native Integration of NDI
  • Unrivaled scalable capabilities
  • Multi-format processing and support

Video Input 32 x Simultaneous external video in puts, support any combination of compatible sources in resolutions up to UHD at frame rates up to 60fps
Network Video Input 32 x IP inputs via NDI, resolution-independent with support for key and fill
SDI Video Input

8 x 3G/HD/SD-SDI connections supporting video input in any combination of standard formats, resolutions and frame rates

  • 1080p: 59.94, 50, 29.97, 25
  • 1080i: 59.94, 50
  • 720p: 59.94, 29.97, 25
  • 576i 50
  • 480i 59.94
PTZ Support for up to 32 simultaneous Pan-Tilt-Zoom cameras via serial and network connections
Conference Calling Support for multiple simultaneous video call inputs with Teams, Skype, Zoom, and Tencent software integration
Video Output Configurable for up to 8 independent HD or 2 UHD video mix outputs with simultaenous delivery via IP and SDI
Network Video Output

48 x IP outputs via NDI (HD and SD sessions only)

  • 8 x video mix outputs in resolutions up to 1080p at frame rates up to 60fps (1080p 59.94) or 2 x UHD video mix outputs at up to 60 frames per second (2160p 59.94)
  • 8 x direct IP source outputs via NDI translation of local SDI inputs or 2 x upconverted UHD outputs at up to 60 frames per second (2160p 59.94)
  • 4 x direct IP source outputs via NDI translation of media players, with support for embedded alpha channel
  • 15 x direct IP source outputs via NDI translation of media buffers with support for embedded alpha channel
  • 3 x Multiviewer outputs(if 3 monitors are connected).  4K support on 2x Multiviewer outputs while the 3rd outputs in HD
  • 1 x User Interface with dedicated multiviewer
  • 1 x teleprompter output (LiveStory Creator)
  • 8 x selectable IP outputs via internal NDI matrix router
SDI Video Output

8 x 3G/HD/SD-SDI connections, optionally configurable for:

  • 8 x independent 3G/HD/SD Video mix outputs
  • 2 x 4K UHD Video mix output via 3G-SDI quad-link grouping, supporting frame rates up to 60fps (2160p)
Stream Output 2 x resolution-independent streamingt video outputs, independently configurable
Multiviewer Output

4 x multiviewer outputs supporting standard display resolutions, using any combination of available connections

Mix/Effect Busses

8 x M/E buses supporting video re-enty

  • 1 x Mix/Effect channel per bus with support for up to 4 sources
  • 4 x KEY layers per bus
  • 9 x memory slots per bus
1 x PREVIZ configuration and preview bus
DSK Channels 4 x DSK Channels
Media

5 x Media Players

  • 4 x DDR
  • 1 x Sound
15 x media buffers
  • 10x animation buffers with GIF support
  • 5 x graphic buffers

Keyers

Integrated LiveMatte Chroma and Luma keying technology on all source channels and M/E Buses

  • 32 x input keyers
  • 4 x media player keyers
  • 8 x M/E keyers
  • 1 x PREVIZ Keyer
  • 15 x buffer keyers
COMPs Integrated video composition engine on the switcher and each M/E bus
Virtual Sets Integrated LiveSet technology with 30+ live virtual sets and box effects
Datalink Integrated DataLink technology enabling real-time, automated data input from internal and external sources
Macros Record, store, edit and automate commands and user-configured operation sequences
Recording

32 x total video recording channels

  • 8 x configurable M/E channels for HD or 2 x for UHD
  • 8 x physical SDI inputs
  • 4 x DDRs
  • 2 x Streaming Encoders
Storage 1 x 4TB SSD internal Storage
Grab Grab full resolution images from external video sources and outputs
Export Export video and image files to social media, FTP, local or external volumes
Audio

16 channels of audio pass through

Local Audio Input

8 x SDI embedded
1 x Balanced XLR stereo pair (Line)
3 x Balanced 1/4" stereo pairs (Line)

Local Audio Output 8 x SDI Embedded
1 x Balanced XLR Stereo pair
1 x Balanced 1/4" Stereo pair
1 x Stereo 1/4" (phones)
Network Audio

Native support for network audio input and output via NDI
Integrated support for Dante networking protocal from Audinate
Support for AES67 protocol via compatible WDM audio drivers

Supported Media Formats Video: AVI, DV, DVCPro, DVCProHD, FLV, F4V, H.263, H.264, MOV, MKV, MJPEG, MPEG, MP4, WMV, WebM
Image: PSD, PNG, TGA, BMP, JPEG, JPEG-XR, JPEG2000, EXR, RAW, TIF, WebP
Audio: AIFF, MP3, WAV
Monitoring Support for up to 4 Multiviewer displays with configurable workspaces and viewpoints
Signal Monitoring Integrated waveform and vectorscope, full field rate with digital calibration, color preview and support for ITU-R Rec. 709
Processing Video: Floating Point YCbCr 4:4:4:4
Audio: Floating Point, 96kHz
Throughput Latency 1-1.5 frames
Tally Support for hardware tally via HD15 gpi connector, network tally via NDI and Blackmagic Design SDI tally standard
Genlock Genlock input supporting SD or HD reference signals
MIDI Support for standard MIDI protocol
System Drive 250GB SSD
NIC 1 x 10 Gigabit SFP NIC
1 x 1 Gibabit NIC
System 19.0 x 5.25 x 19.57in (48.3 x 13.34 x 49.7cm)
15kg
