£15,434.40
£12,862.00
-
Free UK Delivery
On orders over £75
-
Price Match
Request here
Product Information

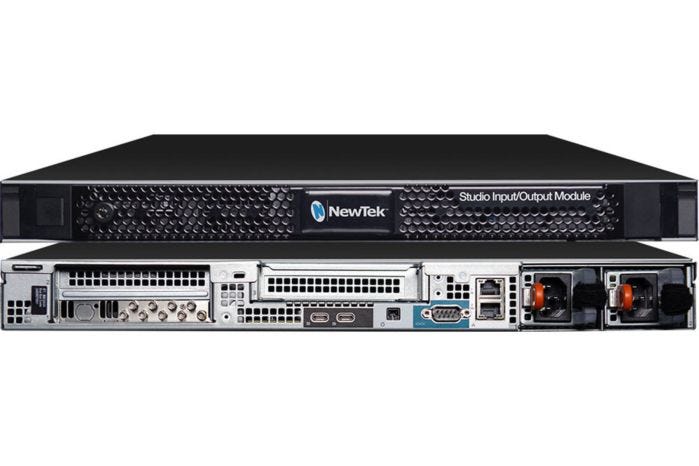

Vizrt NC2 Studio I/O Module
Using versatile functionality ranging from NDI, SDI to IP video conversion by I/O channel expansion, to 4K UHD connectivity and IP interoperability, NewTek NC2 Studio I/O Modules offer the flexibility to outfit studios, facilities, or infrastructures not only for their current production needs but also those of the future.
NC2 Studio I/O Module offers support for 12G-SDI and 10 Gigabit Ethernet connectivity; it seamlessly connects multiple video and audio formats including NDI®, SDI, and other IP formats. This solution is far more than conversion; offering SDI signal capture, media file playback, selectable multi-viewers, and professional video scopes.
Built for NDI
Supporting 10Gb Ethernet and built to support all the latest NDI 5 features.
Dynamic I/O Configuration
Configure as 8 x 3G-SDI , 2 x 12G-SDI with 4 x 3G-SDI, or a wide range between.
Adapts to any workflow
Offering IP flexibility while making use of existing SDI equipment and infrastructure.
Outfit your studio, facility, or pipeline according to your production needs now—and be ready as they change in the future. With versatile functionality ranging from 4K UHD 60p connectivity and IP interoperability, NewTek Connect solutions are designed to help you build the workflow you need with the quality you demand as easily and efficiently as possible.
NC2 Studio I/O gives producers and broadcasters tremendous power, with a unified interface and in a single, rack-mounted unit. Greater I/O flexibility, support for 12G-SDI devices, up to 8 channels of SDI recording, and 10 Gigabit Ethernet connectivity is not all – NewTek products are created with NDI® at their very core. NC2 Studio I/O perfectly integrates sources of all types to the flexibility of IP production and supports all the latest and upcoming features of the revolutionary NDI 5.
Essential Studio Functionality
Be confident in your presentation with local monitoring and management tools to include a dedicated multiviewer with selectable workspace layouts and customizable viewports, integrated waveform and vectorscope displays, and precision color correction capabilities.
Key Features:
- 8-Channel NDI Video I/O
- Simultaneously Record up to 8 SDI Inputs
- SDI, Streaming, and NDI Video
- Multiple I/O Configuration Options
- Supports 12G-SDI for UHD 4K up to 60p
- Works with NDI 5 Video Network
- 8-Channel NDI Video I/O
- Simultaneously Record up to 8 SDI Inputs
- SDI, Streaming, and NDI Video
- Multiple I/O Configuration Options
- Vizrt NC2 Studio I/O Module
| IP Video | H.264/MPEG-2/MJPEG: 640 x 480 to 3840 x 2160 at 23.98p, 24p, 25p, 29.97p, 30p, 50i, 50p, 59.94i, 59.94p, 60i, 60p Encoding |
|---|---|
| Video Connectors | 8 x BNC (12G-SDI / 3G-SDI / 6G-SDI / HD-SDI / SD-SDI) Input/Output 1 x USB Type-C (USB Video) Multiview Output |
| Other I/O | 1 x RJ45 10 GbE, NDI Input/Output 1 x RJ45 10/100/1000 Ethernet Input/Output |
| Video Standard Compliance | SMPTE 259M/292M/425M/425M-A/ST-2081-10/ST-2082-10 ITU -R BT.709 |
| Embedded Audio | SDI: 8-Channel |
| Power Connector | 2 x IEC C14 Input |
