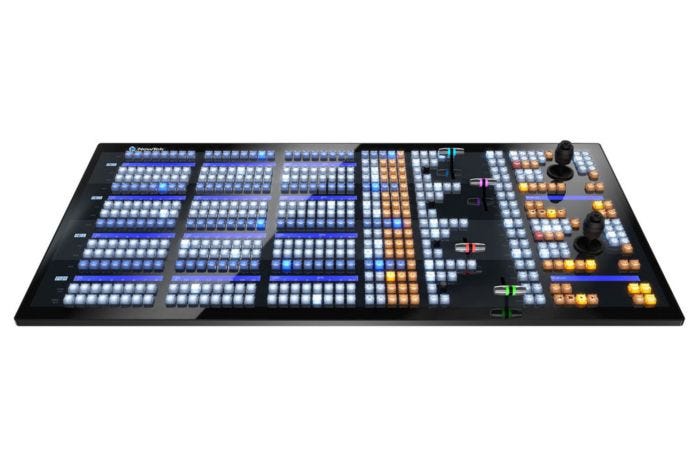

The Vizrt IP Series 4-Stripe Control Panel is the core of your real-time video operations, the tactile interface that connects you to the systems, devices, software, and sources that form your interconnected production environment.
The Vizrt IP Series 4 Stripe Control Panel has been meticulously crafted for performance and style, it combines the comprehensive functionality, precision controls, premium hardware mechanics, and ergonomic design that operators demand with the visually arresting aesthetic that executives covet. Paired with the Video Mix Engine over your network, the 4-Stripe Control Panel delivers consummate control of the modern video ecosystem and enables operators to approach even the most demanding productions with absolute confidence.
If you're looking for a similar Vizrt Control Panel, we also have the NewTek IP Series 2-Stripe Control Panel ready to order.
The Vizrt IP Series merges the power, efficiency, and flexibility of IP with Vizrt proven software-driven live production approach to define a new workflow paradigm: Interconnected Production.
Connecting, communicating, and sharing video and audio across the network using innovative NDI® technology, the Vizrt IP Series acts as a single, interconnected production environment. Inputs, outputs, and media assets are readily available and accessible by any user in any location on the network, freeing your storytelling from the limits imposed by conventional production technology and enabling workflows of unprecedented scale and scope.
Combining SDI compatibility, IP flexibility, and 4K UHD capacity, the Vizrt IP Series integrates into your current infrastructure, while priming your facility for the future. Its forward-thinking technology, seamless integration of turnkey capabilities, and modular architecture ensure that your workflow and productions keep pace with your vision for storytelling, even in the face of a rapidly changing video landscape.
Compatible with TriCaster TC1.
Key Features
Stripes | 4 x panel stripes independently configurable for switcher, M/E, PREVIZ, or matrix router operation Dynamic LCD crosspoint label displays Support for bank, layer, and key delegation Support for multi-engine control |
---|---|
Crosspoints | 72 x crosspoints per stripe (24 buttons with 3 delegate banks) |
Macro | Macro mode and number pads supporting attachment and activation of user-configured macrosDirect panel access to VMC1 Video Mix Engine COMP Bin presets |
Comps | Direct panel access to VMC1 Video Mix Engine COMP Bin presets |
Media | 2 x media player control keypads with player delegation and command buttons |
MEM | Direct panel access to VMC1 Video Mix Engine switcher and M/E MEMs |
T-Bar | 4 x multi-mode T-Bars (1 per stripe) with dynamically variable illumination and support for BKGD video layer and key layer delegation Fade Transition Fade to Black LiveSet™ Zoom |
Joystick | 2 x multi-mode joysticks (3-axis) supporting stripe, layer, and key delegation Position/Scale Rotate Crop LiveSet virtual camera control PTZ camera control Media player shuttle |
NIC | 1 Gigabit NIC |
VMC1 4S chassis with 25W PSU | 107.7 x 54.0 x 15.6 cm (42.4 x 21.26 x 6.13 in ) |
