IP and SDI Production:
3Play 3P1 is a team player—no matter what equipment makes up your production infrastructure.
From its natural chemistry with NewTek IP Series and TriCaster® TC1 production systems; to its native integration of NDI®, NewTek’s innovative Network Device Interface technology, and connection to the most prolific IP-based workflow in the industry; to its compatibility with conventional gear running baseband 3G-SDI or HD-SDI video with embedded or analog audio—3Play 3P1 has a championship-level connection with any workflow.
LivePanelTM Compatibility:
NewTek 3Play 3P1 natively supports control from the browser of any compatible networked device via NewTek LivePanelTM. Available as an optional purchase for 3Play 3P1, LivePanel includes a touchscreen-friendly software control panel and LivePanel Builder for custom user interfaces, with premium customization services also available through NewTek ProServ.
Intuitive Asset Management:
Exercise your clock management skills as you save valuable time logging, organizing, and retrieving content. From tagging events and clips with detailed metadata in a flash using your own custom coding system, to instantly filtering top plays by team, player, type, or period with the intelligent search engine, managing your assets with 3Play 3P1 is fast, efficient, and a fraction of the work from ingest to archive.
Coverage and Capture:
Take advantage of unprecedented freedom in planning your coverage, then capture every angle of the action to high-quality, full-resolution QuickTime® files. Supporting input both locally via SDI and over IP from any location on your network via NDI®, plus synchronized, continuous recording of 4 simultaneous video channels, 3Play 3P1 introduces game-changing possibilities for positioning cameras and acquiring content.
Replay and Play Review:
Present your audiences with the best view of cool, critical, and controversial plays—in real time, slow motion, or frame-by-frame—with 2 independent output channels deliverable both locally via SDI and over IP to any NDI® destination on your network. With outputs optionally combining for a switcher-style program-preview workflow, the ability to change angles while playback is progress, and support for video layering to include stacking live feeds and replay perspectives, 3Play 3P1 effortlessly accommodates your distinct brand of replay.
Social Media Integration:
Take over timelines and feeds without leaving the live environment, sharing real-time highlights and screencaps directly from 3Play 3P1 to your social media accounts. Upload the best shots and clips to Facebook, Twitter, YouTube, and more—complete with comments and hashtags—and provide instant updates for fans and followers on their computers and mobile devices.
Multi-Purpose Video Server:
Play to your strengths, using the built-in video server to cue, assemble, package, and deliver content in a variety of ways. With intuitive player controls, editing tools, selectable transitions, playlist effects, customizable settings, and presets, you have everything you need to go to work on game footage for instant replay, and turn out auto-advancing highlights, live-edited cut-ups, stacked sponsor blocks, and much more.
Next-Level Automation:
Experience new levels of efficiency and productivity with a comprehensive macro automation system that allows you to record, store, edit, and automate your favorite settings and custom command sequences. And with the flexibility to run macros from any combination of compatible control interfaces and support for cross-platform automation, you can outfit your workflow to available equipment and personnel.
Studio-Grade Video Tools:
Enhance your presentation with a collection of tools designed for network-style sports production right out of the box. From downstream keying to apply titles, graphics, stats, sponsor logos, and more; to custom animated transitions, motion graphics, and visual effects that up your production value; to manual and automatic color correction settings for real-time adjustments to variable lighting conditions, 3Play 3P1 is ready to realize your vision and rise to every challenge.

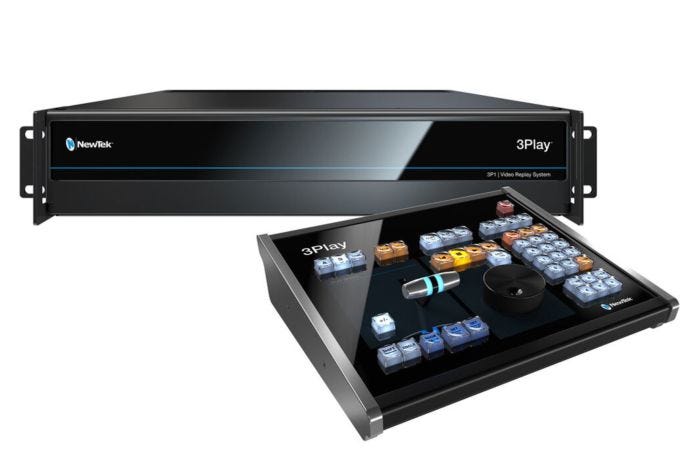

3Play 3P1 Control Panel:
Run every sports production with the confidence of a team captain. With a professional hardware panel included, 3Play 3P1 brings blazing speed and airtight control to the operator’s chair so you can read, react, and replay in record time.
User Experience:
Keep your eye on the ball with fully adjustable single-screen or multi-screen monitoring. With two configurable multiviewers, selectable workspace layouts, customizable viewports, multi-angle replay preview windows, visual indicators, language localization, and more, you can easily personalize the 3Play 3P1 environment to your preference.
Key Features
Video Input | 4 x simultaneous external video inputs, supporting any combination of compatible sources |
---|---|
Network Video Input | 4 x resolution-independent IP video inputs via NDI® |
SDI Video Input | 4 x 3G/HD/SD-SDI connections supporting video input in any combination of standard formats, resolutions, and frame rates 1080p: 59.94, 50, 29.97, 25, 24, 23.976 1080i: 59.94, 50 720p: 59.94, 50, 29.97, 25, 24, 23.976 576i 50 480i 59.94 |
Video Ouput | 2 x session-format video outputs, with simultaneous delivery via IP and SDI |
Network Video Output | 2 x session-format IP video outputs via NDI® |
SDI Video Output | 4 x 3G/HD/SD-SDI connections supporting redundant delivery of 2x session-format video outputs |
Multiviewer Output | 1 x DVI user interface with multiviewer 1 x HDMI multiviewer 1 x DisplayPort multiviewer |
Recording | 4 x simultaneous recording channels |
Recording Format | QuickTime® (XDCAM HD compatible, 4:2:2 encoding, 24-bit audio, with timecode)1 |
Storage | 3 x 3TB internal drive (capacity varies by format, resolution and file specification) |
Grab | Grab full-resolution, deinterlaced still images from inputs and outputs |
Export | Export video and image files to social media, FTP, local or external volumes, and network servers, with optional transcoding |
DSK | 1 x DSK channel per output, with independent source selection and transition |
Transitions | Supports custom transitions between output channels and playlist clips |
Telestration | Integrated NDI® Telestrator Pro technology supporting real-time telestration and transport control from compatible devices over the network |
Asset Management | Asset management system supporting metadata entry, tagging, filtering, organization, navigation, bookmarking, and integration with compatible MAM platforms |
Local Audio Input | 4 x SDI embedded 1 x Balanced XLR stereo pair (Line) 3 x Balanced 1/4” stereo pairs (Line) |
Network Audio | 4 x SDI embedded 1 x Balanced XLR stereo pair 1 x Balanced 1/4” stereo pair 1 x Stereo 1/4" (phones) |
Processing | Video: Floating Point YCbCr +A 4:4:4:4 Audio: Floating Point, 96 kHz |
Throuput Latency | ~1.0-1.5 frames |
A/V Standards | 3G-SDI video conforms to SMPTE 424M (Level A) HD-SDI video conforms to SMPTE 292M SD video conforms to SMPTE 259M and ITU-R BT.656 Analog audio levels conform to SMPTE RP-155 |
Genlock | Genlock input supporting SD (Bi-level) or HD (Tri-level) reference signals |
Macros | Record, store, edit, and automate commands and user-configured operation sequences, including support for cross-platform automation between supported systems |
AMP | Supports Advanced Media Protocol for remote control via compatible third-party production systems |
GPI | Supports GPI signals via JLCooper Electronics eBox GPI interface |
MIDI | Support for standard MIDI protocol enabling third-party device control |
System Drive | 120GB SSD |
NIC | 2 x 1 Gigabit NIC |
System Physical | 2RU chassis with 400W PSU and multi-tiered hardware and software fail-safe 19.0 x 3.5 x 19.57 in (48.3 x 8.9 x 49.7 cm) with rack ears attached ~26 lbs (~12 kg) |
