Marshall RS232 / RS422 Splitter Extender Box
Availability:In stock
Cat No.
46430
SKU
RS7-HR
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
£261.90
£218.25
-
Free UK Delivery
On orders over £75
-
Price Match
Request here
Product Information

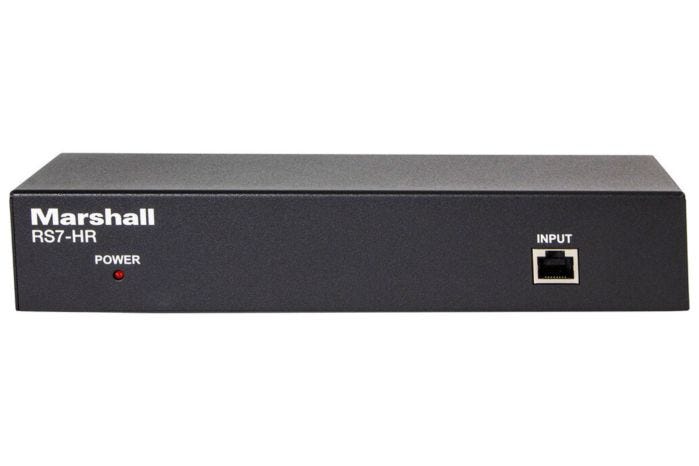

Marshall RS232 / RS422 Splitter Extender Box
Rack mountable RS232 / RS422 Distribution box for up to 7 Pan Tilt Zoom Cameras.
RS7-HR is compatible with CV610-U3/W-V2, CV620-BK4/WH4, CV612HT-4K, CV630-IP/IPW, CV630-NDI/NDIW, CV730-BK/WH, CV730-NDI/NDIW currently not compatible with CV610-UB.
Key Features:
- Splits one Cat (RJ45) control cable to 7 cameras via Home Run
- Easy and clean setup from Marshall Controllers (VS-PTC-IP, VS-PTC-200) and others
- Easy access dip switches to switch between RS232 and RS422
- Refresh button is used when any changes are made (add/remove, dip switch change)
- Rack mount ears provided (1 pair) for 1RU 19" rack mount and small ears (1 pair) for optional table or wall mount
- Splits one Cat (RJ45) control cable to 7 cameras via Home Run
- Easy and clean setup from Marshall Controllers (VS-PTC-IP, VS-PTC-200) and others
- Easy access dip switches to switch between RS232 and RS422
- Refresh button is used when any changes are made (add/remove, dip switch change)
- Marshall Electronics RS7-HR 1x7 RS-232/RS-485 Home-Run Splitter/Amplifier
- Power Adapter
- 1 RU Rackmount Kit
| Input Connector | 1 x RJ45 |
|---|---|
| Output Connectors | 7 x RJ45 |
| Serial Communication | RS-232 and RS-422 (via Switch) |
| Rack Mount | 1 RU |
| Cable Distance Supported | RS-232: Up to 656' / 200 m, over 2 x Cables RS-422: Up to 1969'/ 600 m, over 2 x Cables |
| Power Connector | 1 x 5 VDC Barrel |
