Product Information

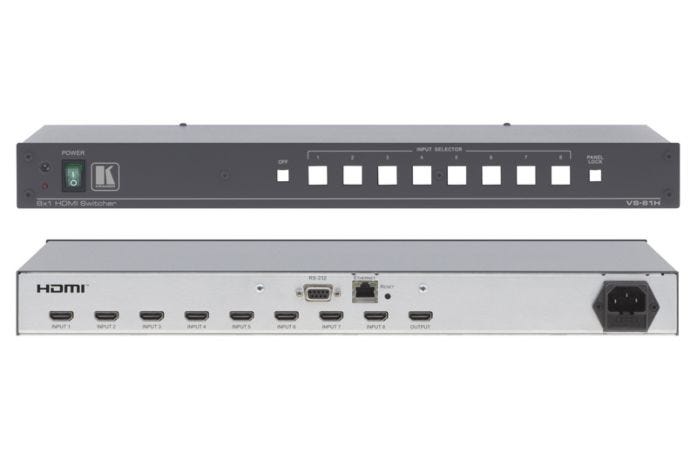

Kramer VS-81H HDMI Switcher
The VS-81H (previously VS-81HDMI) is a high performance switcher for HDMI signals. It reclocks and equalizes the signal and switches any one of the 8 inputs to a single HDMI output.
Maximum Data Rate - 1.65Gbps.
HDTV Compatible.
HDCP Compliant.
Enhanced EDID (Extended Display Identification Data) - Can capture an EDID setting from a device connected to the output and store it in a non-volatile memory. The user can recall this setting or a factory default EDID.
Dual Mode - PC and DVD Modes selectable by input.
Flexible Control Options - Front panel, IR Remote, RS-232 (K-Router™ Windows®-based software is included) & Ethernet (Windows®-based Ethernet Configuration Manager & Virtual Serial Port Manager is included).
Video Disconnect.
Front Panel Lockout.
Worldwide Power Supply - 100-240V AC.
Standard 19” Rack Mount Size - 1U. Rack “ears” included.
- Max Data Rate - 1.65Gbps.
- HDTV Compatible.
- Video Disconnect.
- Front Panel Control Lockout
VS-81H Switcher -
Inputs: 8 HDMI Connectors
Outputs: 1 HDMI Connector
Bandwidth: Supports up to 1.65Gbps bandwidth per graphic channel
Compliance with HDMI Standard: Supports HDMI 1.2 and HDCP
Resolution: Up to UXGA; 1080p
Power Source: 100-240V AC; 50/60Hz, 12VA
Controls: Front panel buttons, Infra-red remote control transmitter, RS-232, Ethernet
Dimensions: 19-inch (W), 7-inch (D), 1U (H)
Weight: 2.5 kg. (5.5 lbs) approx.
Accessories: Power cord
Options: Kramer HDMI Cables
