Kramer VS-62HA 6x2 4K UHD HDMI/Audio Automatic Matrix Switcher
Availability:In stock
Cat No.
19345
SKU
VS-62HA
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
£1,554.00
£1,295.00
-
Free UK Delivery
On orders over £75
-
Price Match
Request here
Product Information

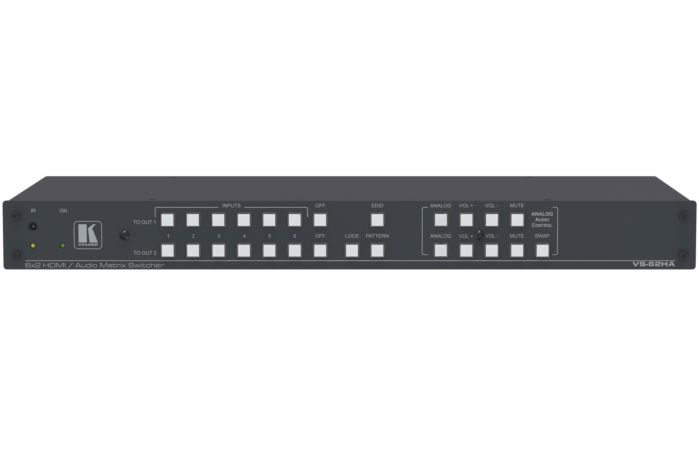

Kramer VS-62HA 6x2 4K UHD HDMI/Audio Automatic Matrix Switcher
A high quality, 4K@60 UHD (4:2:0) matrix switcher for HDMI and analog audio signals
The VS−62HA is a high quality, 4K@60 UHD (4:2:0) matrix switcher for HDMI and analog audio signals that employs advanced auto switching schemes and control options. It reclocks and equalizes the signals and can route any input to either or both outputs simultaneously.
Max. Resolution
Up to 4K UHD and WUXGA, including 4K @60Hz (4:2:0).
Max. Data Rate
8.91Gbps data rate (2.97Gbps per graphics channel).
HDMI Support
3D, Deep Color, x.v.Color™, Lip Sync , ARC, HEAC pass−through, Dolby® TrueHD, Dolby Digital Plus, DTS−HD®, and 7.1 multi−channel audio.
EDID Capture
Copies and stores the EDID from a display device.
Advanced Auto AV Switching Option
For either or both outputs, last−connected or priority switching, manual override mode to allow intuitive controller−free operation.
Audio Routing
Independent (breakaway) audio routing of embedded HDMI and analog audio content to two balanced audio ports.
Programmable Step-In over HDMI Functionality
When used in conjunction with compatible step−in devices, such as the SID−X3N and DIP−30 (using an HDMI cable that supports HEC, the HDMI Ethernet Channel).
Kramer reKlocking™ & Equalization Technology
Rebuilds the digital signal to travel longer distances.
Lock Button
Prevents unwanted tampering with the front panel.
Embedded Web Pages
Provide remote configuration and operation.
Flexible Control Options
Front panel buttons, IR remote (included), optional external remote IR receiver, RS−232, Ethernet, buttons and LED over contact closure, embedded Web server, Kramer Protocol 3000 support.
USB Port
For upgrading firmware.
Size
Standard 19" (1U). Rack "ears" included.
Applications:
- Conference rooms
- Education
- Hospitality
Key Features:
- Max Data Rate − 8.91Gbps
- Max Resolution − 4K
- Supports 4K @60Hz (4:2:0)
- Kramer reKlocking™ & Equalization Technology
- Supports Programmable Step−In over HDMI Functionality
- 3D Pass Through.
- EDID Capture
- Internal Pattern Generator
- Control − IR, RS−232, Ethernet, Contact Closure
- Advanced Auto Switching
- Embedded Web Pages
- Remote Button/LED Ports
- Independent (breakaway) Audio Routing of Digital and Analog Audio
- Size - 19” (1U) Rack "ears" included.
- Audio - E/B/U
- Max Data Rate − 8.91Gbps
- Max Resolution − 4K
- Supports 4K @60Hz (4:2:0)
- Kramer reKlocking™ & Equalization Technology
- Internal Pattern Generator
- Control − IR, RS−232, Ethernet, Contact Closure
- Independent (breakaway) Audio Routing of Digital and Analog Audio
