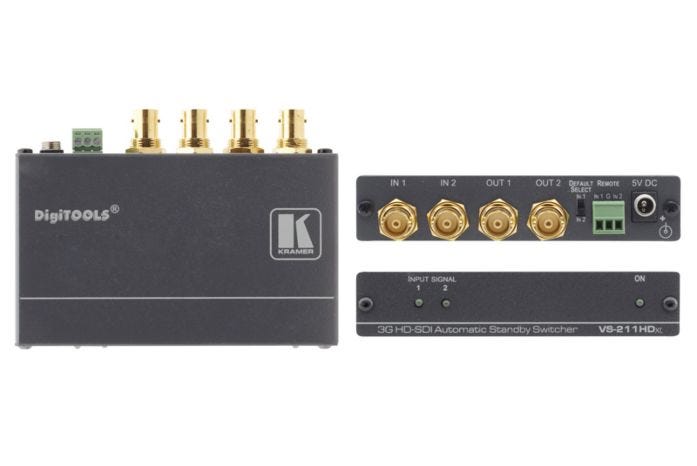

Kramer VS-211HDxl 2x1:2 3G HD-SDI Automatic Standby Switcher

Kramer VS-211HDxl 2x1:2 3G HD-SDI Automatic Standby Switcher

Kramer’s VS-211HDxl is a high-performance automatic switcher for signals up to 3G HD-SDI. When configured as a standby switcher, it switches to the secondary input when the primary input is lost.
VS-211HDxl Specs:

Max Data Rate - 3Gbps.
Multi-Standard Operation - SDI (SMPTE 259M/344M), HD-SDI (SMPTE 292M) & 3G HD-SDI (SMPTE 424M).
HDTV Compatible.
Control - Contact closure or automatic switching.
Automatic Standby Switching - Switches from the secondary input to the primary input when a primary signal is detected.
Primary Input - Selectable.
Active Input LED Indicators.
Compact DigiTOOLS™ - 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T rack adapter

• Max Data Rate - 3Gbps
• SDI, HD-SDI & 3G HD-SDI
• Contact Closure or automatic switching

VS-211HDxl Specs:

Inputs: 2 x 3G HD-SDI video on BNC connectors
Outputs: 2 x 3G HD-SDI video on BNC connectors
Max. Output Level: 800mVpp/75 Ω
Data Rate: Up to 2.97Gbps
Controls: Contact closure remote control, input default selection switch
Coupling : AV
Power Source: 5V DC, 400mA
Dimensions: 12cm x 7.2cm x 2.4cm (4.7” x 2.8” x 1.0”) W, D, H
Weight: 0.3kg (0.7lbs)
Accessories: Power supply, mounting bracket
Options: RK-3T 19” rack adapter
