Product Information

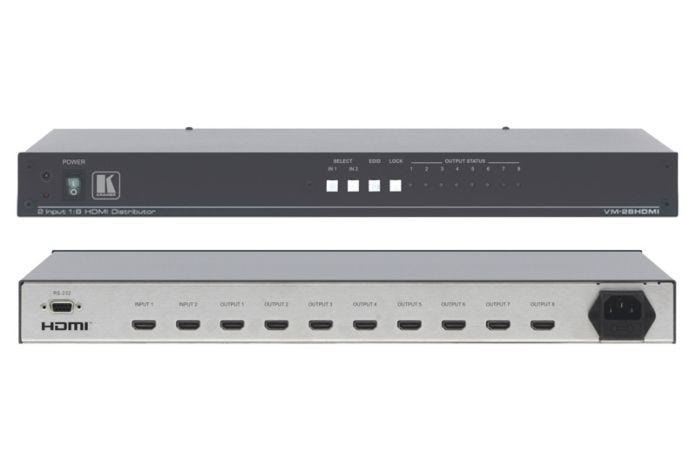

Kramer VM-28H 2x1:8 HDMI VDA
The VM-28HDMI is a distribution amplifier for HDMI signals. It re-clocks and equalizes one of two selectable input signals and distribute it to eight independent outputs.
Features
Max Data Rate - 1.65Gbps.
HDTV Compatible.
Kramer Re-Klocking™ & Equalization Technology - Rebuilds the digital signal integrity to travel longer distances.
HDCP Compliant.
Enhanced EDID (Extended Display Identification Data) - The unit can store and recall a default EDID setting in non-volatile memory from the output, allowing convenient and reliable connection to the source.
Active Output LED Indicators.
Worldwide Power Supply - 90-240V AC.
Standard 19” Rack Mount Size - 1U. Rack “ears” included.
- Max Data Rate - 1.65Gbps
- HDTV Compatible.
- Active Output LED Indicators.
- Slim, compact design
INPUTS: 2 on HDMI Connectors.
OUTPUTS: 8 on HDMI Connectors.
BANDWIDTH: Supports up to 1.65Gbps bandwidth per graphic channel.
CONTROLS: EDID, IN 1, IN 2 and, LOCK buttons, RS-232.
COMPLIANCE WITH HDMI STANDARD: Supports HDMI 1.1 and HDCP.
INDICATOR LEDs: OUTPUT STATUS LEDs
DIMENSIONS: 19 inch (W), 7 inch (D), 1U (H) rack mountable.
WEIGHT: 2.5kg (5.5lbs) approx.
POWER SOURCE: 90-240VAC 50/60Hz 27VA
OPTIONS: HDMI/HDMI male-to-male cables, Fiber Optic HDMI Cable (C-FOHM/FOHM)
ACCESSORIES: Power cord.
