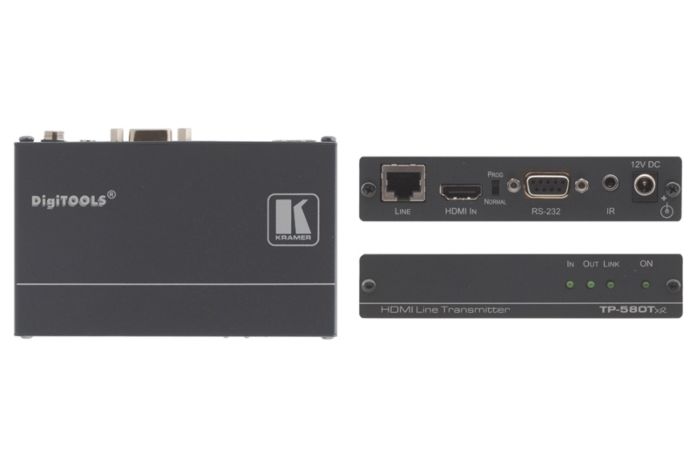

Kramer TP-580TXR HDMI, Bidirectional RS-232 & IR over Extended Range HDBaseT Twisted Pair Transmitter
Availability:In stock
Cat No.
9660
SKU
TP-580TXR
Product Information
Kramer HDMI, Bidirectional RS-232 & IR over Extended Range HDBaseT Twisted Pair Transmitter
The TP−580TXR is an extended range, HDBaseT twisted pair transmitter for HDMI, bidirectional RS−232 and IR signals. The TP−580TXR inputs HDMI, RS−232, and IR signals and converts them into an HDBaseT twisted pair signal that it transmits to a TP−580RXR receiver.
Key Features -
Max. Data Rate - 10.2Gbps (3.4Gbps per graphic channel).
HDTV Compatible.
HDCP Compliance.
HDBaseT™ Technology.
HDMI Support - Deep Color, x.v.Color™, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS−HD, CEC.
3D Pass-Through.
EDID PassThru - Passes EDID signals between the source and display.
2K & 4K Support.
Bidirectional RS-232 & IR Interface. - Commands and data can flow in both directions via the RS−232 interface, allowing status requests and remote control of the destination unit.
System Range - Up to 130m (430ft) normal mode; up to 180m (590ft) Ultra mode (1080p @60Hz @24bpp) when using BC−DGKat623 cables.
Cable - Requires shielded twisted pair (STP) cable. For optimum range and performance use, use Kramer's BC−DGKat524, BC−DGKat623 and BC−DGKat7a23 cables. Note that the transmission range depends on the signal resolution, graphics card and display used. The distance using non−Kramer CAT 5, CAT 6, and CAT 7 cables may not reach these ranges.
Indicators - Status LEDs for input, output, link and power.
Compact DigiTOOLS® - 3 units can be rack mounted side−by−side in a 1U rack space with the optional RK−3T universal rack adapter.
- Max. Data Rate - 10.2Gbps (3.4Gbps per graphic channel).
- Size - DigiTOOLSﾮ
INPUTS:1 HDMI connector.OUTPUTS:1 HDBaseT twisted pair RJ−45 connector.PORTS:1 IR on a 3.5mm mini jack, 1 RS−232 on a 9−pin D−sub connector.MAX. DATA RATE:10.2Gbps (3.4Gbps per graphic channel).RS-232 BAUD RATE:115200.COMPLIANCE WITH HDMI STANDARD:Supports HDMI and HDCP.POWER CONSUMPTION:12V DC, 295mA.OPERATING TEMPERATURE:0° to 40°C (32° to 104°F).STORAGE TEMPERATURE:−40° to +70°C (−40° to 158°F).HUMIDITY:10% to 90%, RHL non−condensing.DIMENSIONS:12cm x 7.6cm x 2.4cm (4.7" x 3" x 1.0") W, D, H.WEIGHT:0.6kg (1.4lbs).ACCESSORIES:Power supply.OPTIONS:RK−3T 19” rack mount.
