Kramer HDMI, Bidirectional RS-232 & IR over Extended Range HDBaseT Twisted Pair Receiver

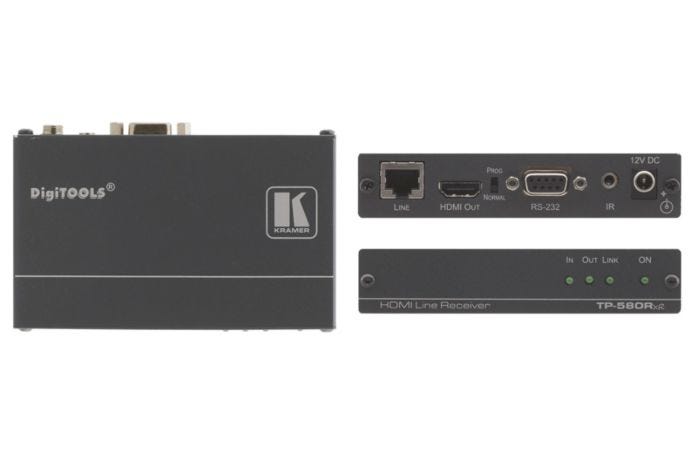

Kramer's TP−580RXR is an extended range, HDBaseT twisted pair receiver for HDMI, bidirectional RS−232 and IR signals. The TP−580RXR receives an HDBaseT twisted pair signal from the TP−580TXR and converts it back into HDMI, RS−232 and IR signals.
Key Features - Max. Data Rate - 10.2Gbps (3.4Gbps per graphic channel). HDTV Compatible. HDCP Compliance. HDBaseT™ Technology. HDMI Support - Deep Color, x.v.Color™, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS−HD, CEC. 3D Pass-Through. EDID PassThru - Passes EDID signals between the source and display. 2K & 4K Support. Bidirectional RS-232 & IR Interface. - Commands and data can flow in both directions via the RS−232 interface, allowing status requests and remote control of the destination unit. System Range - Up to 130m (430ft) normal mode; up to 180m (590ft) Ultra mode (1080p @60Hz @24bpp) when using BC−DGKat623 cables. Cable - For optimum range and performance use, use Kramer's BC−DGKat524, BC−DGKat623 and BC−DGKat7a23 cables. Note that the transmission range depends on the signal resolution, graphics card and display used. The distance using non−Kramer CAT 5, CAT 6, and CAT 7 cables may not reach these ranges. Indicators - Status LEDs for input, output, link and power. Compact DigiTOOLS® - 3 units can be rack mounted side−by−side in a 1U rack space with the optional RK−3T universal rack adapter.
INPUTS:1 HDBaseT twisted pair RJ−45 connector.OUTPUTS:1 HDMI connector.PORTS:1 IR on a 3.5mm mini jack, 1 RS−232 on a 9−pin D−sub connector.MAX. DATA RATE:10.2Gbps (3.4Gbps per graphic channel).RS-232 BAUD RATE:115200.COMPLIANCE WITH HDMI STANDARD:Supports HDMI and HDCP.POWER CONSUMPTION:12V DC, 500mA.OPERATING TEMPERATURE:0° to 40°C (32° to 104°F).STORAGE TEMPERATURE:−40° to +70°C (−40° to 158°F).HUMIDITY:10% to 90%, RHL non−condensing.DIMENSIONS:12cm x 7.6cm x 2.4cm (4.7" x 3" x 1.0") W, D, H.WEIGHT:0.6kg (1.4lbs).ACCESSORIES:Power supply.OPTIONS:RK−3T 19” rack mount.
