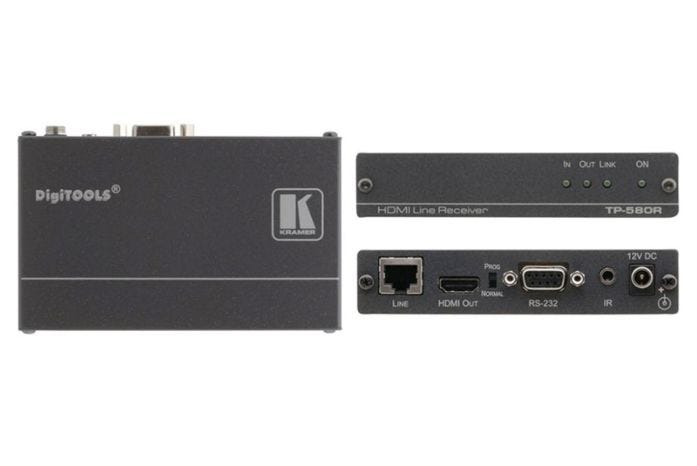

Kramer TP-580R HDMI, Bidirectional RS-232 & IR over HDBaseT Twisted Pair Receiver

Kramer TP-580R HDMI, Bidirectional RS-232 & IR over HDBaseT Twisted Pair Receiver

The TP−580R is a high−performance, HDBaseT twisted pair receiver for HDMI, bidirectional RS−232 and IR signals. The TP−580R receives an HDBaseT twisted pair signal from the TP−580T and converts it back into HDMI, RS−232 and IR signals.

Key Features -
Max. Data Rate - 10.2Gbps (3.4Gbps per graphic channel). HDTV Compatible.
HDCP Compliance.
HDBaseT™ Technology.
HDMI Support - Deep Color, x.v.Color™, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS−HD, CEC.
3D Pass-Through.
EDID PassThru - Passes EDID signals between the source and display.
2K & 4K Support.
Bidirectional RS-232 & IR Interface. - Commands and data can flow in both directions via the RS−232 interface, allowing status requests and remote control of the destination unit.
System Range - Up to 70m (230ft).
Cable - For optimum range and performance use, use Kramer's BC−DGKat524, BC−DGKat623 and BC−DGKat7a23 cables.
Indicators - Status LEDs for input, output, link and power.
Compact DigiTOOLS® - 3 units can be rack mounted side−by−side in a 1U rack space with the optional RK−3T universal rack adapter.

• Max. Data Rate - 10.2Gbps (3.4Gbps per graphic channel)
• Size - DigiTOOLSﾮ

INPUTS:1 HDBaseT twisted pair RJ−45 connector.OUTPUTS:1 HDMI connector.PORTS:1 IR on a 3.5mm mini jack, 1 RS−232 on a 9−pin D−sub connector.BANDWIDTH:10.2Gbps (3.4Gbps per graphic channel).RS-232 BAUD RATE:115200.COMPLIANCE WITH HDMI STANDARD:Supports HDMI and HDCP.POWER CONSUMPTION:12V DC, 430mA.OPERATING TEMPERATURE:0° to 40°C (32° to 104°F).STORAGE TEMPERATURE:−40° to +70°C (−40° to 158°F).HUMIDITY:10% to 90%, RHL non−condensing.DIMENSIONS:18.8cm x 11.4cm x 2.4cm (7.4" x 4.5" x 1.0") W, D, H.WEIGHT:0.6kg (1.4lbs).ACCESSORIES:Power supply.OPTIONS:RK−T2B 19” rack mount.
