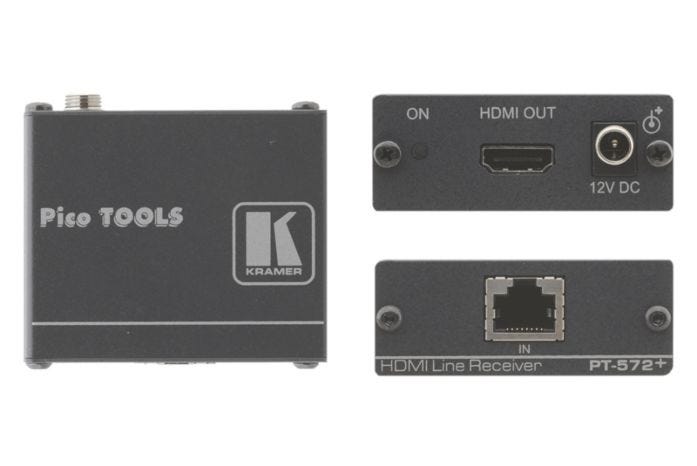

Kramer PT-572+ HDMI over Twisted Pair Receiver

Kramer PT-572+ HDMI over Twisted Pair Receiver

Kramer's PT-572+ is a twisted pair receiver for HDMI signals. The PT-571 converts an HDMI signal to a single twisted pair signal and the PT-572+ converts the twisted pair signal back to an HDMI signal.

Key Features:
Max. Data Rate - 1.65Gbps.
HDTV Compatible.

HDCP Compliant.
HDMI Support - HDMI (V.1.4 with 3D, Deep Color, x.v.Color™, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS-HD).
3D Pass-Through.
System Range - Up to 90m (295ft) at 1080i, or up to 30m (98ft) at 1080p on shielded BC-DGKat524 cable. Up to 90m (295ft) at 1080i, or up to 70m (230ft) at 1080p on shielded BC-DGKat623 cable. Up to 100m (330ft) at 1080i or up to 90m (295ft) at 1080p on shielded BC-DGKat723 cable.
Cable - Requires Shielded Twisted Pair (STP) cable. For optimum range and performance use, use Kramer's BC-DGKat524, BC-DGKat623 and BC-DGKat723 cables. Note that the transmission range depends on the signal resolution, graphics card and display used. The distance using non-Kramer CAT 5, CAT 6, and CAT 7 cables may not reach these ranges. Use only shielded cable where both ends of the shield are soldered to ground.

EDID PassThru - Passes EDID/HDCP signals from source to display.
Status LED - Lights red when receiving power only, orange when output and power are attached, and yellow when both an active input and output are attached.
Power Connect™ System - A single connection to the transmitter or the receiver powers the system when the devices are within 270ft (90m) of each other.
Ultra-Compact Pico TOOLS™ - 4 units can be rack mounted side-by-side in a 1U rack space with the optional RK-4PT rack adapter.

This product replaces the PT-572.

• Requires Shielded Twisted Pair Cable
• Max Data Rate - 1.65Gbps

PT-572+ Specifications -

Inputs: 1 RJ-45 connector
Outputs: 1 HDMI connector
Bandwidth: Supports up to 1.65Gbps bandwidth per graphic channel
Compliance with HDMI Standard: Supports HDMI and HDCP
Power Source: 12V DC, 250mA
Dimensions: 6.2cm x 5.2cm x 2.4cm (2.4" x 2.1" x 1") W, D, H
Weight: 0.14kg (0.3lbs)
Accessories: Power supply
Options: RK-4PT 19" rack adapter
