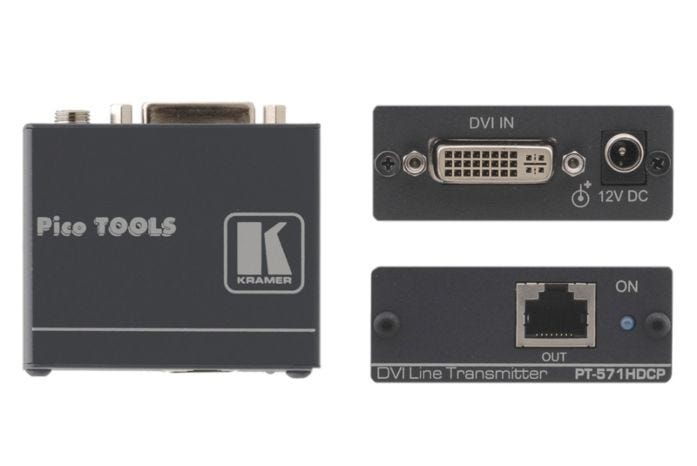

Kramer PT-571HDCP DVI over Twisted Pair Transmitter

Kramer PT-571HDCP DVI over Twisted Pair Transmitter


The Kramer PT-571HDCP is a twisted-pair transmitter for DVI signals. The PT-571HDCP converts the DVI to twisted pair signal and the PT-572HDCP converts the twisted pair signal back to a DVI signal.

Key Features:

Max. Data Rate - 1.65Gbps.
HDTV Compatible.
HDCP Compliant.
System Range - Up to 90m (295ft) at SXGA, or up to 30m (98ft) at UXGA on shielded BC-DGKat524 cable.
Up to 90m (295ft) at SXGA, or up to 70m (230ft) at UXGA on shielded BC-DGKat623 cable.
Up to 100m (330ft) at SXGA, or up to 80m (265ft) at UXGA on shielded BC-DGKat723 cable.
Cable - Requires shielded twisted pair (STP) cable. For optimum range and performance use, use Kramer's BC-DGKat524, BC-DGKat623 and BC-DGKat723 cables. Note that the transmission range depends on the signal resolution, graphics card and display used. The distance using non-Kramer CAT 5, CAT 6, and CAT 7 cables may not reach these ranges. Use only shielded cable where both ends of the shield are soldered to ground.
EDID PassThru - Passes EDID/HDCP signals from source to display.
Power Connect™ System - A single connection to the transmitter powers both units when the devices are within 150ft (50m) of each other.
Ultra-Compact PicoTOOLS™ - 4 units can be rack mounted side-by-side in a 1U rack space with the optional RK-4PT rack adapter.

• HDTV Compatible
• HDCP Compliant
• Power Connectﾙ System

PT-571HDCP Specs:
Inputs:
1 DVI, 1.2Vpp on a DVI Molex 24-pin female connector
Outputs:
1 CAT 5 OUT on an RJ-45 connector
Bandwidth:
Supports up to 1.65Gbps
Power Source:
12V DC, 250mA (transmitter and receiver together)
Dimensions:
6.2cm x 5.2cm x 2.4cm (2.4" x 2.1" x 1") W, D, H
Weight:
0.14kg (0.3lbs)
Accessories:
Power supply, mounting bracket
Options:
RK-4PT 19” rack adapter, Kramer DVI cables and BC-DGKat524 (CAT 5 24AWG) and BC-DGKat623 (CAT 6 23AWG) cables
