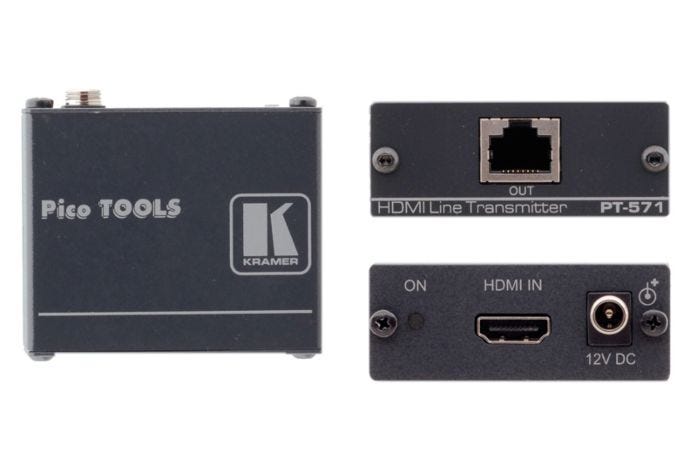

Kramer PT-571 HDMI Over Twisted Pair Transmitter

Kramer PT-571 HDMI Over Twisted Pair Transmitter

Kramer's PT-571 is a twisted pair transmitter for HDMI signals. It converts an HDMI signal to a single twisted pair signal. The PT-572 converts the twisted pair signal back to an HDMI signal.


Key Features:
Max. Data Rate - 1.65Gbps
HDTV Compatible
HDCP & HDMI 1.3 Compliant
System Range - Up to 90m (295ft) at 1080i, or up to 30m (98ft) at 100p on shielded BC-DGKat524 cable.
Up to 90m (295ft) at 1080i, or up to 70m (230ft) at 1080p on shielded BC-DGKat623 cable.
Up to 100m (330ft) at 1080i or up to 90m 9295ft) at 1080p on shielded BC-DGKat723 cable.
Cable - For optimum range and performance, use Kramer's BC-DGKat524, BC-DGKat623 and BC-DGKat723 cables.
Note that the transmission range depends on the signal resolution, graphics card and display used. The distance using non-Kramer CAT 5, CAT 6, and CAT 7 cables may not reach these range.
Passes EDID (Extended Display Identification Data)
Status LED - Lights red when receiving power only, orange when output and power are attached, and yellow when both an active input and output are attached.
Power Connect System - A single connection to the transmitter powers the receiver
Ultra-Compact Pico TOOLS - 4 units can be rack mounted side-by-side in a 1U rack space with the optional RK-4PT rack adapter.

The PT-571 replaces the TP-551N.

• Max Data Rate - 1.65Gbps

PT-571 Specs:

Inputs: 1 HDMI connector
Outputs: 1 RJ-45 connector
Bandwidth: Supports up to 1.65Gbps bandwidth per graphic channel
Compliance with HDMI Standard: Supports HDMI 1.3 and HDCP
Power Source: 12V DC, 250mA (transmitter and receiver together)
Dimensions: 6.2cm x 5.2cm x 2.4cm (2.4" x 2.1" x 1") W, D, H
Weight: 0.14kg (0.3lbs)
Accessories: Power Supply
Options: RK-4PT 19" rack adapter
