Product Information

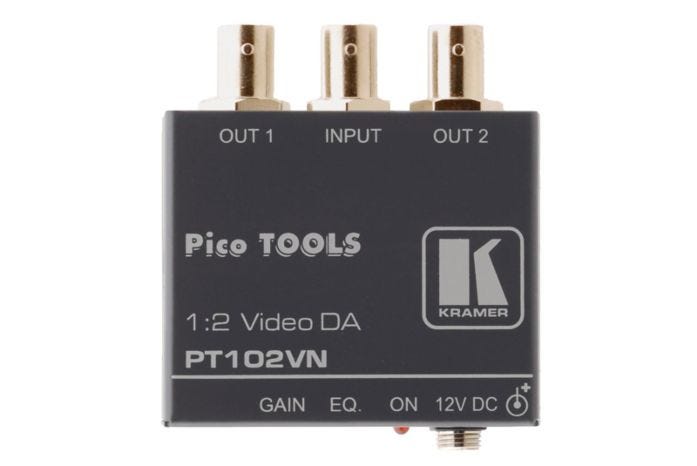

Kramer PT-102VN Composite Video Distribution Amplifier
The Kramer PT102VN is a high performance 1:2 distribution amplifier for composite video signals. It accepts a single input and distributes it to two identical outputs using BNC connectors. Video bandwidth of 430MHz ensures that the PT102V remains transparent even in the most critical applications.
INPUT: 1 video, 1Vpp/75? on a BNC connector.
OUTPUTS: 2 video, 1Vpp/75? on BNC connectors.
MAX. VIDEO OUTPUT: 2 Vpp.
VIDEO BANDWIDTH (-3dB): 430MHz.
DIFF. GAIN: 0.05%.
DIFF. PHASE: 0.05 Deg.
K-FACTOR: 0.05%.
S/N RATIO: 76.1 dB.
CONTROL: Gain: -1.2 to +6 dB, EQ.: 0 to +7.5dB @ 50MHz., via trimmers accessible from the front panel.
COUPLING: AC.
POWER SOURCE: 12 VDC, 30 mA.
DIMENSIONS: 6cm x 6.5cm x 2.5cm (2.36” x 2.56” x 1”, W, D, H.).
WEIGHT: 0.14 kg. (0.31 lbs.) approx.
ACCESSORIES: Power supply.
OPTIONS: Model VA-50P power supply with six 12VDC outlets.
