Product Information

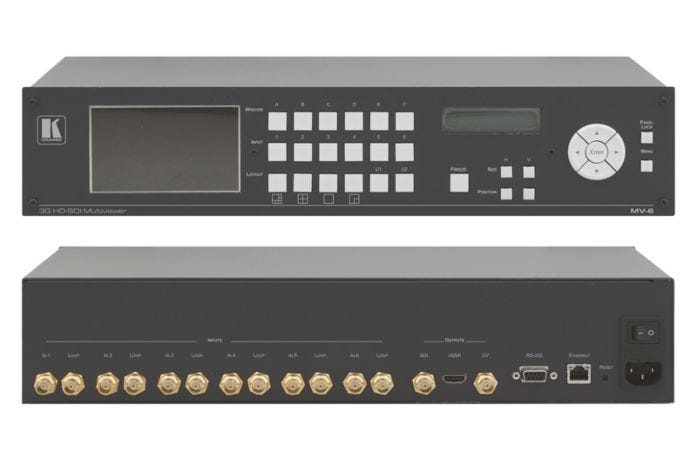

Kramer MV-6 3G HD-SDI Multiviewer
The Kramer MV−6 is a versatile, high−performance multiviewer for 3G HD−SDI video signals. The device can display up to six inputs in any combination and output the image in SDI, HDMI and CV formats. Both pre−programmed and customizable screen divisions are supported.
Key Features:
Max. Input Data Rate - 3Gbps.
HDTV Compatible.
Re-Clocking Looping Inputs.
Multi-Standard Operation - SDI (SMPTE 259M), HD−SDI (SMPTE 292M) and 3G HD−SDI (SMPTE 424M).
Multi-Video Output Formats - 3G HD−SDI (SMPTE 424M), HDMI and composite, scaling, refresh rate and video standard conversion.
Front Panel Preview Screen - 16:9 4.3in color LCD displaying the output of the unit.
Kramer re-Klocking™ & Equalization Technology - Rebuilds the digital signal to travel longer distances.
Flexible Control Options - Front panel with 2−row LCD, IR remote, Ethernet & RS−232 (supplied with PC control software).
Screen Handling Buttons - Freeze, size, position, and 4 pre−programmed and 2 user−definable layouts.
Worldwide Power Supply - 100−240V AC.
Standard 19” Rack Mount Size - 2U. Rack "ears" included.
- Max. Data Rate - 3Gbps
- Multi-Standard - SDI, HD-SDI, 3G HD-SDI
- Control - IR, Ethernet & RS-232
MV-6 Specs:
Inputs:
6 SDI, HD−SDI, 3G HD−SDI on BNC connectors.
Outputs:
1 HDMI, 1 CV on a BNC connector, 1 SDI, HD−SDI, 3G HD−SDI on BNC connector.
Max. Input Level:
800mVpp/75Ω.
Max. Output Level:
800mVpp/75Ω.
Max. Data Rate:
Up to 2.97Gbps.
Controls:
Front−panel, RS−232, Ethernet.
Front Panel Display:
4.3" TFT color LCD panel.
Power Source:
Universal, 100−240V AC, 50/60Hz, 35VA.
Operating Temperature:
0° to +55°C (32° to 131°F).
Storage Temperature:
−45° to +72°C (−49° to 162°F).
Humidity:
10% to 90%, RHL non−condensing.
Dimensions:
19" x 7.4" x 2U (W, D, H) rack mountable.
Weight:
3.1kg (6.83lbs) approx.
Accessories:
Power cord, rack "ears".
